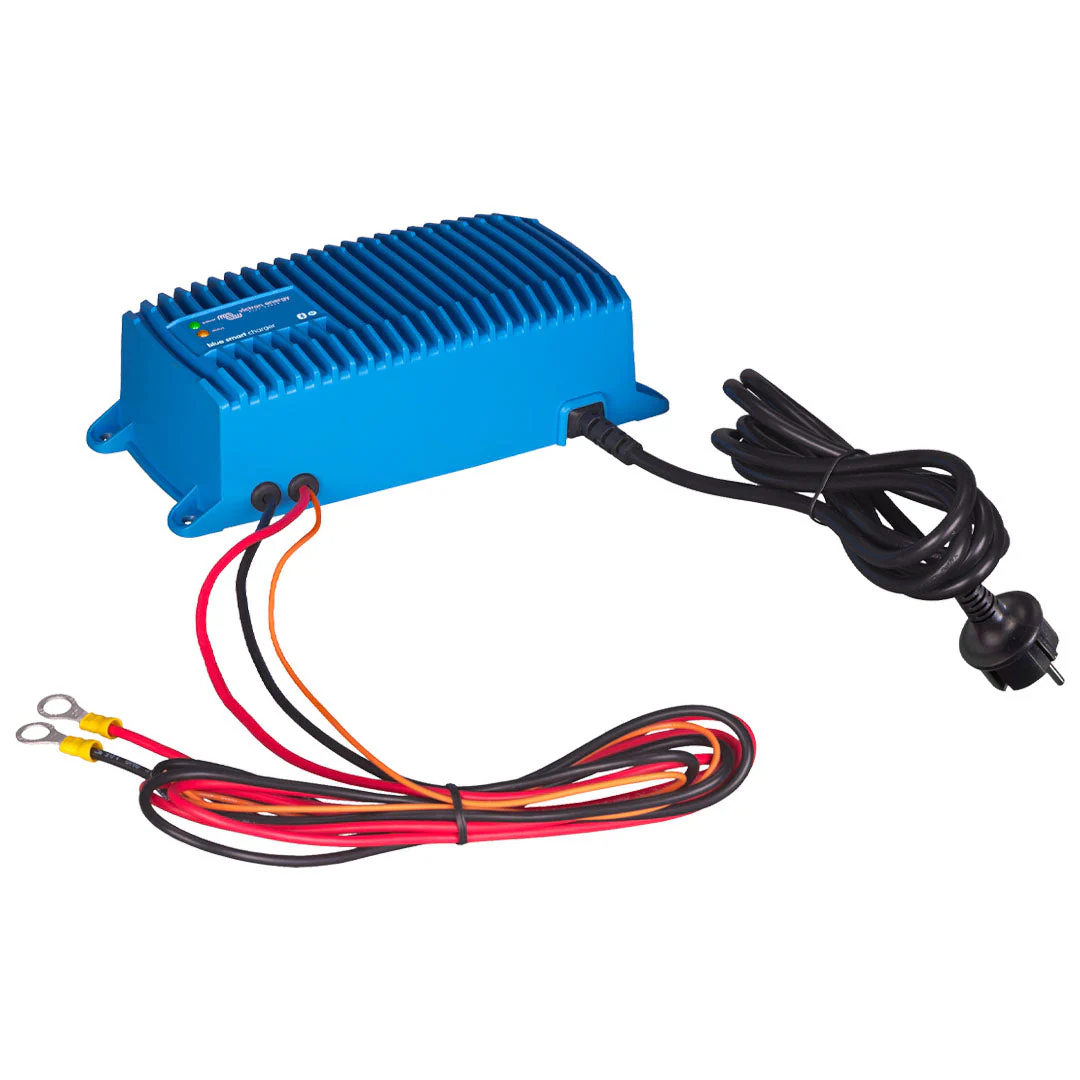

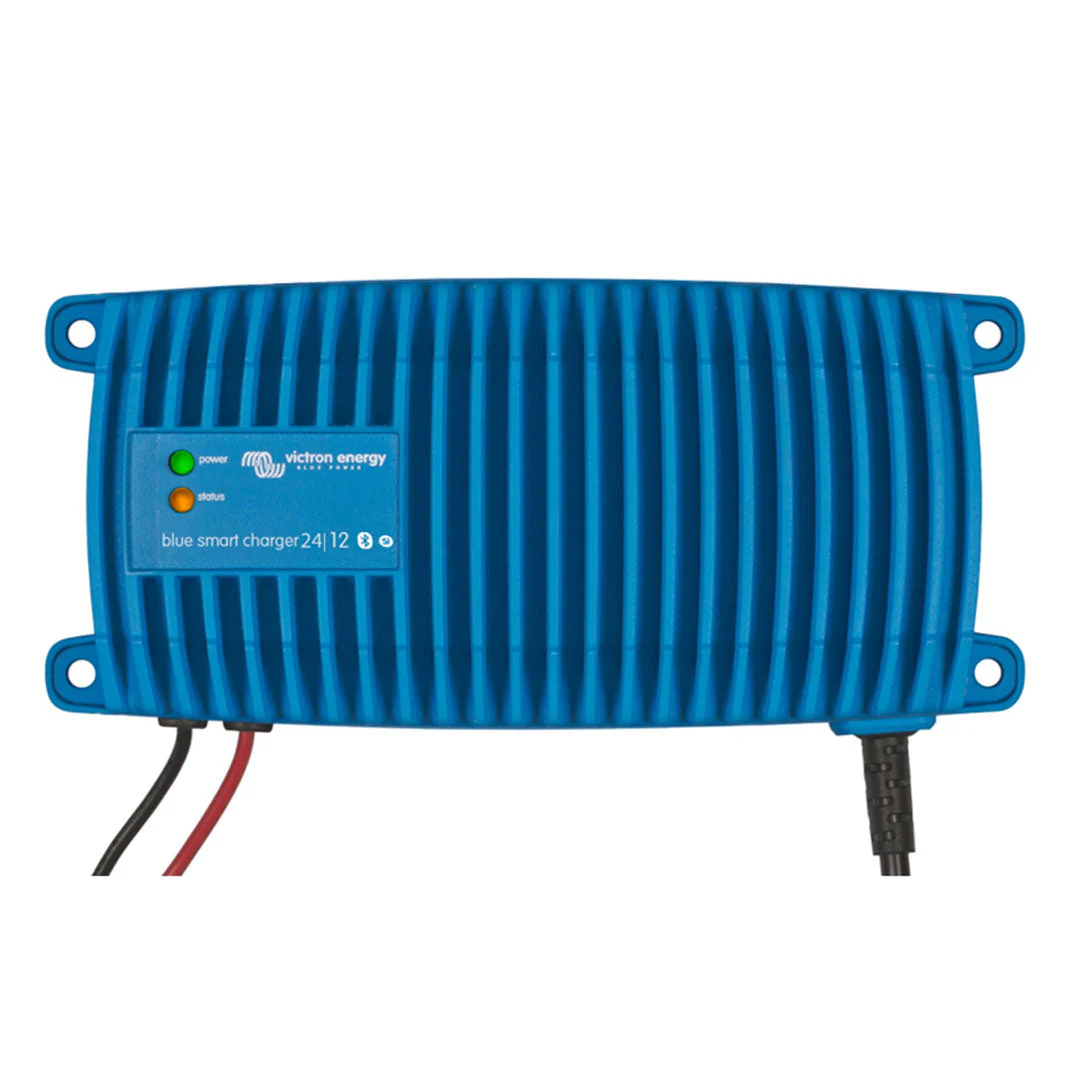

Victron Blue Smart IP67 Charger 24/12
📝 Victron Blue Smart IP67 Charger 24/12
The Victron Blue Smart IP67 24/12 Battery Charger delivers rugged durability, smart Bluetooth control, and precision charging for 24v systems. Perfect for marine, off-grid, RV, and industrial setups, it combines cutting-edge power management with industry-leading protection and reliability.
⭐ ESSENTIAL BENEFITS
• IP67 waterproof and shockproof design – fully sealed against water, dust, and chemical ingress
• Bluetooth Smart enabled – control and monitor performance via the VictronConnect app
• Adaptive 5-step charging algorithm – automatically adjusts for optimum battery life and performance
• Storage mode – prevents overcharging and corrosion during periods of inactivity
• LiFePO₄ compatible – ideal for modern lithium systems with auto under-voltage reset
• Exceptional efficiency (≥92%) – reduces wasted energy and heat output
• Thermal protection – safely adjusts current at high ambient temperatures up to 60°C
• Ignition protected – suitable for marine and automotive installations
⚙️ ADVANCED CHARGING TECHNOLOGY
The adaptive 5-step algorithm (Bulk, Absorption, Float, Storage, Recondition) tailors charging to your battery’s needs in real time.
After 24 hours of inactivity, storage mode activates, lowering float voltage to minimise corrosion and electrolyte loss.
It also includes recovery for deeply discharged batteries and supports LiFePO₄ systems with simplified charging logic for enhanced safety.

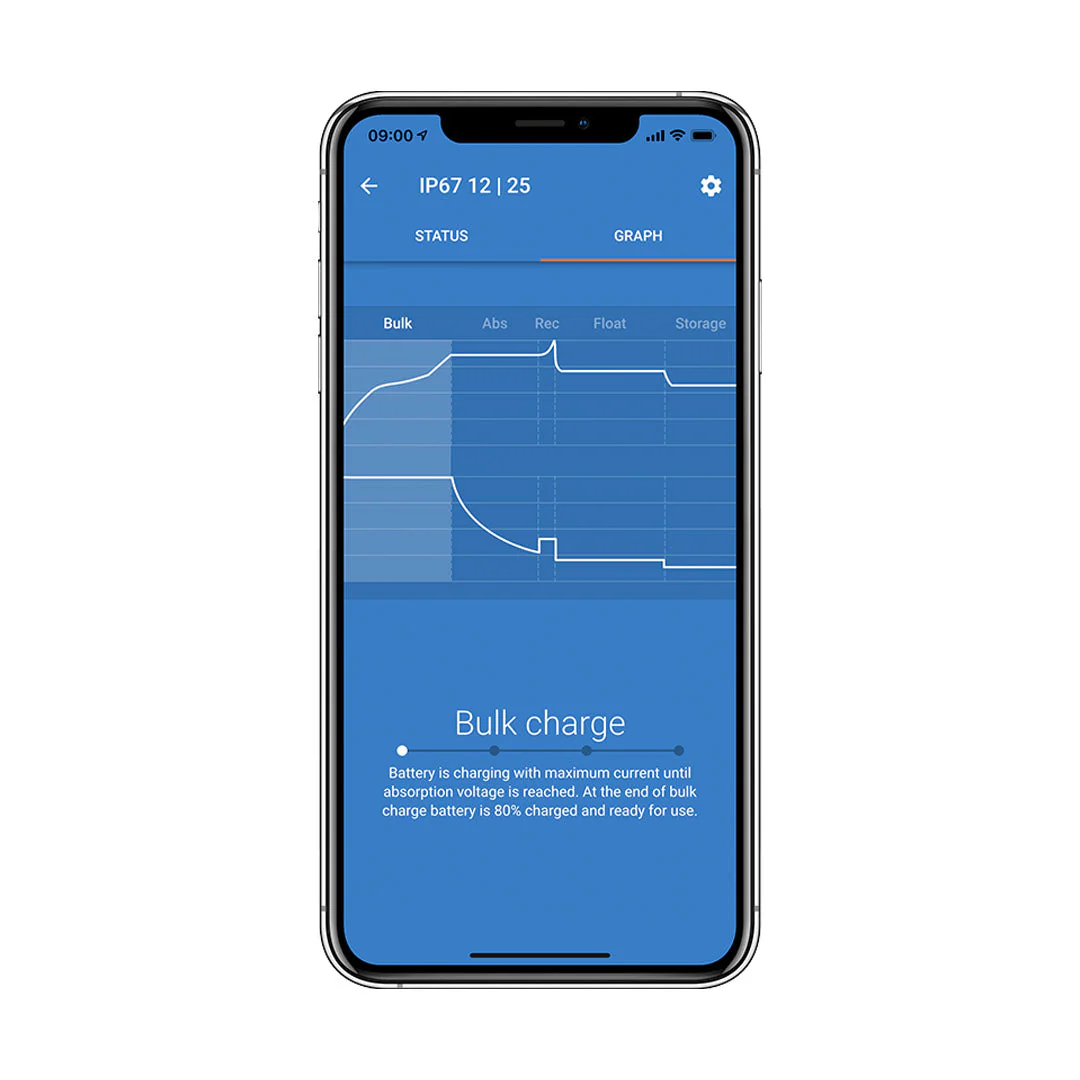

📱 SMART CONTROL WITH VICTRONCONNECT
Use Bluetooth Smart and the VictronConnect app for:
• Real-time charge data (voltage, current, and temperature)
• Battery configuration and algorithm selection
• Firmware updates and usage logs
• Full system integration with other Victron devices
🔌 COMPATIBILITY
• Designed for 24v battery systems
• Works with LiFePO₄, AGM, Gel, and Lead-Acid batteries
• Perfect for boats, RVs, off-grid setups, and industrial systems
🧰 INSTALLATION DIFFICULTY
🟢 Easy (2/5) – pre-wired connections for simple and quick installation
🔍 FEATURES
• Smart 5-step adaptive charging control
• Rugged IP67 aluminium enclosure for full protection
• Resin-encased electronics for vibration and moisture resistance
• Ultra-efficient power conversion (≥92%)
• Thermal current limiting for safe operation up to 60°C
• Automatic storage and reconditioning modes
• Supports lithium and traditional battery chemistries
• Dual LED indicators for power and charge stage
• Reverse polarity, short-circuit, and overheat protection
• Completely silent — no fans or moving parts
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | Blue Smart IP67 24/12 |
| Input Voltage | 230V AC |
| Battery Voltage | 24v DC |
| Charge Current | 12A |
| Charging Algorithm | 5-step adaptive |
| Battery Types | LiFePO₄, AGM, Gel, Lead-Acid |
| Efficiency | ≥92% |
| Operating Temperature | -30°C to +60°C |
| Protection Rating | IP67 |
| Communication | Bluetooth Smart |
| Dimensions | 219 × 99 × 65 mm |
| Weight | 1.9kg |
📦 WHAT’S INCLUDED
• 1 × Victron Blue Smart IP67 24/12 Battery Charger
• 1 × Pre-wired DC output cable with ring terminals
• 1 × AC input cable
• Instruction manual
Data sheet here
Manual here
