Victron Blue Smart IP22 Charger 24/16
📝 Victron Blue Smart IP22 Charger 24/16
The Victron Blue Smart IP22 24/16 Battery Charger is engineered for professional off-grid, marine, and RV power systems, offering precision charging, smart connectivity, and outstanding reliability. With advanced adaptive charging and Bluetooth control, it’s the perfect charger for those who demand performance, efficiency, and long battery life from their 24v setup.
⭐ ESSENTIAL BENEFITS

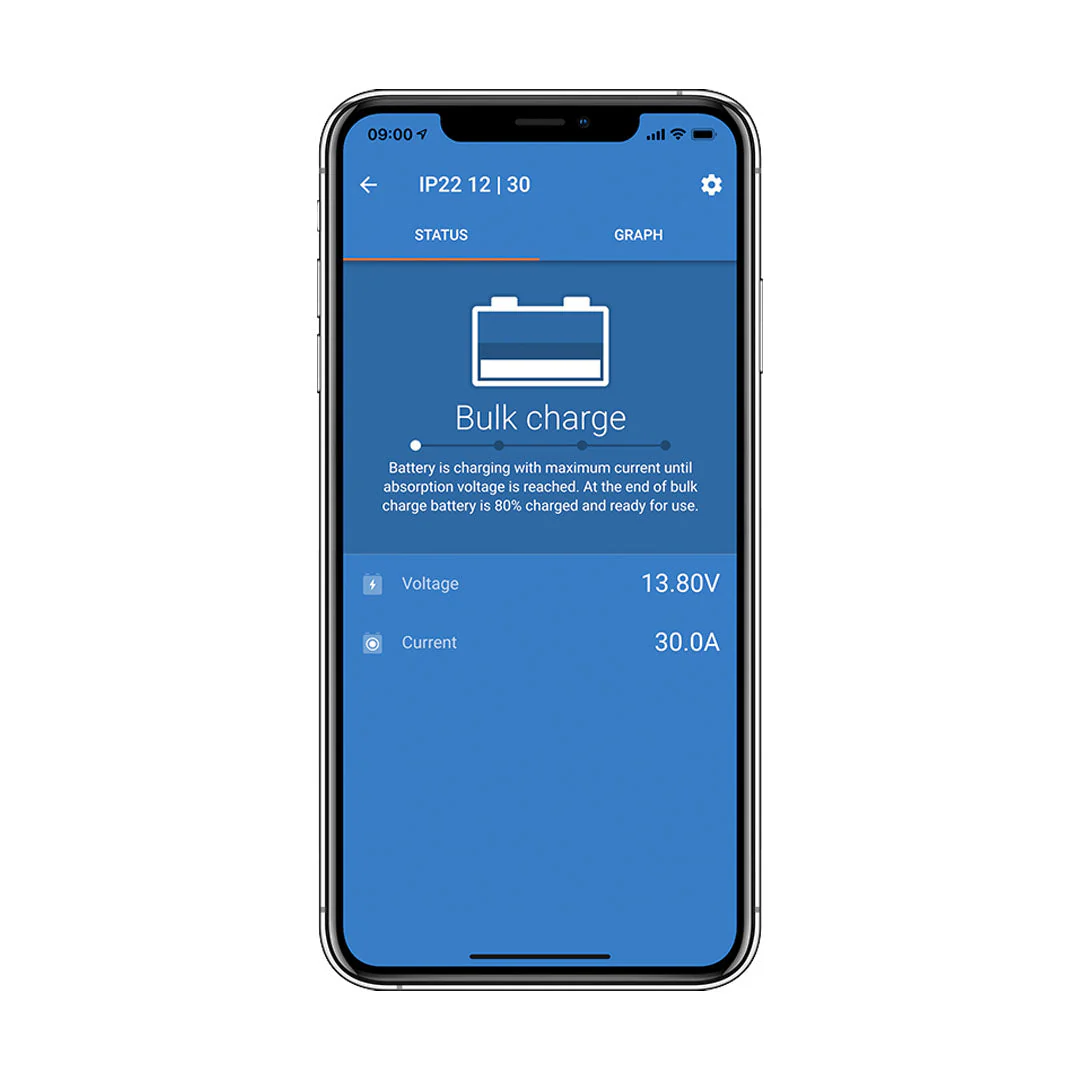

• Bluetooth Smart integration – configure, monitor, and update settings via the VictronConnect app
• Adaptive 6-stage charging – maximises battery life and efficiency
• High 94% energy efficiency – reduced power waste and minimal heat generation
• Storage mode – prevents battery sulfation during inactivity
• Quiet NIGHT & LOW modes – perfect for caravans, boats, or sleeping environments
• Thermal protection – intelligently adjusts output to prevent overheating
• Wide battery compatibility – suitable for LiFePO₄, AGM, Gel, and lead-acid batteries
• Durable IP22-rated design – robust for indoor use in mobile and stationary installations
⚙️ HOW IT WORKS
The Blue Smart IP22 24/16 uses Victron’s adaptive 6-stage charging algorithm (bulk, absorption, float, storage, refresh, recondition) to deliver optimal charging for every battery type. With Bluetooth Smart built in, you can wirelessly configure voltage settings, check performance data, and perform firmware updates through the VictronConnect app. This ensures your charger always operates efficiently and safely, adapting automatically to your system’s needs.
🔌 COMPATIBILITY
• Designed for 24v systems in RVs, caravans, boats, and off-grid power installations
• Compatible with LiFePO₄, AGM, Gel, and lead-acid battery chemistries
🧰 INSTALLATION DIFFICULTY
🟢 Easy (2/5) – simple wall-mount design with clearly labelled connection terminals
🔍 FEATURES
• Built-in Bluetooth Smart for wireless setup and monitoring
• Adaptive 6-stage charge algorithm for precision battery management
• Up to 94% power conversion efficiency with just 0.5W standby draw
• NIGHT and LOW mode for silent charging operation
• Smart storage mode maintains battery health during long idle periods
• LED status indicators for quick visual monitoring
• Automatic thermal derating and short-circuit protection
• Reverse polarity and overheat safeguards for reliable long-term use
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | Blue Smart IP22 24/16 |
| Input Voltage | 180–265V AC |
| Battery Voltage | 24v DC |
| Charge Current | 16A |
| Number of Outputs | 1 |
| Charging Algorithm | Adaptive 6-stage |
| Battery Types | LiFePO₄, AGM, Gel, Lead-Acid |
| Efficiency | Up to 94% |
| Communication | Bluetooth Smart |
| Dimensions | 235 × 108 × 65 mm |
| Weight | 1.3kg |
| Protection | IP22 (indoor use) |
📦 WHAT’S INCLUDED
• 1 × Victron Blue Smart IP22 24/16 Charger
• 1 × AC power cable
• 1 × DC output cable
• Mounting hardware and user manual
Data sheet here
Manual here
