V3 Dimmer + RGB Remote Controller Kit

📝 V3 Dimmer + RGB Remote Controller

The V3 Dimmer + RGB Remote Controller is a compact, high-performance lighting control system designed for smooth dimming, color control, and dynamic lighting effects. Using 2.4GHz wireless communication, this controller offers long-range operation, multi-remote pairing, automatic synchronisation, and reliable constant-voltage output for RGB LED lighting setups in campervans, caravans, RVs, and indoor installations.

⭐ Essential Benefits

• Smooth dimming – flicker-free brightness control for any RGB lighting setup.
• 10 built-in lighting modes – includes jump, fade, and gradual color transitions.
• Long-range wireless control – 2.4GHz signal reaches up to 30m.
• Expandable system – works with power repeaters for unlimited output scaling.
• Multi-remote support – one receiver can pair with up to 10 remotes.
• Auto-sync feature – multiple receivers stay perfectly synchronized.
• Certified safety – meets CE, ROHS, FCC, CETIC, CB, and SAA requirements.

⚙️ Functionality

The V3 system uses a 3-channel constant-voltage output for RGB lighting, providing smooth dimming and color control without flicker. The 2.4GHz wireless remote communicates with the receiver at distances up to 30m, while the auto-transmitting function extends range beyond 100m. Each receiver can relay signals to the next, keeping all zones perfectly synchronized under any mode or speed.

🔌 Compatibility

• Works with 12v and 24v RGB LED strips
• Suitable for campervans, caravans, RV interiors, boats, and indoor spaces
• Compatible with COB dotless RGB strips and standard RGB lighting
• Supports expansion via power repeaters for large lighting systems

🧰 Installation Difficulty

🟢 Easy (2/5)

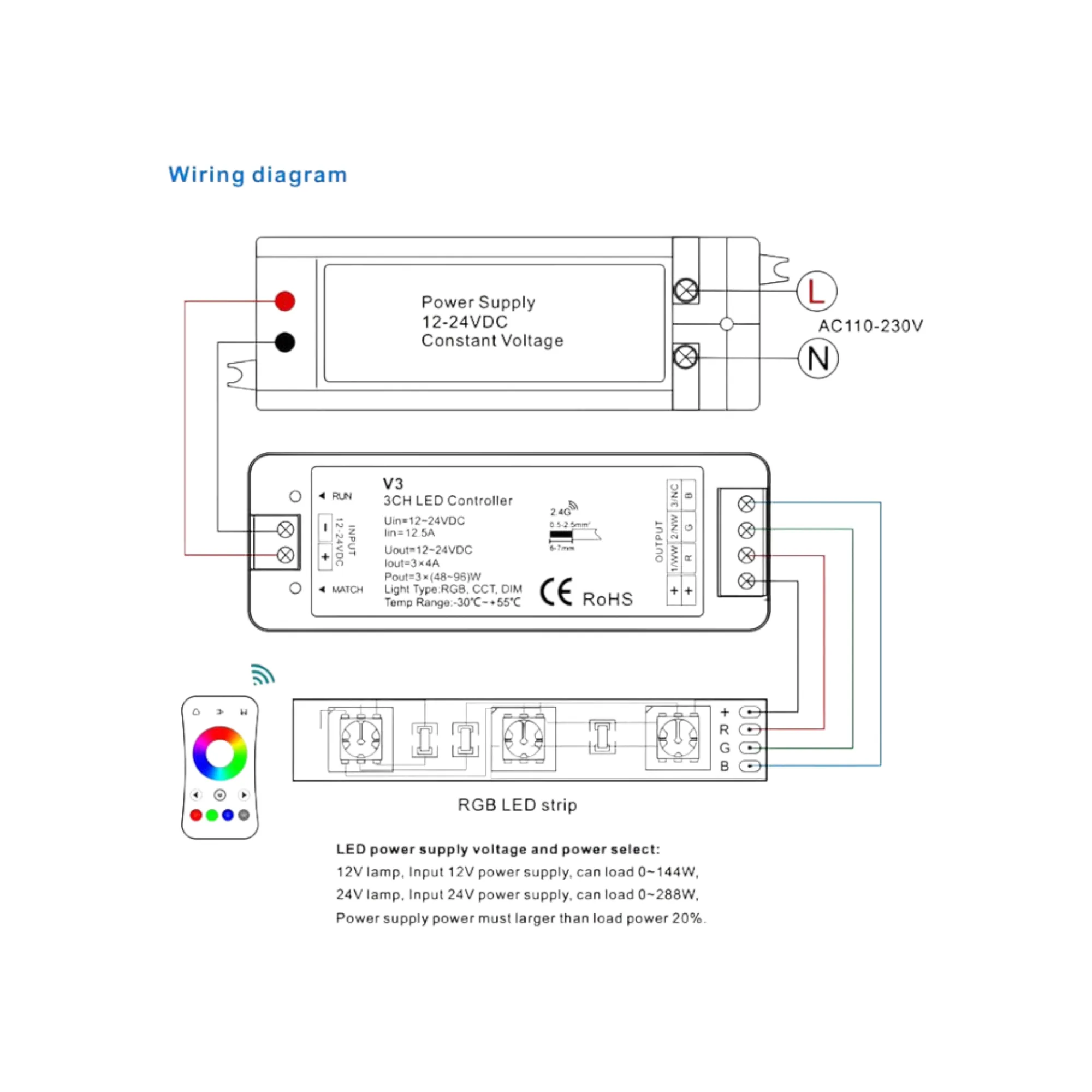

Connect to a 12v or 24v power supply, wire RGB outputs, and pair the remote via simple wireless binding.

🔍 Features

• 3-channel constant-voltage output
• 10 dynamic color modes (jump, fade, gradual transitions)
• Auto-sync and auto-transmit functions
• 30m remote range (extends beyond 100m with multi-receiver linking)
• 2.4GHz RF technology
• Compact mini receiver
• Low-power CR2032 remote battery

📊 Specifications

Specification	Detail
Load Power	12V < 144W, 24V < 288W
Output Voltage	DC 12–24V
Output Current	>4A
Receiver Dimensions	Approx 97 × 33 × 18MM
Receiver Weight	Approx 85g
Wireless Signal	2.4GHz
Remote Working Voltage	3V (CR2032)
Remote Current	<20mA
Standby Time	Approx 1 Year
Operating Temp	–30°C to +55°C
Remote Dimensions	Approx 107 × 58.5 × 9MM
Remote Weight	Approx 34g
Certification	CE, ROHS, FCC, CETIC, CB, SAA

📦 What’s Included

• 1 × V3 RGB Dimmer Controller
• 1 × 2.4GHz Remote Control (CR2032 Battery)

🙌 Why Choose This Product?

The V3 Dimmer + RGB Remote Controller delivers smooth dimming, long-range color control, and advanced synchronisation features perfect for modern RGB lighting systems. With its compact design, multi-remote capability, and certified safety, it’s the ideal controller for campervan, caravan, RV, marine, and home installations requiring professional-grade RGB lighting control.
