📝 Sunman eArc 100W Flexible Solar Panel

We always aim to get your order out the same day! However, because solar panels require special handling and carriers, we’ll dispatch them as quickly as possible.

Step into the future of solar innovation with the Sunman eArc 100W Flexible Solar Panel — the ultra-lightweight, glass-free solar solution built for versatility, strength, and long-term reliability. Designed for caravans, motorhomes, boats, and even residential rooftops, this 2022 model features the latest cut Mono-PERC solar cell technology for maximum efficiency in a sleek, durable, and flexible design.

Constructed from a patent-pending composite material similar to aircraft windows, the eArc combines flexibility and resilience, offering a robust alternative to conventional glass panels without compromising performance.

---

⭐ Essential Benefits

• Ultra-Lightweight Construction – weighing just 1.8kg and only 2mm thick, it’s easy to handle, transport, and install on any surface.
• Next-Gen Mono-PERC Cells – 36 high-efficiency cells deliver reliable 100W output, optimised for real-world performance.
• Aircraft-Grade Durability – built from advanced composite polymers with excellent UV, heat, and impact resistance.
• Flexible & Versatile Design – ideal for curved or uneven surfaces such as caravan roofs, boats, or mobile setups.
• Effortless Installation – install with VHB double-sided adhesive, bi-adhesive backing, or structural silicone — no frame or glass required.
• Weatherproof Protection – IP68-rated junction box and MC4-compatible connectors ensure consistent performance in harsh environments.
• Proven Reliability – Clean Energy Council (CEC) approved and backed by ARENA support, ensuring trusted Australian quality.

---

⚙️ Functionality

The Sunman eArc 100W panel provides high-performance solar generation in applications where traditional panels can’t go. Whether installed on a campervan roof, marine deck, or curved architectural surface, it delivers consistent energy with minimal degradation over time.

Thanks to its vented gap mounting option, the panel runs cooler and more efficiently, reducing heat buildup and extending service life — all while maintaining a clean, low-profile aesthetic.

---

🔌 Compatibility

• Compatible with 12V solar systems
• Ideal for RVs, caravans, boats, off-grid homes, and mobile solar setups
• Works seamlessly with most MPPT and PWM charge controllers

---

🧰 Installation Difficulty

🟡 3/5 (Moderate) – installation is straightforward with adhesive or silicone options, though correct surface preparation and cable routing are recommended for optimal performance.

---

🔍 Features

• 100W high-efficiency flexible solar panel
• Frameless, ultra-thin 2mm design

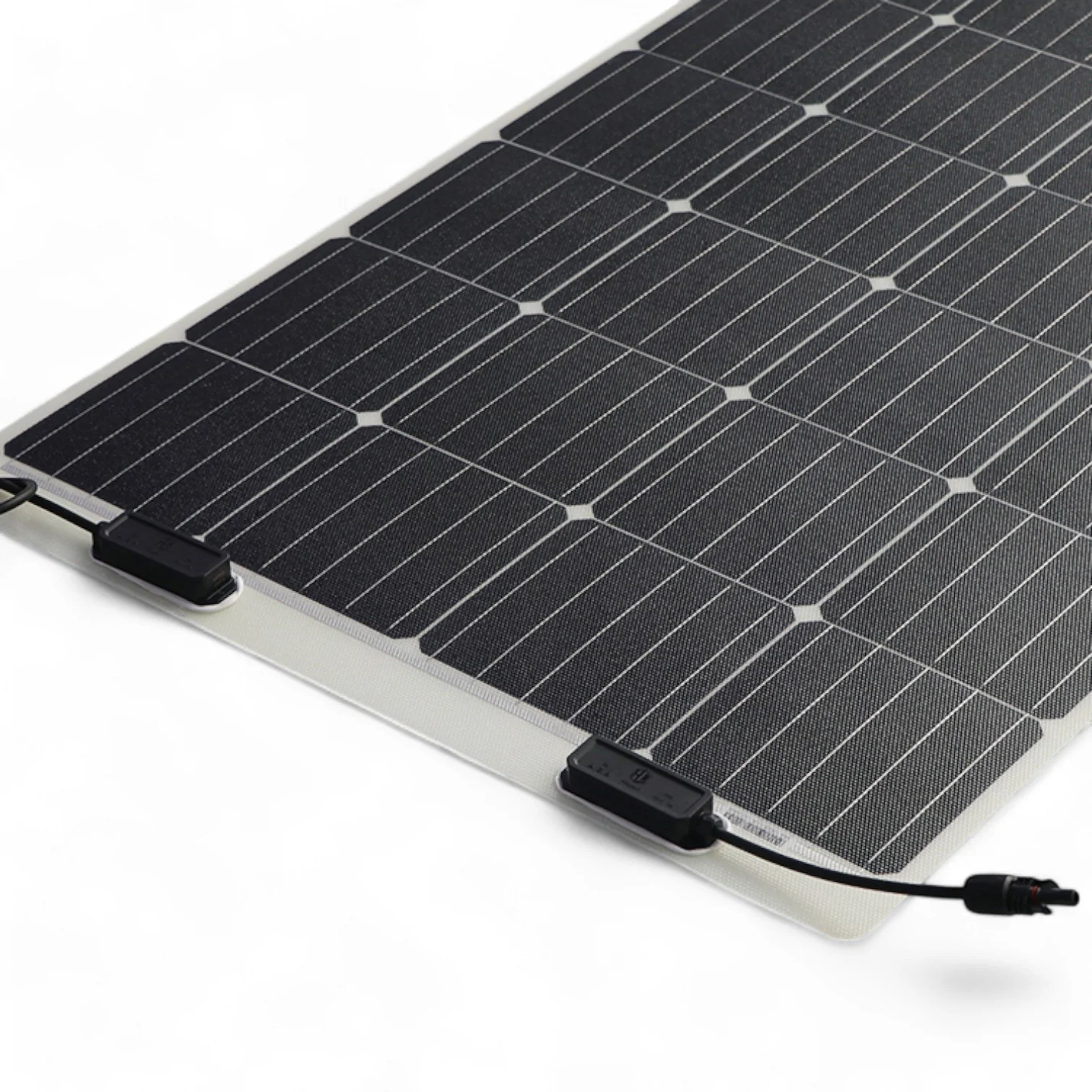

• IP68-rated junction box with bypass diode
• Multiple mounting options (adhesive, silicone, vented gap)
• CEC-accredited and ARENA-supported technology
• Hail impact and wind load tested
• 10-year product warranty (building), 5-year (mobile), and 25-year performance guarantee

---

📊 Specifications

Specification	Detail
Model	SMF100M-3x12UW
Power Output	100W

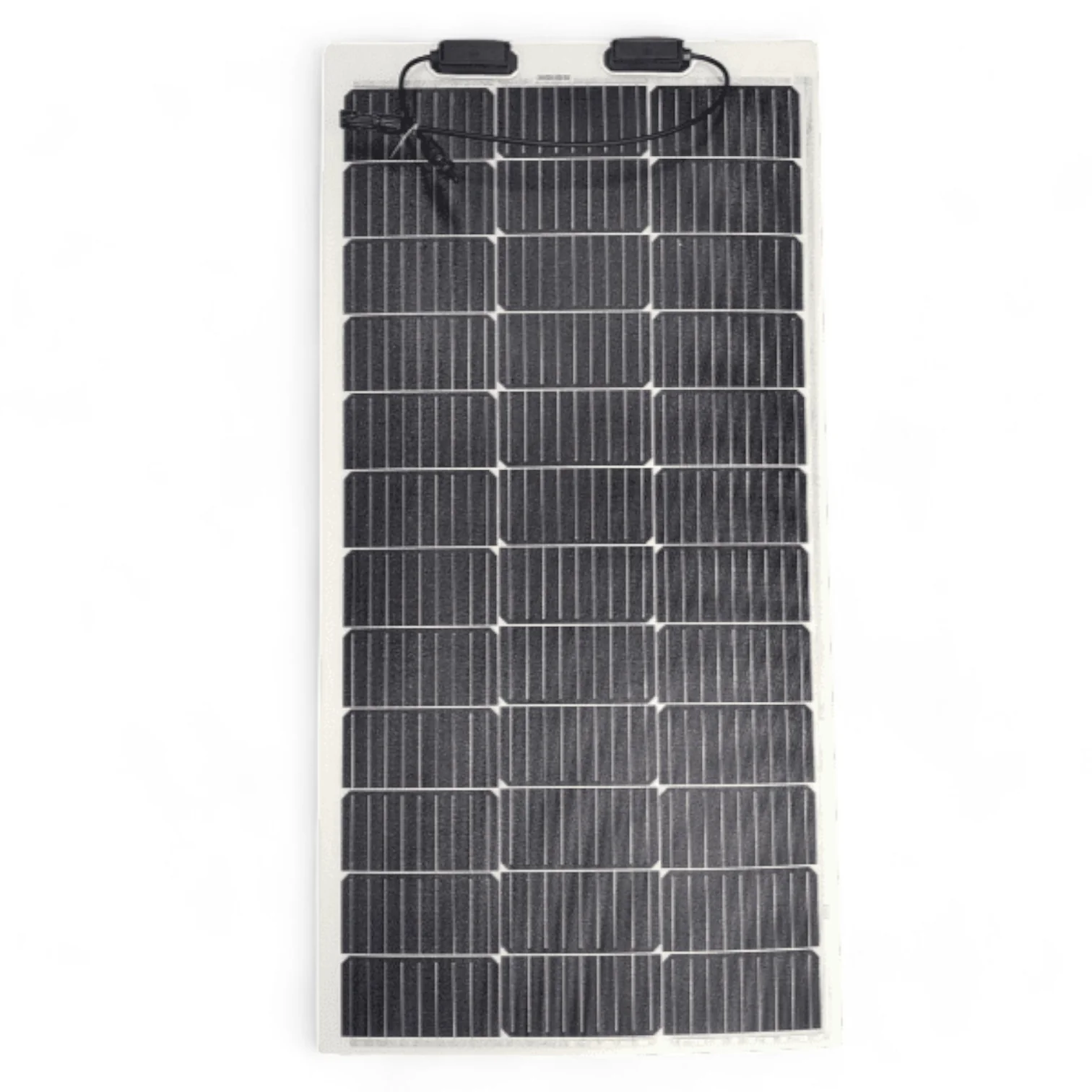

Solar Cells	36 (3×12) Mono-PERC
Vmp / Imp	21.2V / 4.75A
Voc / Isc	25.2V / 5.12A
Operating Temperature	-40°C to 85°C
Max System Voltage	1000V DC (IEC)
Max Series Fuse Rating	20A
Power Tolerance	0 / +5W
Backsheet	White
Junction Box	IP68, one bypass diode per j-box
Cable Size / Length	4.0mm², (+)150mm / (-)450mm
Connector	MC4 Compatible
Weight	1.8kg
Thickness	2mm

---

📦 What’s Included

• 1 × Sunman eArc 100W Flexible Solar Panel
• 1 × MC4 Connector Cable Set
• 1 × Installation Manual
• 1 × Data Sheet

Manual / Data Sheet
