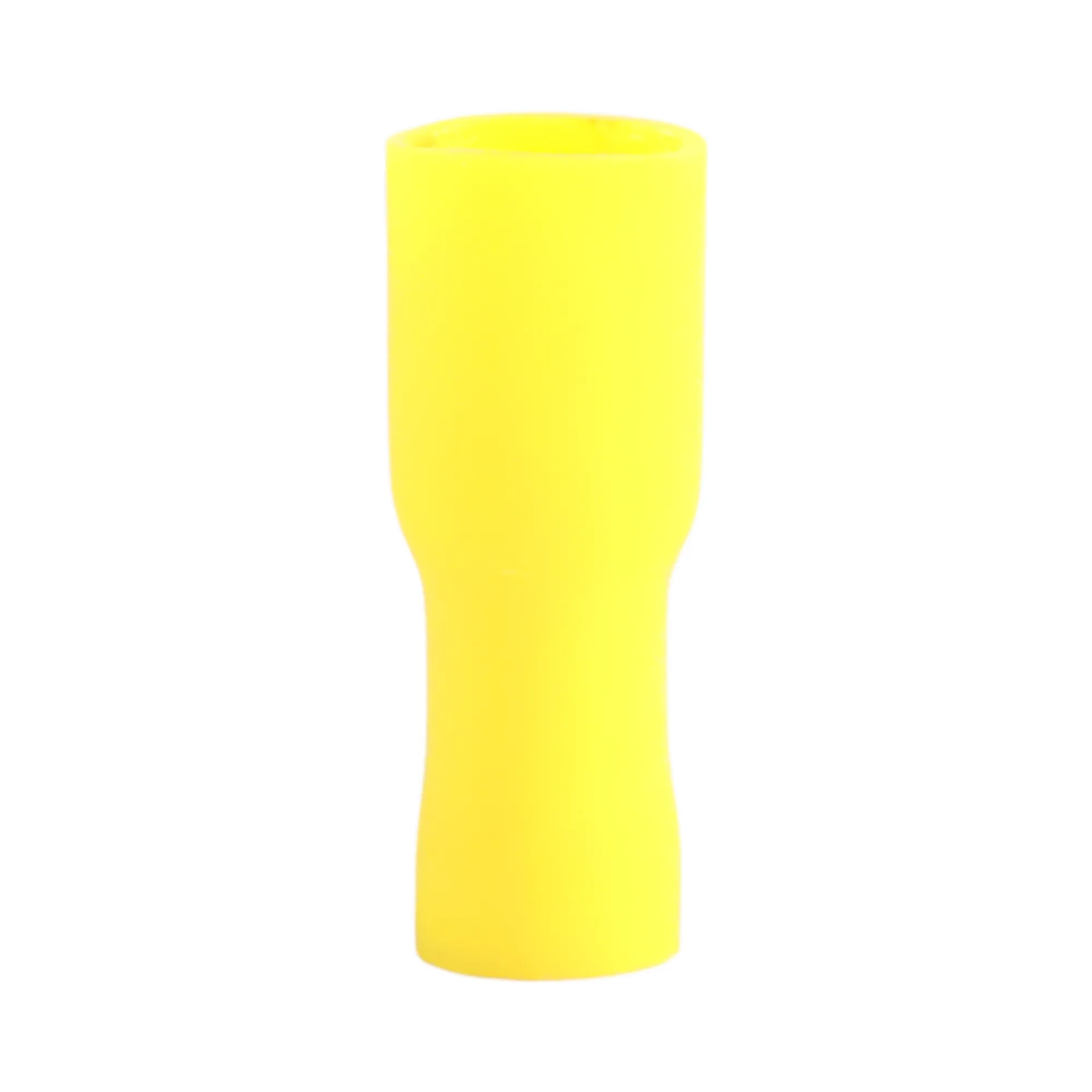

Yellow Vinyl Female Quick Disconnect - Fully Insulated (100 Pack)
📝 Yellow Vinyl Female Fully Insulated Quick Disconnect (100 Pack)
Upgrade your 12v wiring with yellow vinyl female fully insulated quick disconnect terminals designed for safer, protected connections in campervans, caravans, motorhomes, and off-grid builds. This variation features a double crimp sleeve design, easy-entry collar, and full vinyl insulation covering the terminal for added protection against accidental shorting.
⭐ Essential Benefits
• Fully insulated design – vinyl housing fully covers the terminal to reduce accidental contact and short circuits.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.
• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 75°C temperature rating – suitable for general-purpose interior DC wiring.
⚙️ Functionality
These fully insulated female quick disconnect terminals are designed to crimp onto cable ends and connect to matching male spade terminals. Strip the cable, insert into the easy-entry collar, then crimp using the double crimp sleeve design to form a secure mechanical and electrical connection suitable for 12v–48v DC systems. The full vinyl sleeve provides additional protection once connected.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 4mm²–6mm² (AWG 12–10).
• Terminal type – suits standard 6.3mm male spade terminals.
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features
• Yellow vinyl fully insulated terminal – female quick disconnect style.
• Full protective sleeve – reduces risk of exposed metal and accidental shorting.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 75°C heat rating – suited to general interior DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Fully insulated vinyl |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 75°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × yellow vinyl female fully insulated quick disconnect terminals
🙌 Why Choose This Product?
This fully insulated variation provides added protection in tight installs and busy 12v distribution areas while maintaining the same connection style and current rating as the standard version.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
