Voltmeter Display

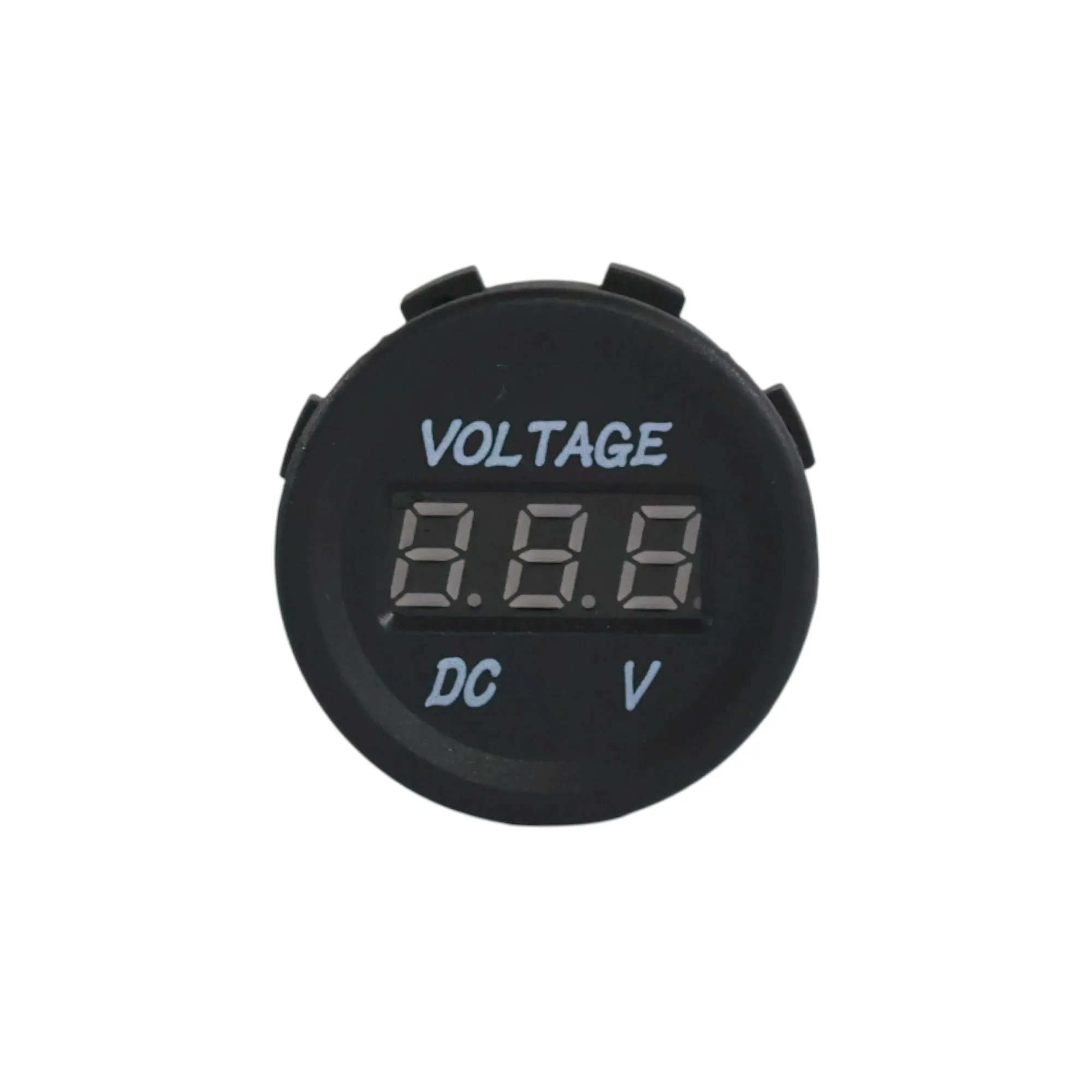

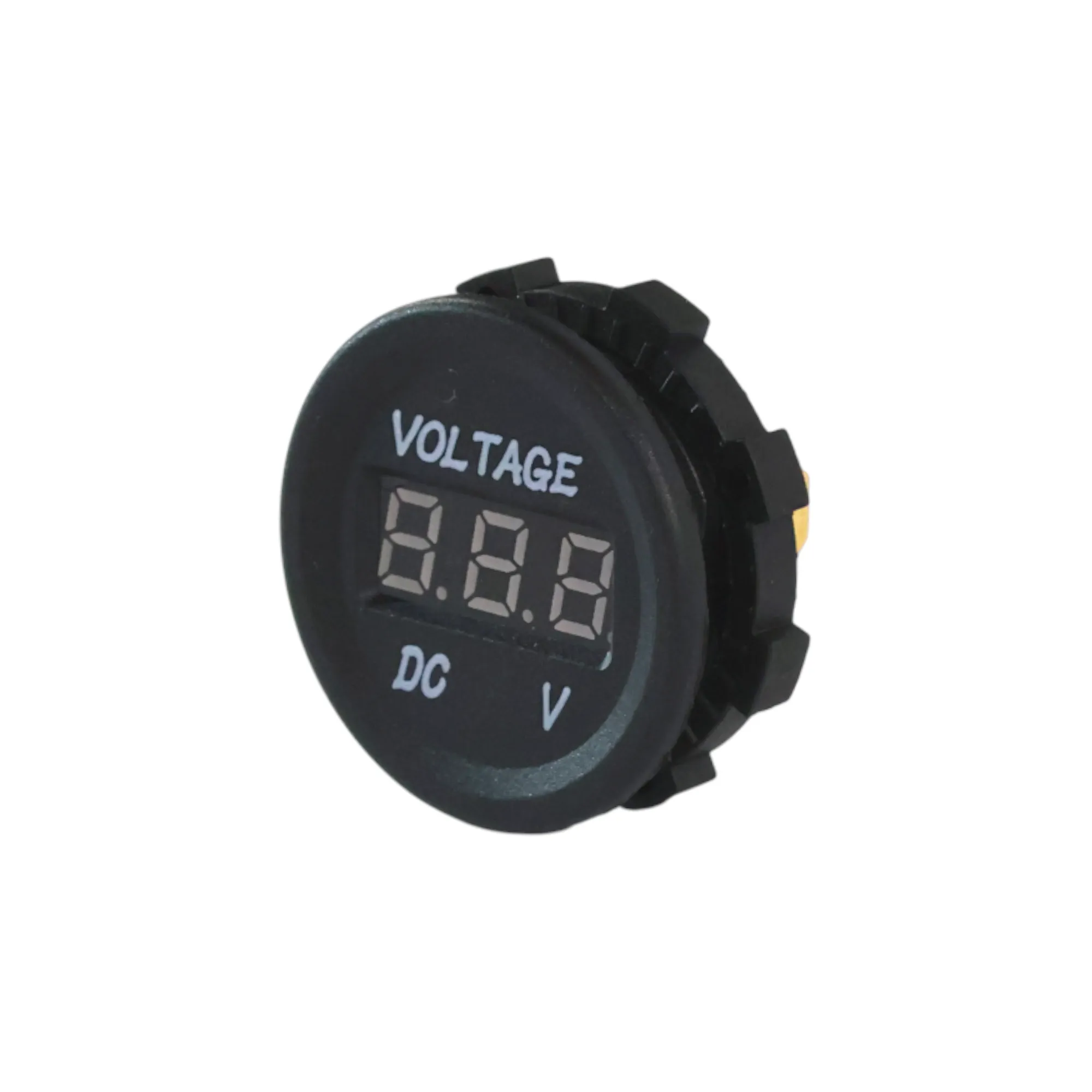

📝 Flush Mount DC Voltage Display – Black, 6v–30v Range

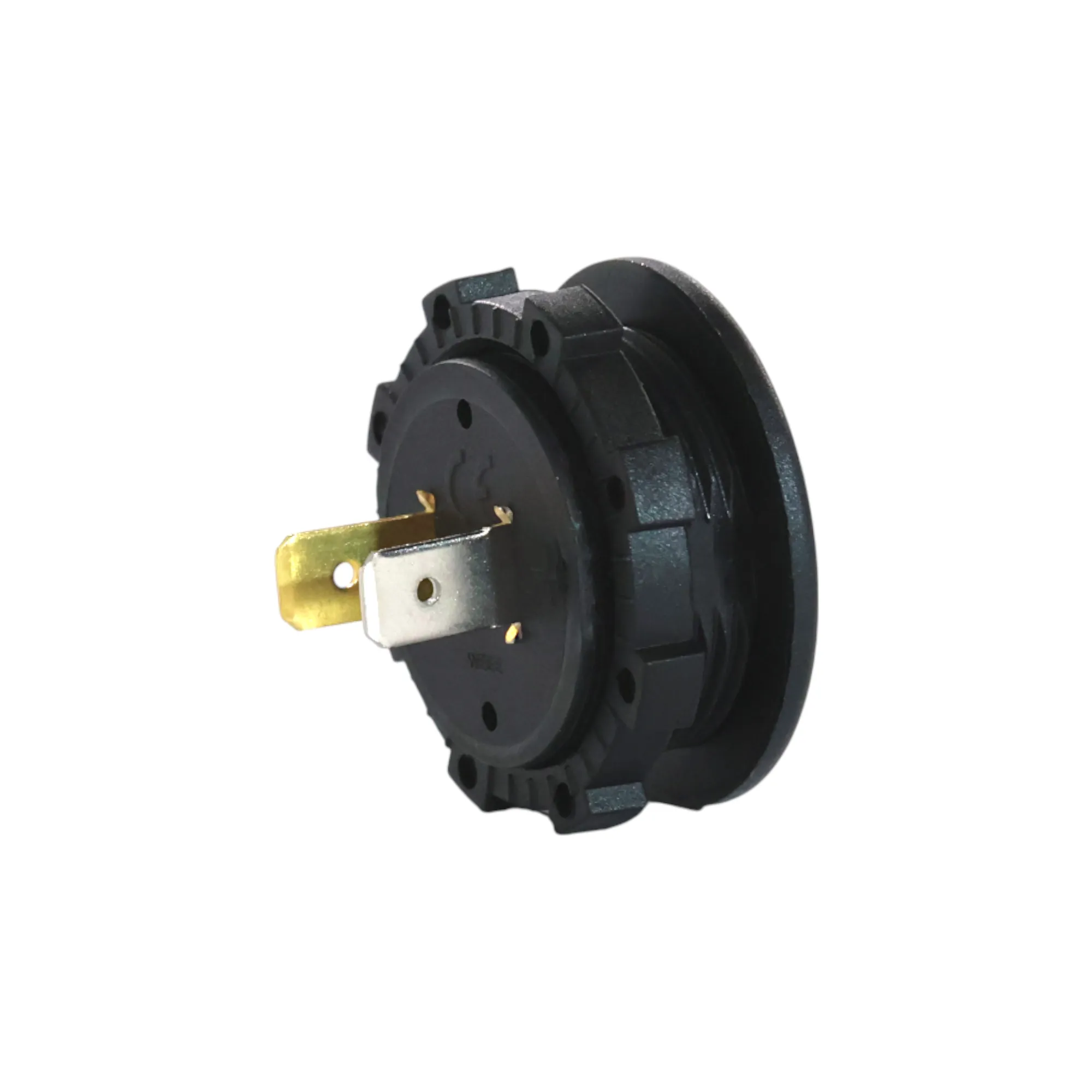

This flush mount DC voltage display provides a compact, accurate way to monitor battery voltage in 12v and 24v systems. The unit mounts securely using a threaded ring, includes two blue insulated female spade connectors, and fits perfectly into our surface-mount housings. The bright digital LED display is available in three color options: red, green, and blue.

⭐ Essential Benefits

• Compact flush design – installs neatly in panels, dashboards, or housings.
• Wide voltage range – measures DC 6v–30v for 12v and 24v systems.

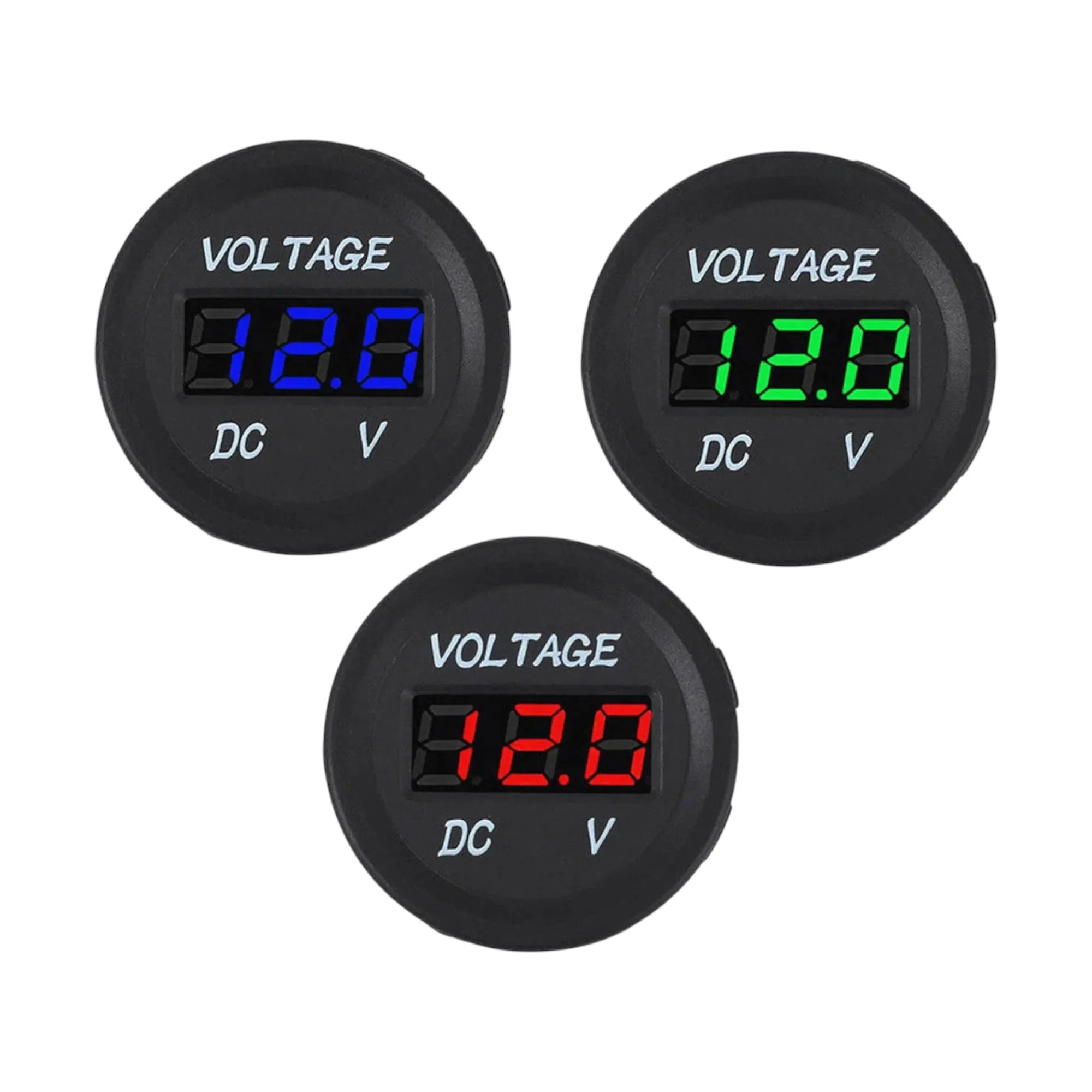

• 3 LED color options – choose red, green, or blue to match your setup.
• Includes connectors – supplied with 2 blue insulated female spade terminals.
• Easy threaded-ring mounting – secure, tool-friendly installation.
• Surface-mount compatible – fits directly into our surface-mount housings.

⚙️ Functionality

This voltage display provides a clear, real-time digital readout of your DC system voltage, helping you monitor battery condition, detect charging issues, and ensure safe operation of 12v and 24v accessories. The unit is completely sealed to IP67 standards, self-powered from the voltage it measures, and protected against reverse polarity for reliable operation in off-grid, automotive, and marine environments.

🔌 Compatibility

• Suitable for 12v and 24v DC systems
• Works in caravans, campervans, rvs, 4x4s, boats, and off-grid setups
• Fits any 27mm mounting hole or compatible surface-mount housing
• Supports red, green, and blue LED display variants

🧰 Installation Difficulty

🟢 1/5 (Easy)
Insert into a 27mm mounting hole, secure with the threaded ring, and connect via the supplied spade connectors.

🔍 Features

• Compact size
• Digital 3-digit LED display
• Self-powered from measuring voltage (5–32v DC)
• IP67 sealed design
• Reverse polarity protection
• Available in three display colors

📊 Specifications

Specification	Detail
Measuring Range	5–32v DC
Working Voltage	12–24v DC
Display Colors	Red, Green, Blue
Material	Copper, abs plastic
Mounting Hole Diameter	27mm
Depth	Approx 6.35mm
Dimensions	36 × 36 × 30mm
Mounting Method	Threaded ring (included)

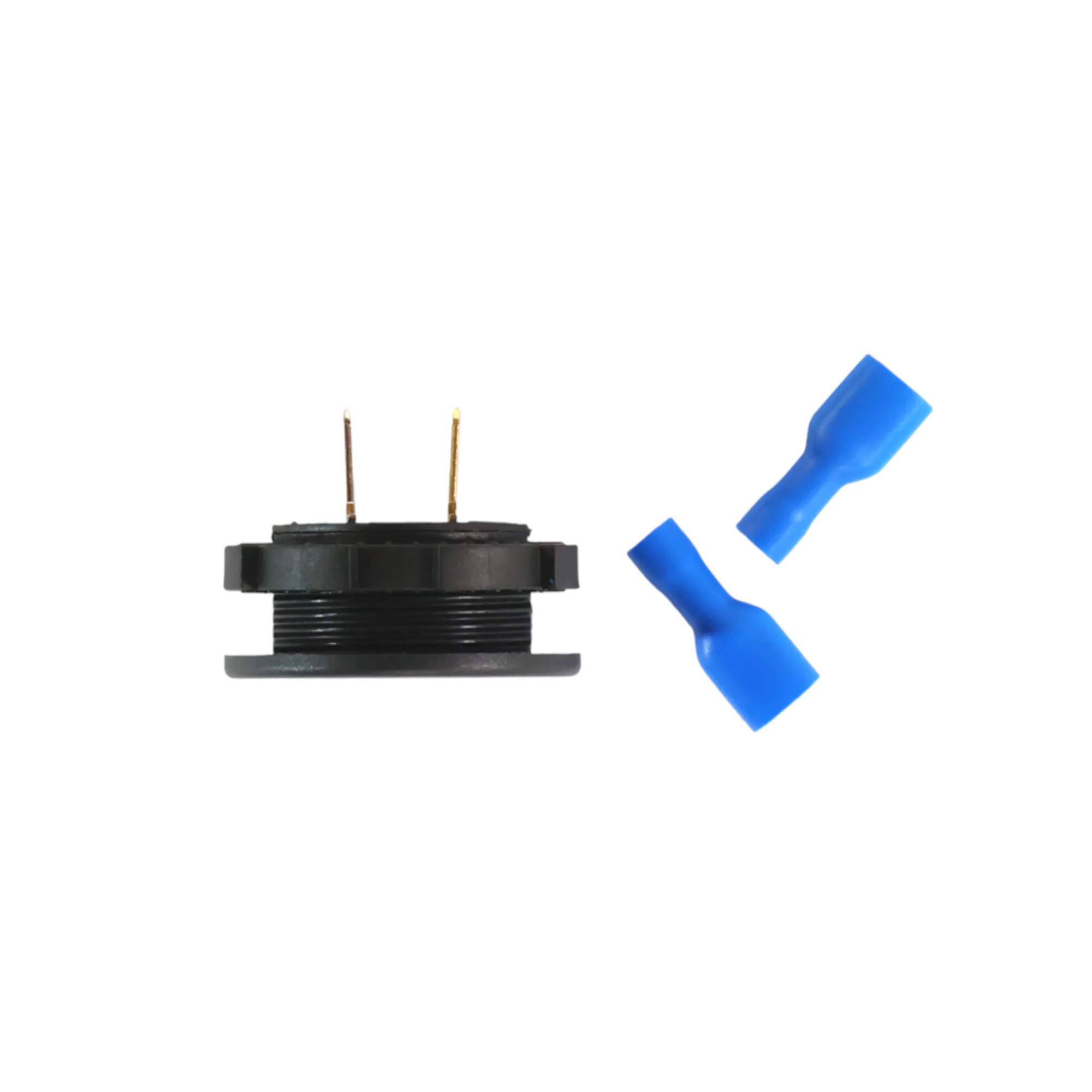

📦 What’s Included

• 1 × Flush mount DC voltage display (black)
• 2 × Blue insulated female spade connectors
• 1 × Threaded mounting ring

🙌 Why Choose This Product?

This compact flush voltage display gives you accurate, instant battery monitoring in any 12v or 24v system. Its sealed design, reverse-polarity protection, easy mounting, and choice of LED colors make it a reliable upgrade for off-grid, touring, marine, or vehicle-based electrical setups.

🚀 Our Promise

Order today for same-day dispatch and explore our full range of off-grid electrical accessories.
