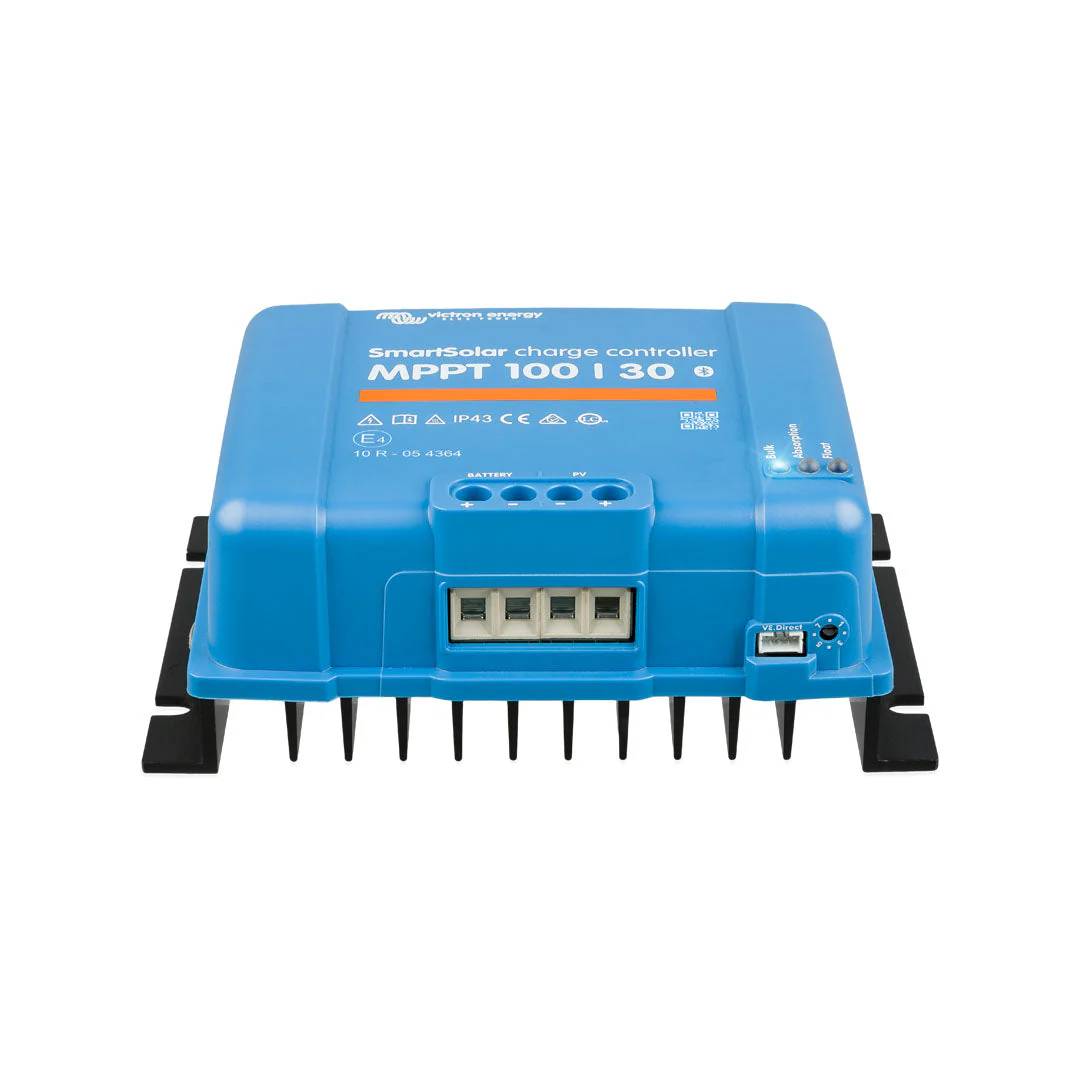

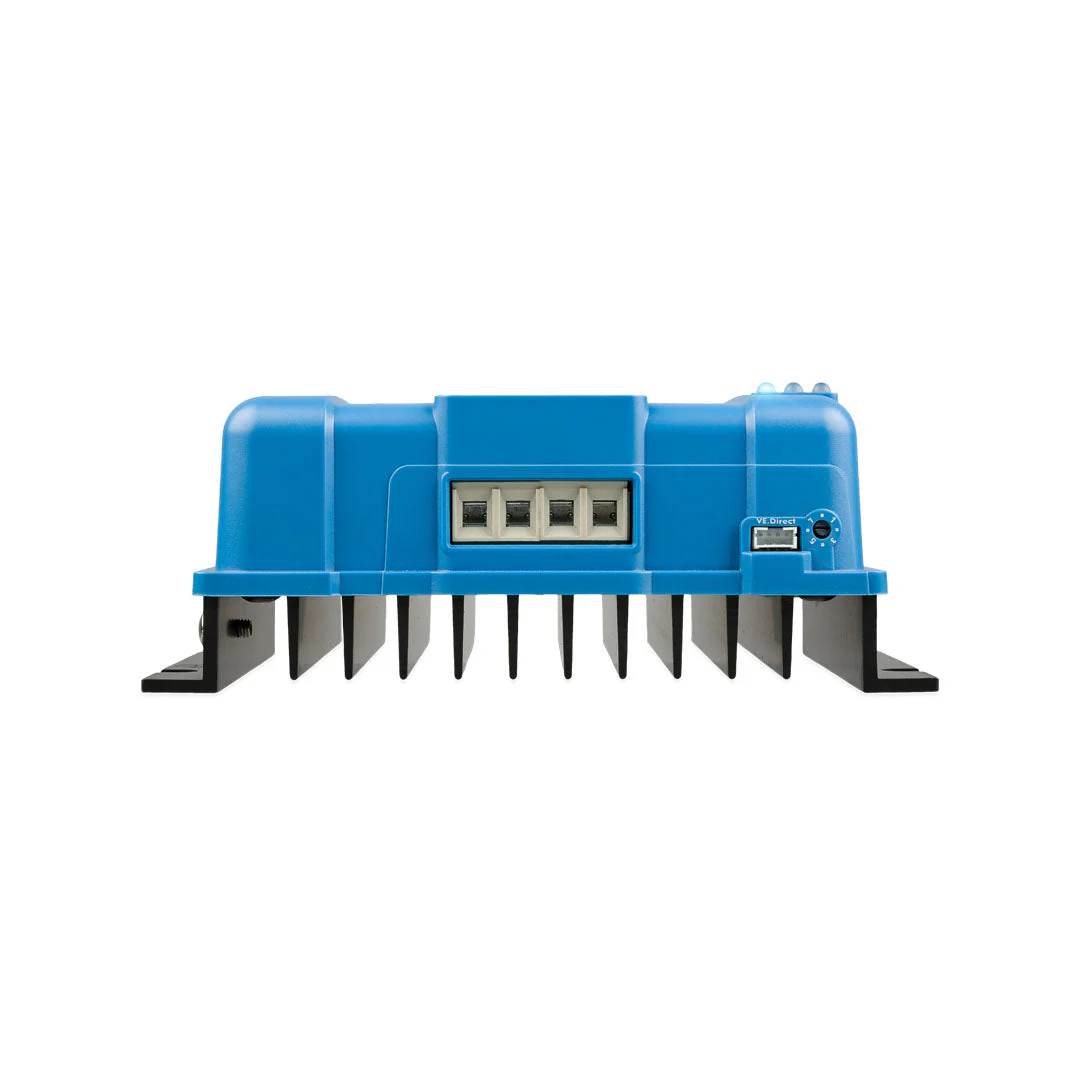

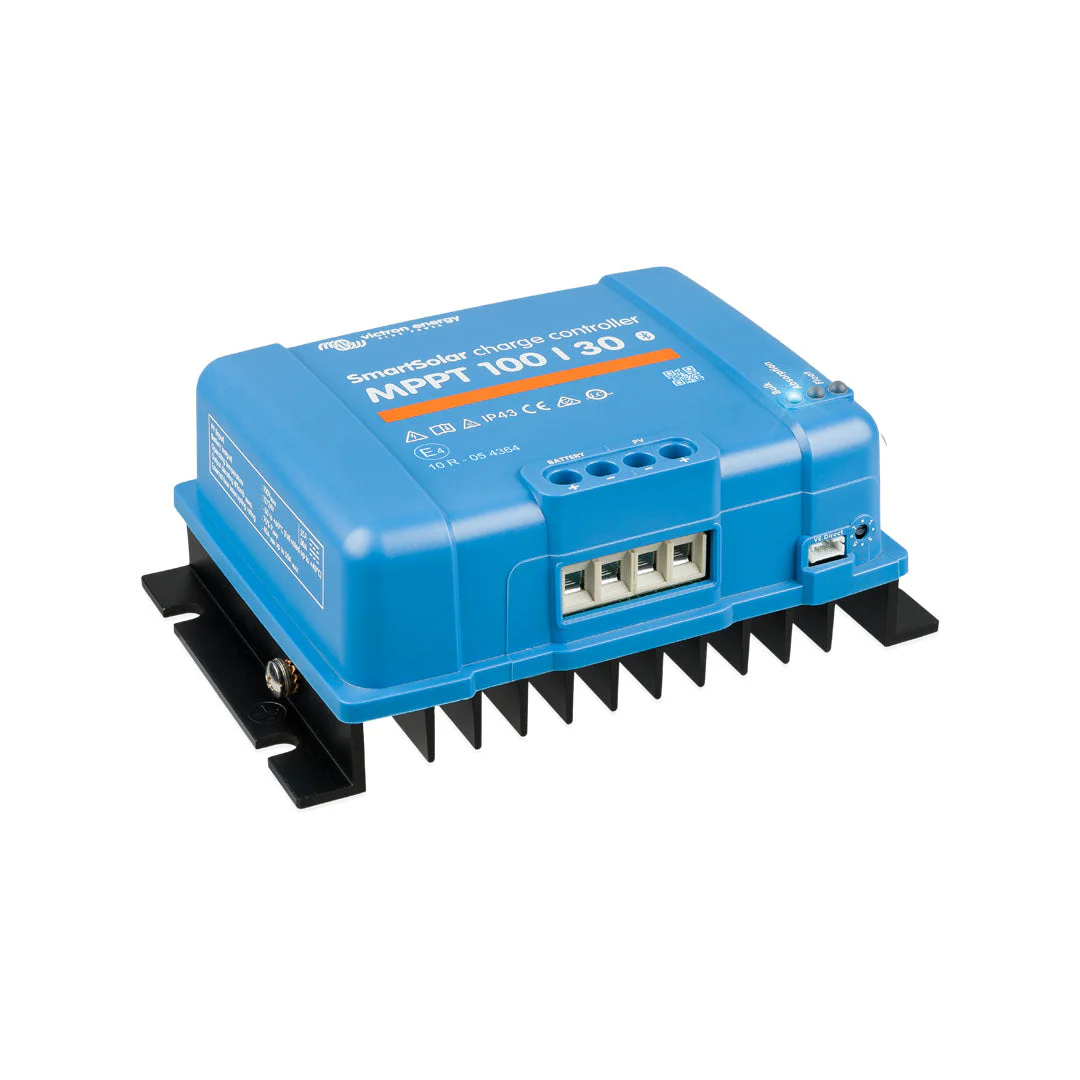

Victron SmartSolar MPPT 100/30 Bluetooth 12V/24V
📝 Victron SmartSolar MPPT 100/30
The Victron SmartSolar MPPT 100/30 is a powerful and intelligent solar charge controller designed for 12V, 24V, 36V, and 48V battery systems. Using ultra-fast Maximum Power Point Tracking (MPPT) technology, it maximises solar energy harvest under all light conditions — including cloudy or shaded environments. With Bluetooth Smart built-in, you can monitor, configure, and optimise your system wirelessly via the VictronConnect app. Reliable, efficient, and built for off-grid, RV, and marine setups, the SmartSolar 100/30 is the perfect choice for dependable solar charging.
⭐ ESSENTIAL BENEFITS
• Ultra-fast MPPT technology – increases energy harvest by up to 30% over PWM and 10% over slower MPPT controllers.
• Advanced shading optimisation – innovative MPPT algorithm locks onto the most efficient power point even during partial shading conditions.

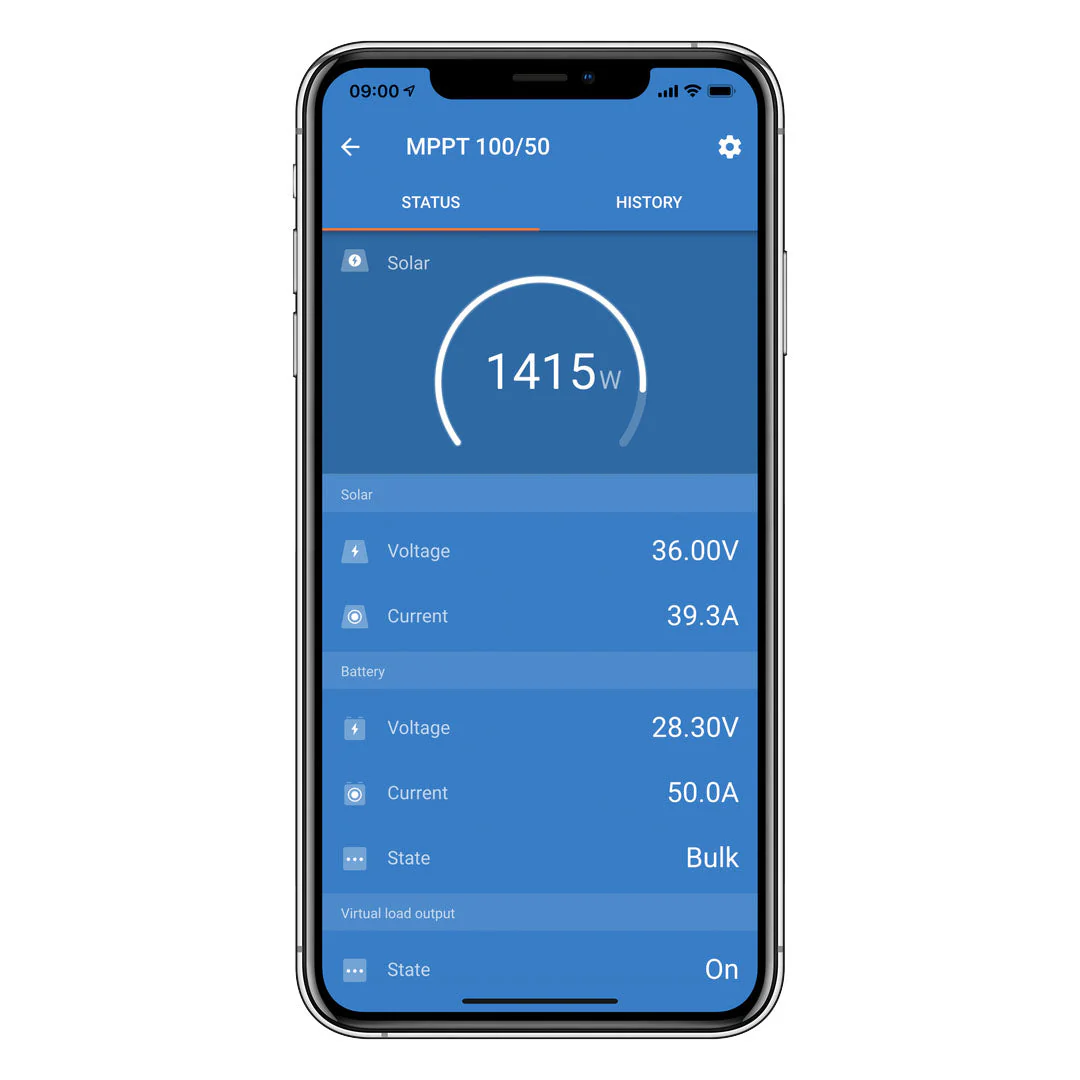

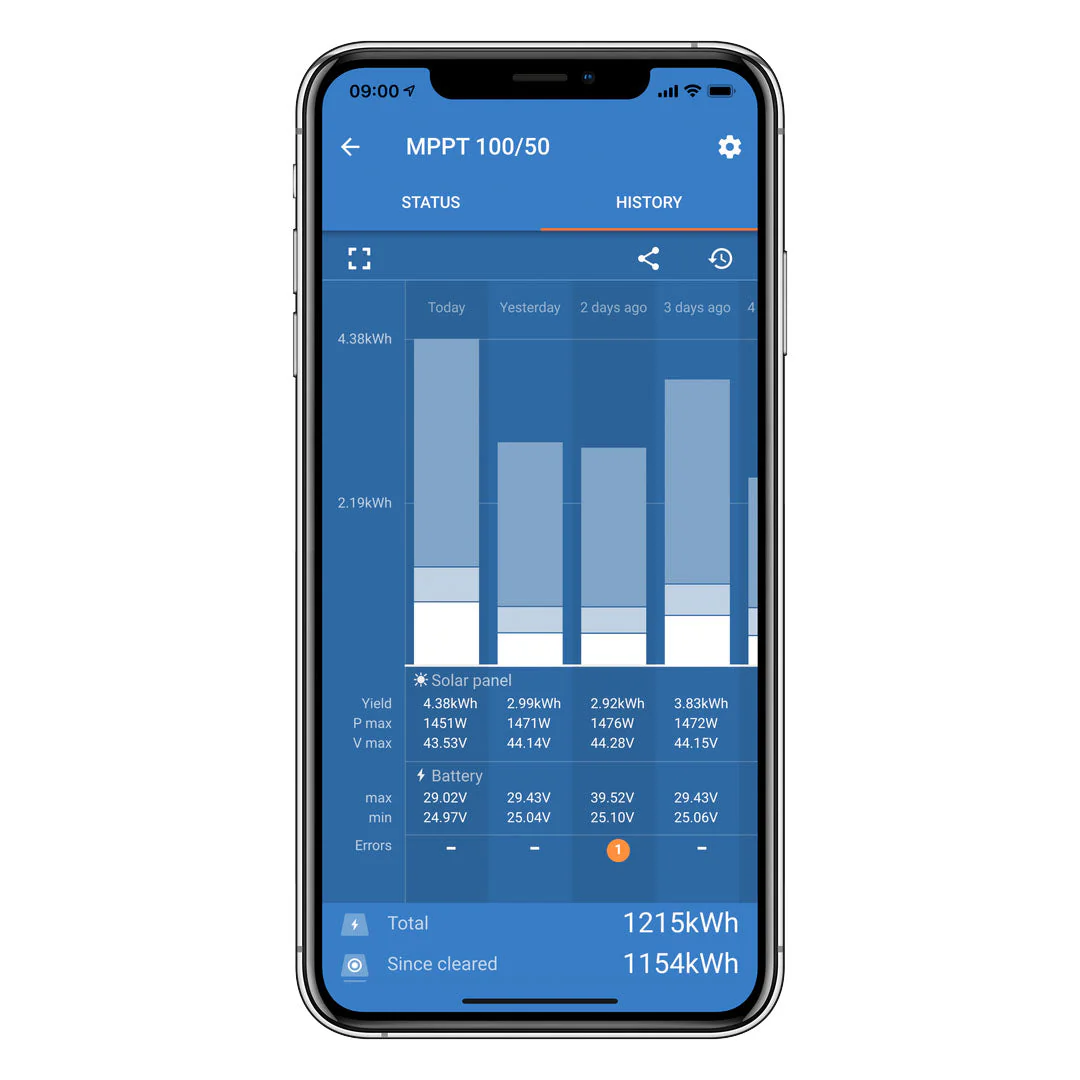

• Bluetooth Smart built-in – wirelessly configure, monitor, and update through the VictronConnect app.
• Remote management – connect to the Victron VRM Portal via a GX device for global monitoring and control.
• Outstanding conversion efficiency – operates at up to 98% efficiency with full current output maintained up to 40°C, and no cooling fan required.
• Battery Life algorithm – automatically manages battery charge levels to maintain health and extend lifespan.
• Comprehensive protection – includes over-temperature, short-circuit, reverse polarity, and PV reverse current safeguards.
• Flexible charge control – fully programmable with eight pre-set algorithms for quick and custom configuration.
⚙️ HOW IT WORKS / FUNCTIONALITY
The SmartSolar MPPT 100/30 continuously tracks the maximum power point of your solar panels to ensure optimal energy conversion, even under partial shading. It intelligently adapts to light fluctuations, temperature, and battery conditions for the highest possible efficiency. With Bluetooth Smart, all system parameters are accessible through your phone, while the Battery Life algorithm dynamically adjusts cut-off thresholds to prevent over-discharge and ensure consistent, full recharges.
🔌 COMPATIBILITY
• Compatible with 12V, 24V, 36V, and 48V systems (auto-detect).
• Works with AGM, GEL, Lead-acid, and LiFePO4 batteries.
• Integrates seamlessly with Victron GX devices, Smart Battery Sense, and BMV-712 monitors.
• Ideal for caravans, RVs, boats, off-grid systems, and mobile solar setups.
🧰 INSTALLATION DIFFICULTY
🟡 Moderate (4/5) – requires proper solar wiring and system configuration. Professional installation recommended for multi-panel or high-voltage setups.
🔍 FEATURES
• Bluetooth Smart connectivity – easy setup and monitoring via VictronConnect.
• VE.Direct communication port – allows wired integration with GX devices or PC software.
• Advanced MPPT algorithm – optimises power output in all conditions, including partial shading.
• Flexible charge algorithm – eight selectable presets plus full programmability.
• 98% peak efficiency – silent operation with no cooling fan required.
• Internal temperature sensor – adjusts charging voltages based on ambient temperature.
• Optional external sensing – compatible with Smart Battery Sense or BMV-712 Smart for voltage and temperature feedback.
• Fully discharged battery recovery – restarts charging even when battery voltage is zero.
• Electronic protections – built-in safety against overheating, short circuits, and reverse connections.
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | SmartSolar MPPT 100/30 |
| Battery Voltage | 12V / 24V / 36V / 48V (auto-select) |
| Rated Charge Current | 30A |
| Max PV Open Circuit Voltage | 100V |
| Max PV Input Power | 440W (12V) / 880W (24V) / 1320W (36V) / 1760W (48V) |
| Communication | Bluetooth Smart / VE.Direct |
| Load Output | Yes (programmable) |
| Peak Efficiency | 98% |
| Operating Temperature | -30°C to +60°C |
| Protection | Over-temp / Short circuit / Reverse polarity / Reverse current |
| Temperature Compensation | Internal sensor |
| Dimensions | 100 × 113 × 60 mm |
| Weight | 0.8kg |
| Enclosure Rating | IP43 (electronics), IP22 (connections) |
📦 WHAT’S INCLUDED
• 1 × Victron SmartSolar MPPT 100/30 Charge Controller
• Built-in Bluetooth Smart module
• User manual
Data sheet here
Manual here
