Ventura Series - 12v Outlet
📝 Ventura Series – 12v Outlet
The Ventura Series 12v Outlet delivers reliable exterior power in a compact, clean design that perfectly matches the Ventura range. Built to integrate seamlessly with Ventura power, water, solar, and TV connections, it provides a unified and premium finish for modern caravan and RV builds.
Designed for life outdoors, this rugged 12v outlet gives you quick access to power wherever your adventures take you. Simply park, lift the waterproof lid, and plug in portable compressors, cool boxes, inverters, or other 12v accessories.
⭐ Essential Benefits
• Exterior 12v power access – ideal for compressors, fridges, inverters, and accessories.
• IP68 & IP69K waterproof rating – reliable weather protection when lid is closed.
• Marine-grade 316 stainless steel hardware – built for harsh environments.
• Compact flush design – clean, cohesive look with the Ventura Series range.
• Low standby draw – minimal power consumption when not in use.
⚙️ Functionality

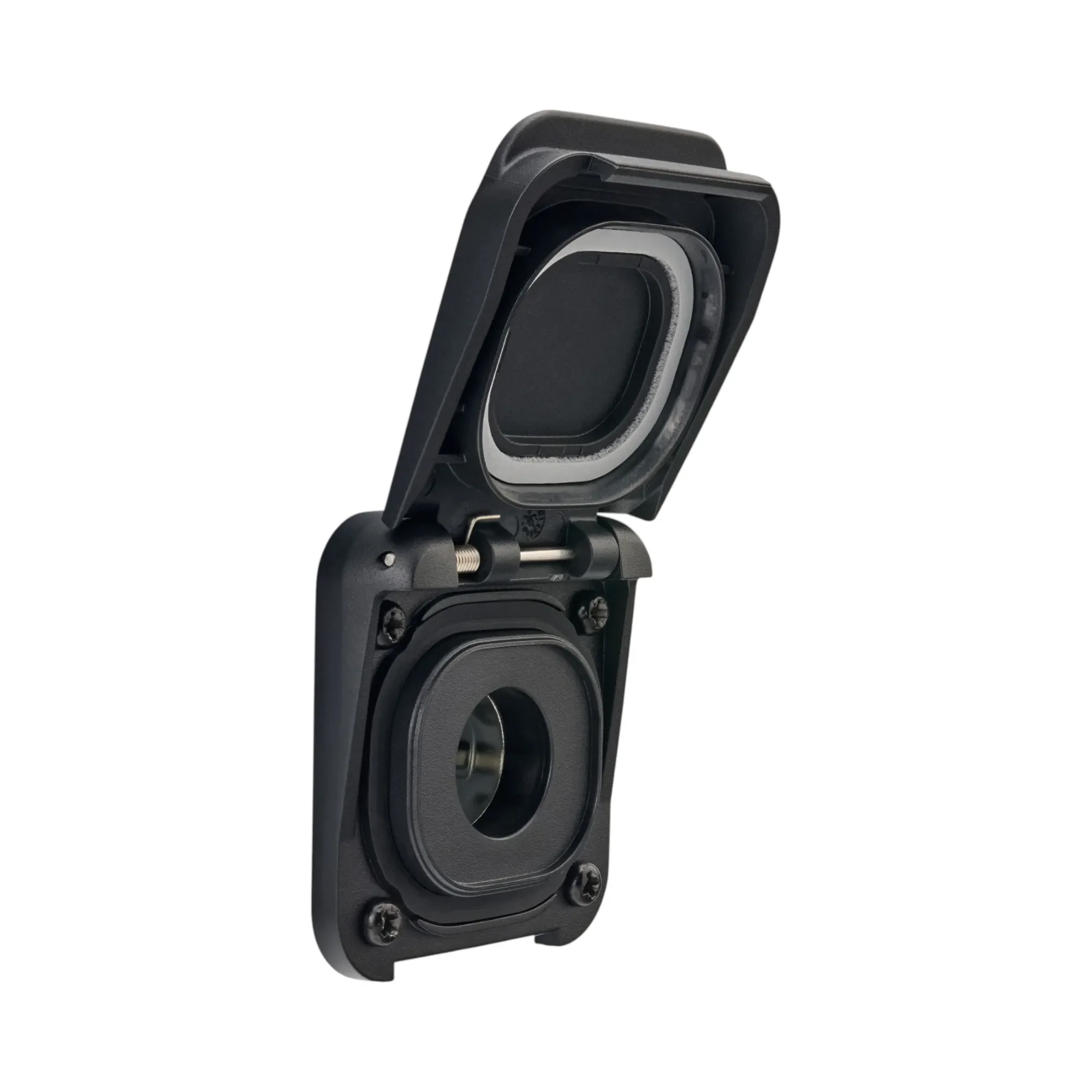

This exterior-mounted 12v outlet provides a convenient DC power source for outdoor use. The premium click-to-close, spring-loaded lid protects the socket from dust and water when not in use, while the built-in gasket ensures a watertight seal.
Its robust construction and marine-grade materials ensure dependable performance in coastal, dusty, and high-UV environments.
🔌 Compatibility
• 12v DC systems (10–15v input only)
• Caravans, campervans, motorhomes, and RVs
• Marine and coastal installations
• Portable compressors, cool boxes, inverters, and other 12v accessories

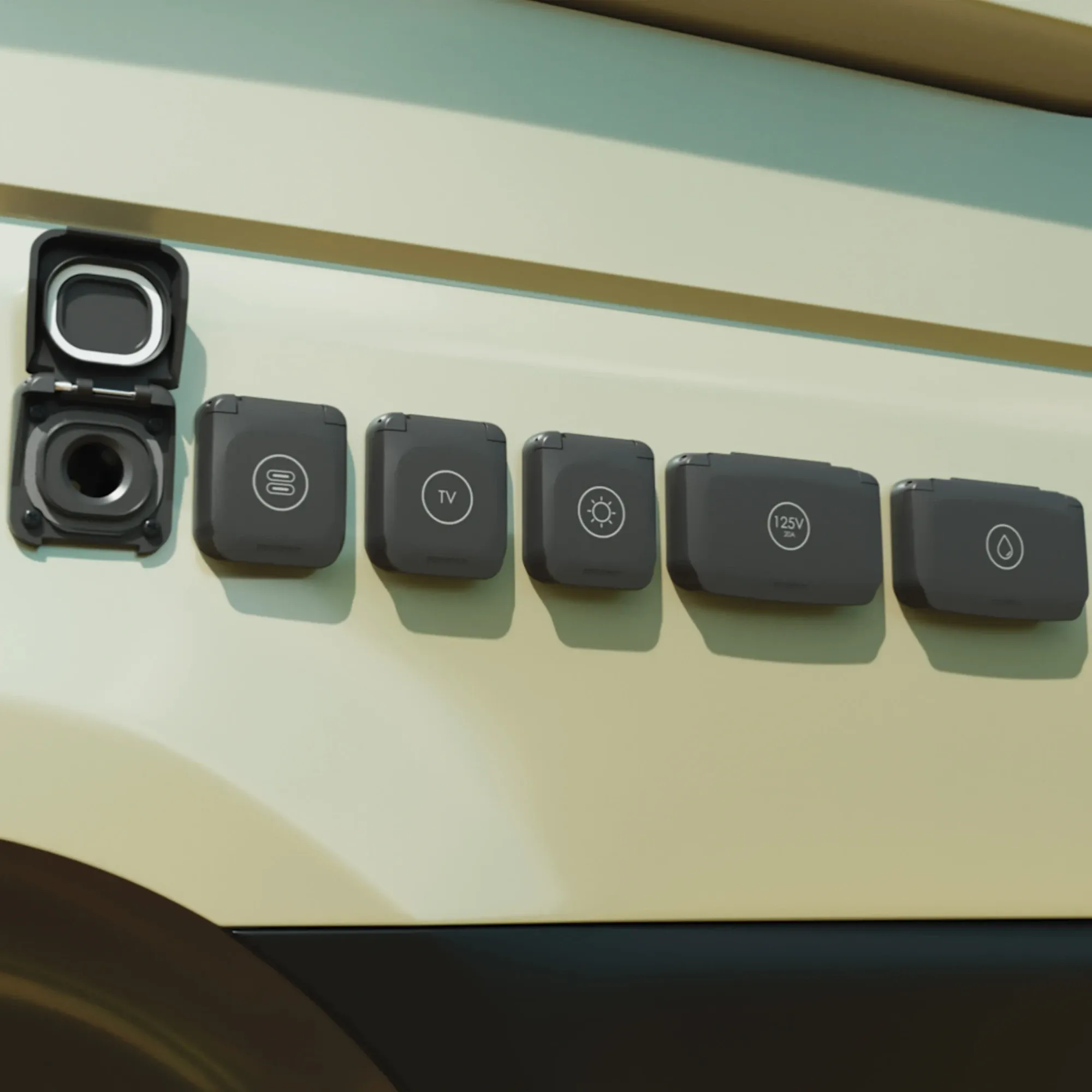

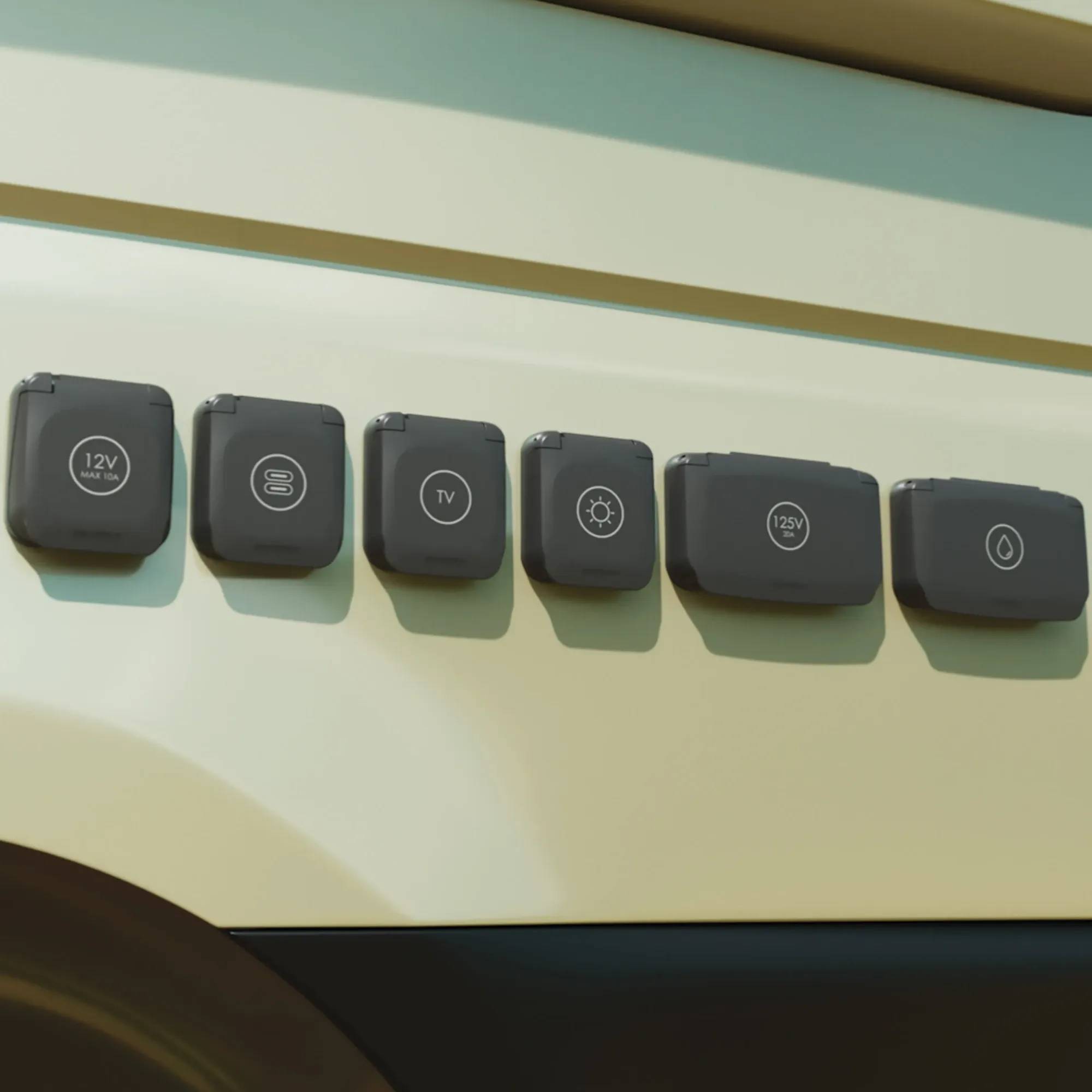

• Ventura Series exterior socket range
🧰 Installation Difficulty

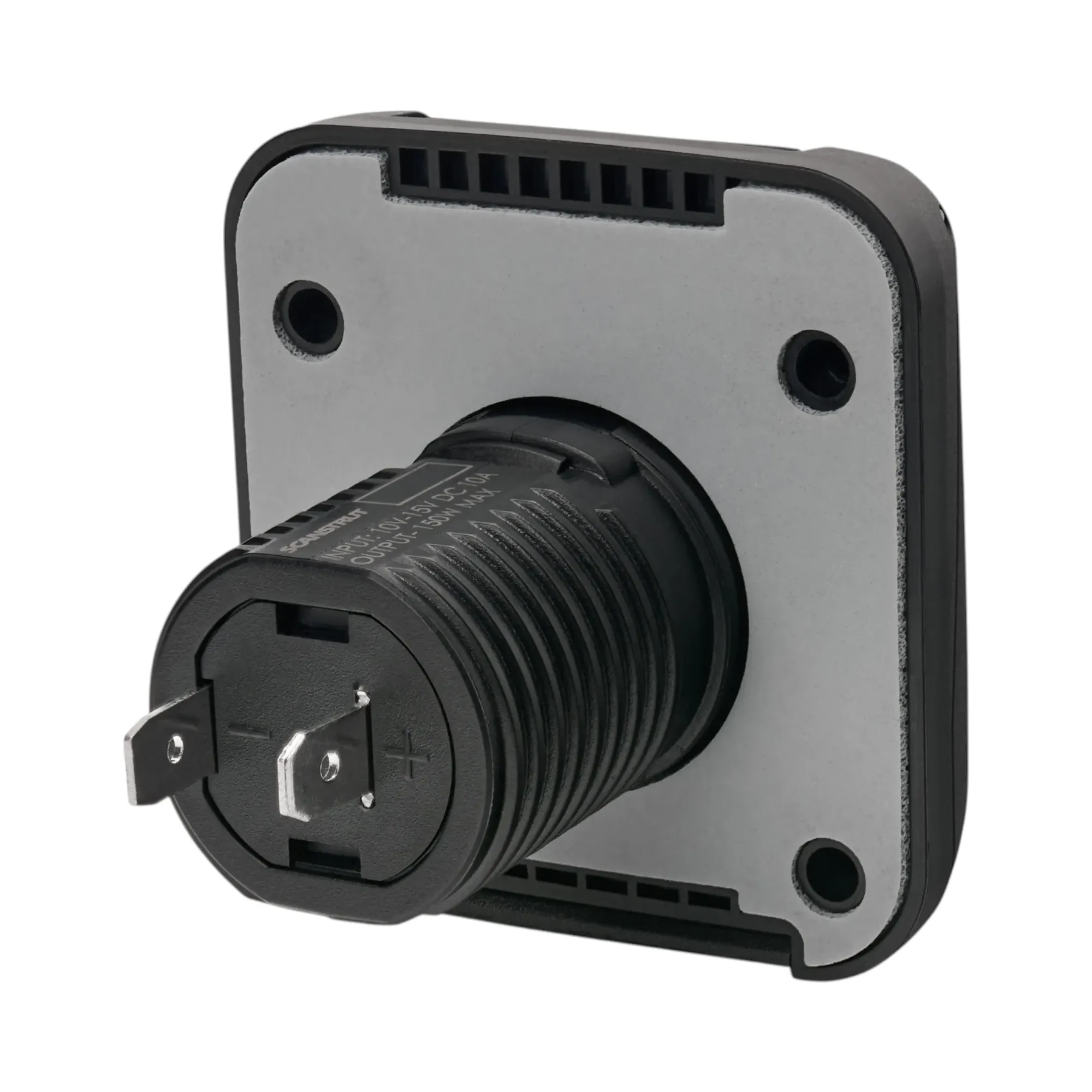

🟡 3/5 (Moderate) – requires standard 38mm hole saw cut-out with simple rear cable connection.
🔍 Features
• IP68 & IP69K rated (front only when lid closed)
• Premium click-to-close spring-loaded lid
• Built-in gasket for watertight seal
• Marine-grade 316 stainless steel hardware
• UV resistant construction
• Compact flush-mount design
• CE, ROHS, and WEEE certified
📊 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 10–15v DC (12v system only) |
| Max Input Current | 10A |
| Max Output | 150W |
| Standby Draw | approx 0.01W |
| Waterproof Rating | IP68, IP69K (front only when lid closed) |
| Installation Cut-Out | approx 32mm (1.25") |
| Material | 316 Stainless Steel Hardware |
| Certification | CE, ROHS, WEEE |
📦 What’s Included
• 1 × Ventura Series 12v Outlet
• Integrated gasket
🙌 Why Choose This Product?
The Ventura Series combines premium design with rugged performance. With marine-grade materials, high waterproof ratings, and a clean unified finish, this 12v outlet delivers dependable outdoor power while maintaining a sleek exterior look.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of Ventura Series exterior sockets and off-grid accessories.
Original: $64.40
-70%$64.40
$19.32Product Information
