Core USB-A + USBC Charger Socket Switchable 12-24v
📝 Core USB-A + USB-C Charger Socket Switchable 12–24V

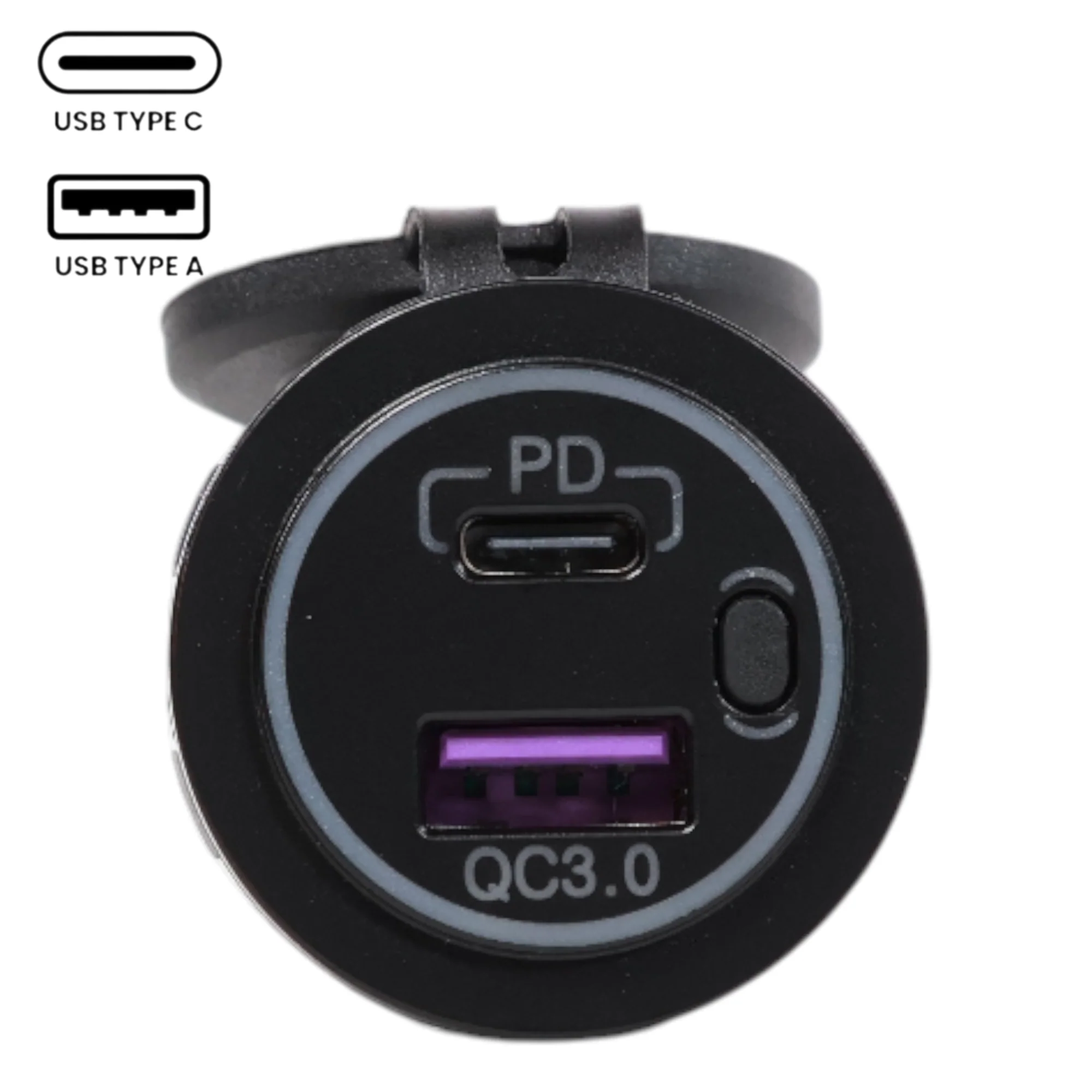

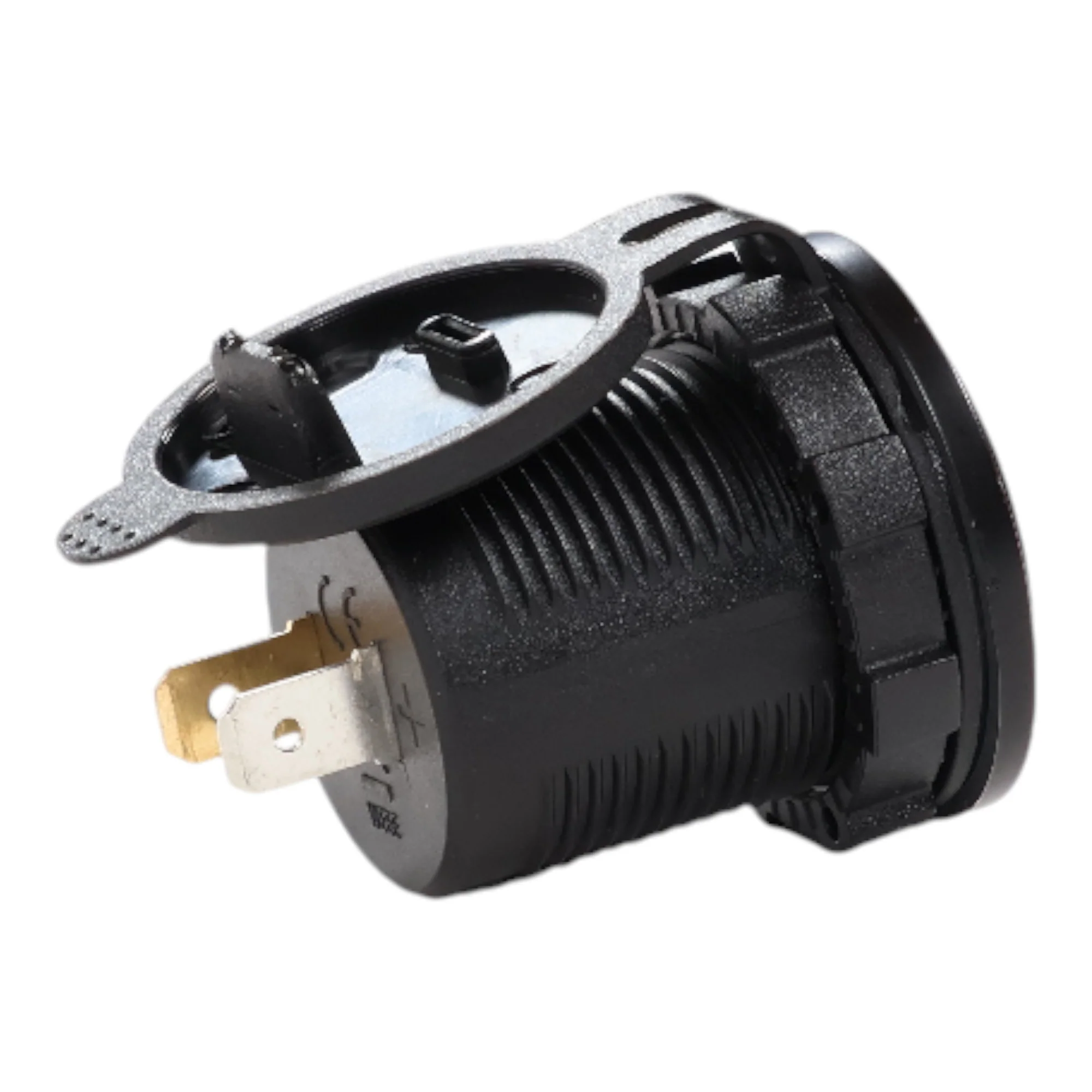

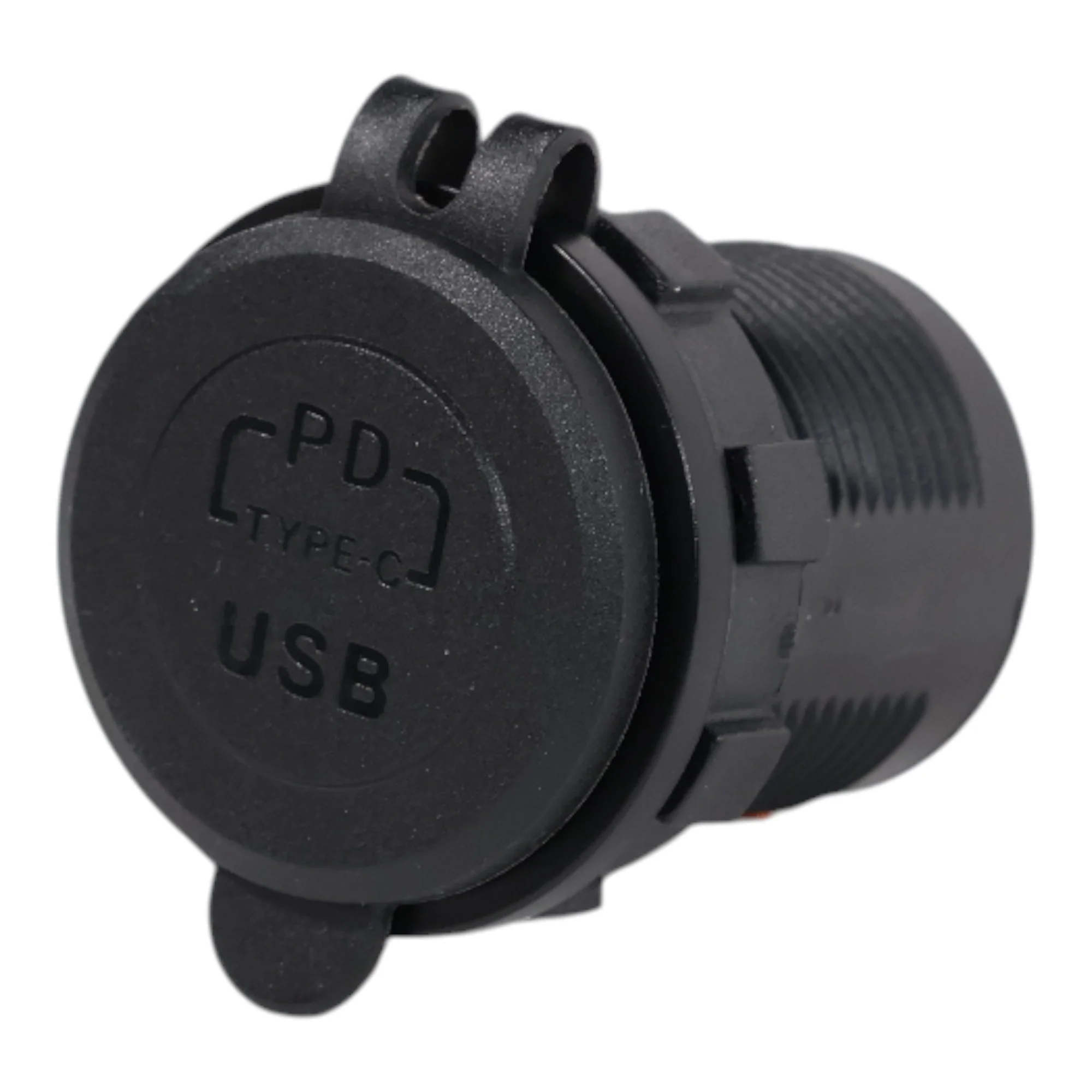

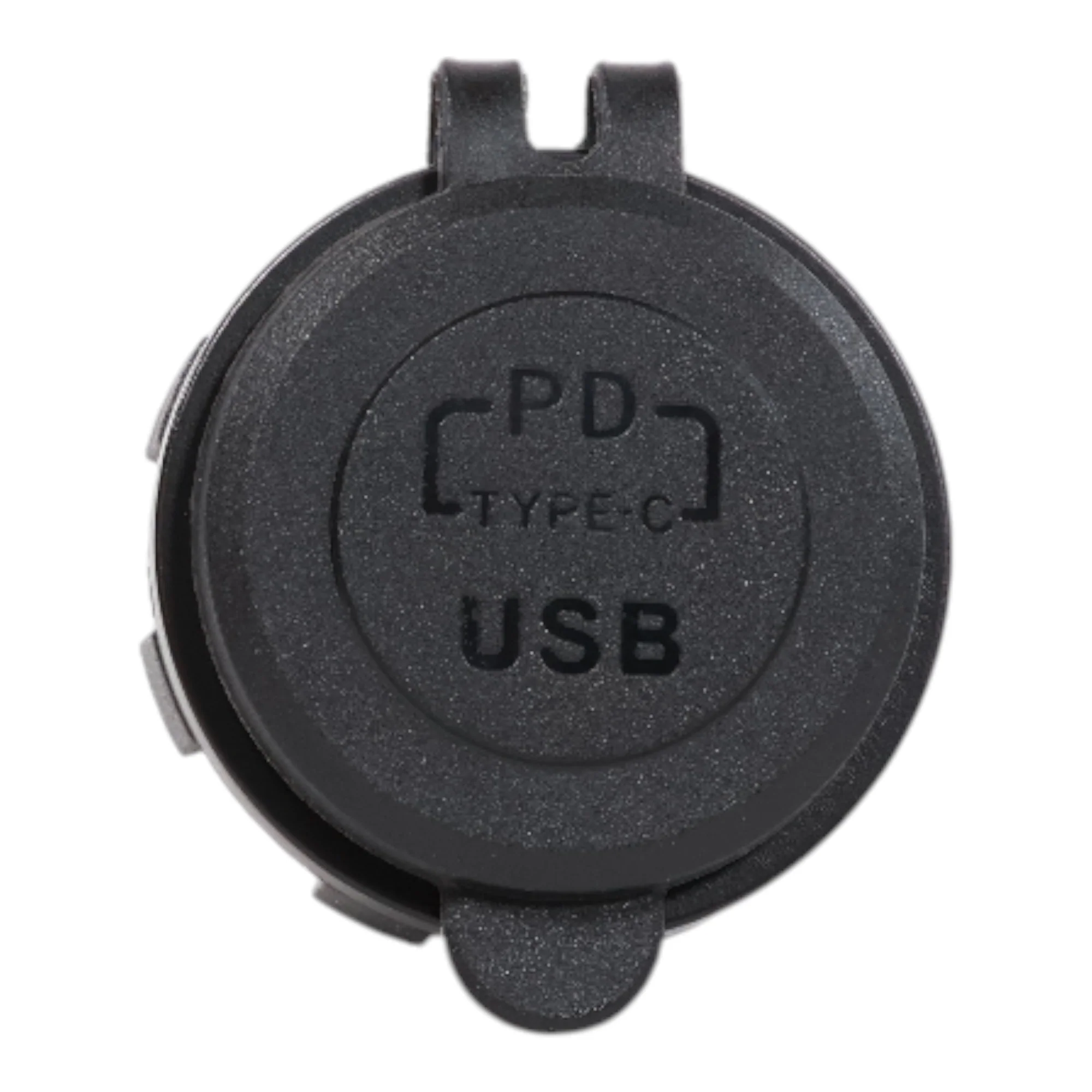

The Core USB-A + USB-C Charger Socket Switchable 12–24V delivers fast charging with smarter power control for off-grid and mobile setups. Featuring one USB-A QC3.0 port, one USB-C PD port, a built-in on/off switch, blue LED backlight, and a protective dust cap, this compact charger is ideal for caravans, campervans, RVs, 4WDs, and marine installations where efficiency and reliability matter.
⭐ Essential Benefits
• Switchable power control – Turn the charger off completely to prevent standby battery drain.
• Fast charging performance – QC3.0 USB-A and PD USB-C support phones, tablets, and laptops.
• Blue LED backlight – Clear night-time visibility without harsh glare.
• Protective dust cap – Helps shield ports from dust, dirt, and debris.
• 12–24V compatibility – Works across vehicle, marine, and off-grid systems.
• Flush-mount design – Clean, professional installation finish.
⚙️ Functionality
The Core charger mounts into a standard 29mm panel cutout and connects directly to a 12v or 24v DC supply. The integrated on/off button allows you to fully disable the charger when not required, reducing unnecessary battery drain. When switched on, both USB ports deliver fast, stable charging, while the dust cap adds extra protection during travel or off-road use.
🔌 Compatibility
• Works with 12v and 24v DC systems
• Suitable for caravans, campervans, RVs, 4WDs, and boats
• Charges phones, tablets, GPS units, cameras, and USB-C laptops
🧰 Installation Difficulty
🟢 2/5 (Easy)
Requires a standard panel cutout and basic DC wiring.
🔍 Features
• Ports – 1 × USB-A QC3.0, 1 × USB-C PD
• Power control – Integrated on/off switch
• Backlight – Blue LED ring around the face
• Protection – Dust-resistant cap
• Mounting style – Flush panel mount
• Housing – Durable ABS construction
📊 Specifications
| Specification | Value |
|---|---|
| Input Voltage | 12–24v DC |
| USB-A Output | QC3.0 |
| USB-C Output | Power Delivery (PD) |
| Total Ports | 2 (1 × USB-A, 1 × USB-C) |
| Mounting Hole Size | Approx 29mm |
| Product Dimensions | Approx 36mm face × 50mm depth |
| LED Backlight | Blue |
| Protective Cap | Yes |
| Housing Material | ABS |
📦 What’s Included
• 1 × Core USB-A + USB-C Charger Socket Switchable 12–24V
• 1 × Locking nut
• 1 × Protective dust cap
• 2 × Female spade connectors
🙌 Why Choose This Product?
The Core Switchable Charger offers the perfect balance of performance and control. With fast charging, a true on/off switch to save battery power, and added protection for harsh environments, it’s a smart upgrade for any off-grid or touring setup.
🚀 Our Promise
Order today for same-day dispatch and enjoy dependable charging hardware built for real-world travel and off-grid use.
