000 B&S Single Core Battery Cable - Up to 335Amp
📝 000 B&S Single Core Battery Cable – Up to 335A | Australian Made
Power your most demanding applications with the 000 B&S Single Core Battery Cable – Up to 335A, the ultimate high-capacity solution for heavy-duty electrical systems. Proudly Australian made, this premium cable delivers exceptional performance, reliability, and conductivity. Designed for dual battery systems, caravans, trucks, winches, and auxiliary power setups, it ensures consistent, efficient energy transfer in the harshest conditions.
⭐ Essential Benefits
• Extreme amp capacity – rated up to 335 amps at 30°C, handling the heaviest electrical loads with ease.

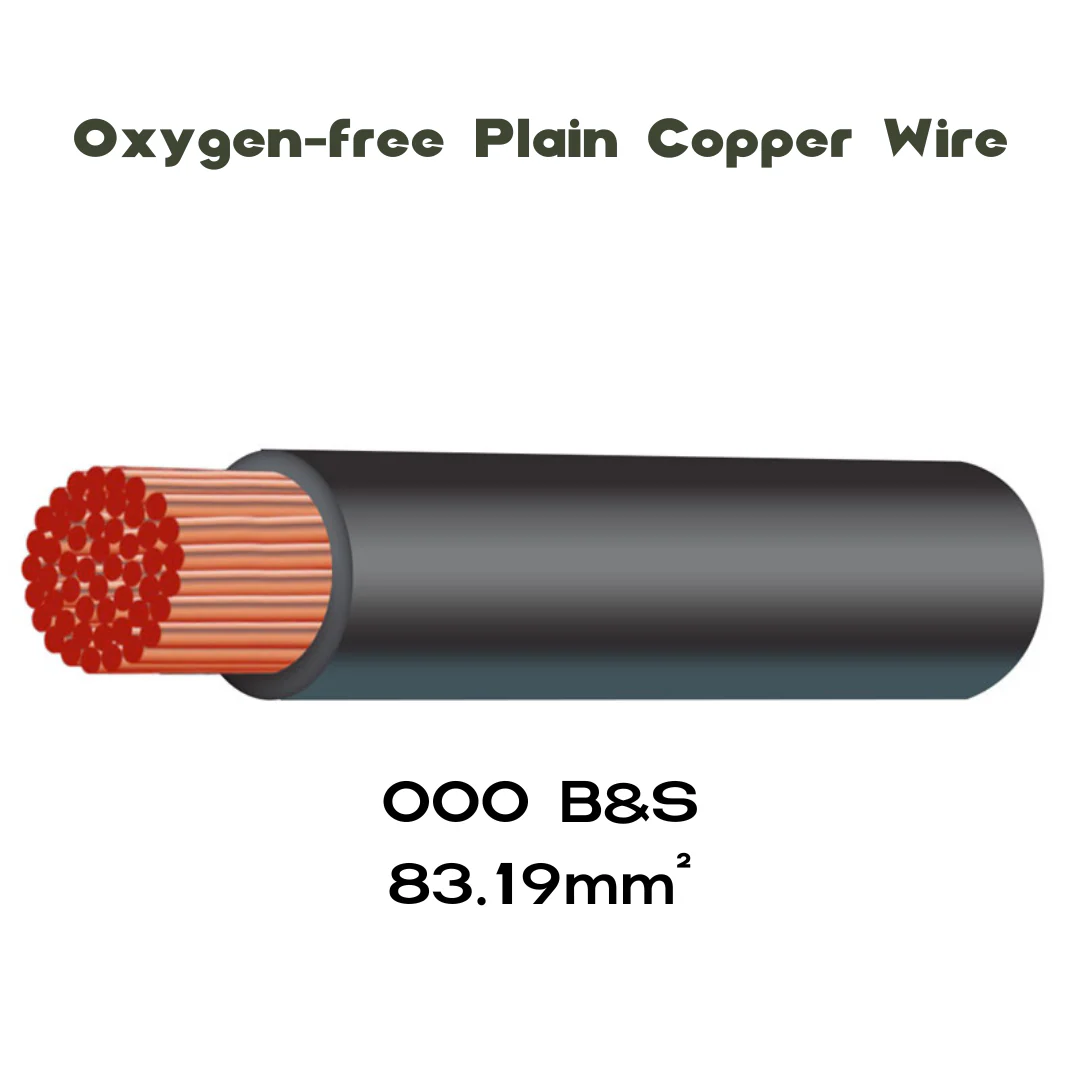

• Superior construction – built from 83.19mm² oxygen-free copper, ensuring outstanding conductivity and flexibility.
• Rugged insulation – double-insulated with V90 PVC, compliant with AS/NZS 3808 for superior protection and durability.
• Custom length options – available by the metre for precise installations, or in 10m / 30m rolls for larger projects.

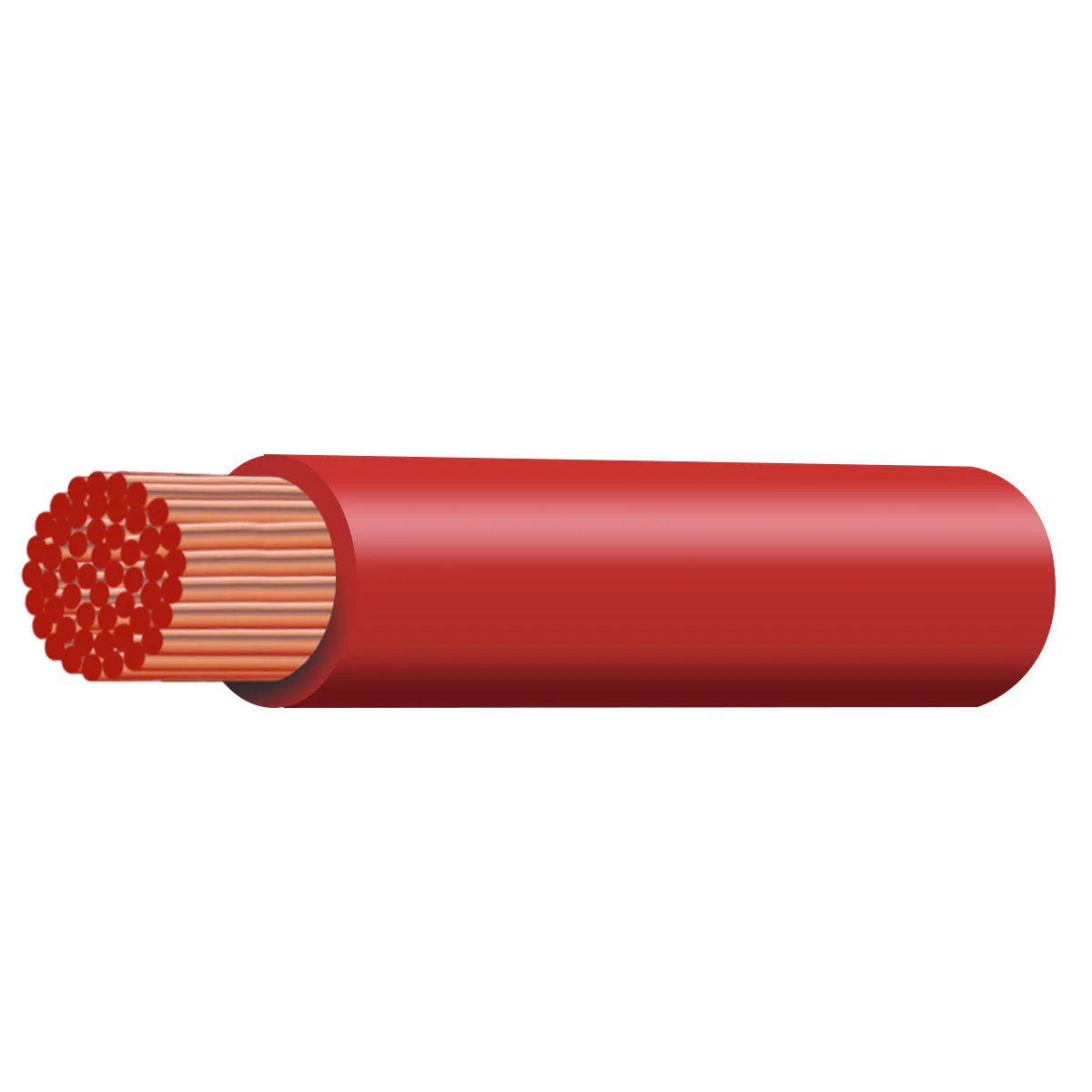

• Colour-coded sheaths – available in red and black for quick polarity identification and clean installation.
• Australian made – manufactured to strict local standards for quality, safety, and reliability.
⚙️ Functionality
The 000 B&S single core cable provides unmatched current capacity for high-performance systems such as winches, inverter setups, and large battery installations. Its large copper conductor and low resistance design guarantee efficient power delivery, while the thick PVC insulation protects against heat, vibration, and abrasion. Ideal for professional-grade off-grid and industrial electrical systems.
🔌 Compatibility
• Suitable for 12v and 24v DC electrical systems
• Perfect for 4WDs, caravans, and trucks
• Ideal for dual battery, inverter, winch, and high-current auxiliary setups
🧰 Installation Difficulty
🟢 1/5 (Easy) – flexible and simple to install despite its heavy-duty rating.
🔍 Features
• Single-core oxygen-free copper conductor (99.98% purity)
• Rated to 335A continuous load at 30°C
• Double-insulated with V90 PVC (RoHS compliant)
• Meets AS/NZS 3808 and AS/NZS 1125 standards
• Excellent flexibility and thermal resistance
• Available in black or red outer sheaths
• Sold per metre or in 10m / 30m rolls
📊 Specifications
| Specification | Detail |
|---|---|
| Amp Rating (30°C) | 335A |
| Nominal Area | 83.19mm² |
| Electrical Resistance @ 20°C | 0.5 Ω/km |
| Insulation Material | V90 PVC (AS/NZS 3808) |
| Nominal OD | 16.4mm |
| Sheath Colour | Black / Red |
| Length Options | Per Metre / 10m / 30m |
| Weight (per 100m) | Heavy copper mass for premium conductivity |
📦 What’s Included
• 1 × 000 B&S (83.19mm²) 335A V90 PVC Insulated Single Core Battery Cable (Sold by selected length)
