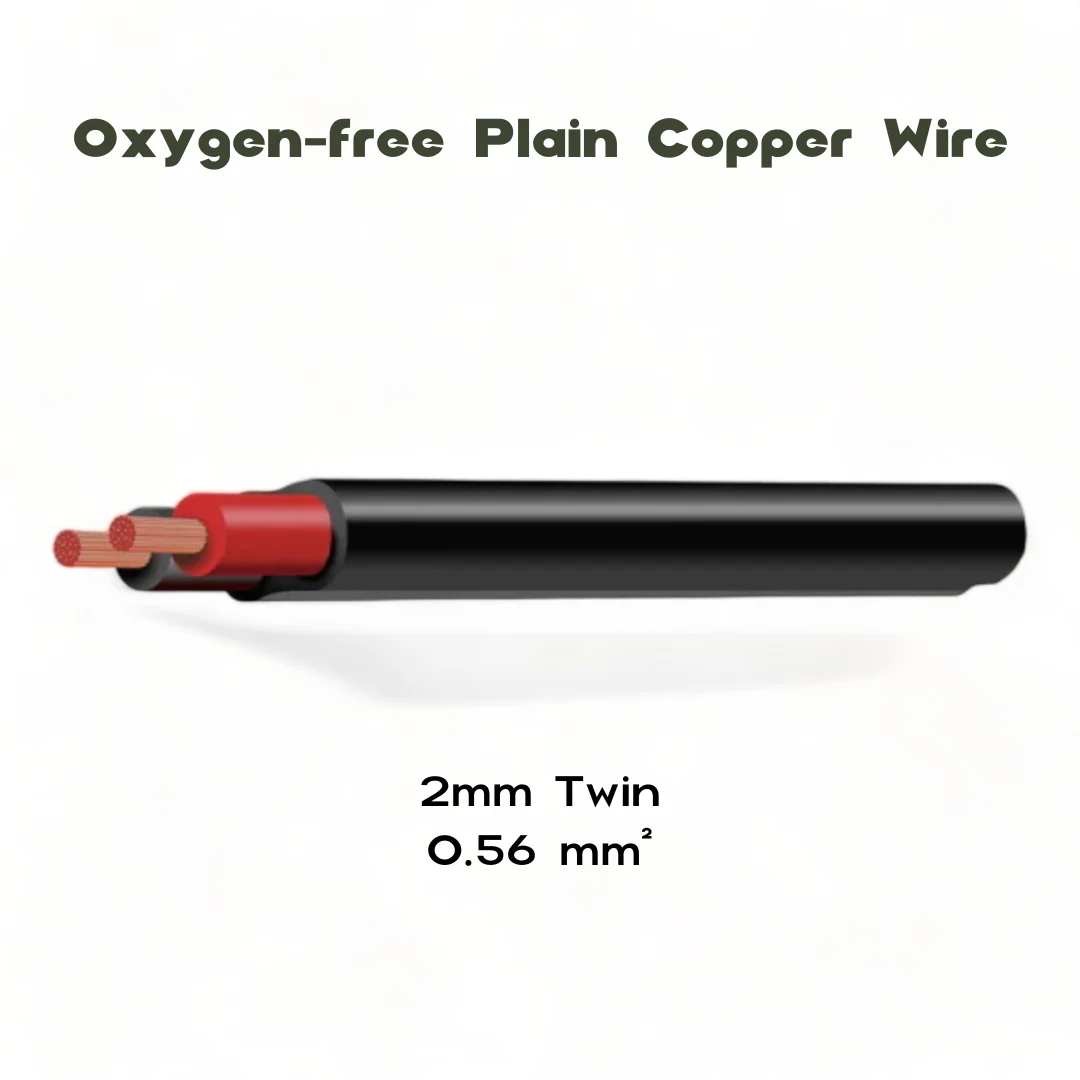

Twin Sheath Cable - 2mm Auto Size (0.56mm²) 7Amp - V90 PVC Insulated

📝 Twin Sheath Cable – 2mm Auto Size (0.56mm²) 7A V90 PVC Insulated

Power your low-amp electrical systems with confidence using the Twin Sheath Cable – 2mm Auto Size (0.56mm²) 7A. Designed for compact efficiency, this twin-core cable is built with 99.98% oxygen-free copper to deliver excellent conductivity and long-term reliability. Perfect for lighting, accessories, and low-current automotive, caravan, or marine circuits, it’s a dependable solution for precise and secure wiring.

⭐ Essential Benefits

• High conductivity – crafted from 99.98% oxygen-free copper for maximum current flow and minimal resistance.
• Safe and efficient – rated at 7 amps, ideal for lighting, sensors, and low-power accessories.
• Durable protection – insulated with V90 PVC, compliant with AS/NZS 3808 for superior heat and abrasion resistance.
• Compact design – easy to route and install with a nominal OD of 3.7mm × 5.6mm.
• Flexible length options – available in 1m or 100m rolls to suit small or large projects.
• Colour-coded cores – offered in Red/Black or Brown/White for clear polarity identification.

⚙️ Functionality

This 2mm twin sheath cable offers a balance of flexibility and toughness for low-current wiring setups. The oxygen-free copper core provides excellent conductivity, while the V90 PVC insulation ensures long-lasting performance and safety. Ideal for 12v and 24v systems, it’s the go-to cable for compact, reliable installations.

🔌 Compatibility

• Suitable for 12v and 24v DC systems
• Ideal for automotive, caravan, and marine electrical systems
• Perfect for lighting, sensors, and small electronic accessories

🧰 Installation Difficulty

🟢 1/5 (Easy) – compact, flexible, and simple to install in confined wiring areas.

🔍 Features

• Twin-core oxygen-free copper conductors
• Double-insulated with V90 PVC (RoHS compliant)
• Extra flexible outer sheath for easy routing
• Rated for 7A continuous load
• Built to AS/NZS 3808 and AS/NZS 1125 standards
• Available in Red/Black or Brown/White core colours

📊 Specifications

Specification	Detail
Industry Standard Size	2mm
Nominal Conductor Area	0.56mm²
Amp Rating	7A
Resistance @ 20°C	45.00 Ω/km
Conductor Material	99.98% Oxygen-Free Copper
Insulation Material	V90 PVC (AS/NZS 3808)
Nominal OD	3.7mm × 5.6mm
Core Colours	Red/Black or Brown/White
Length Options	1m / 100m

📦 What’s Included

• 1 × Twin Sheath 2mm (0.56mm²) 7A V90 PVC Insulated Cable (Sold by length option)
