Starlink Gen 3 Plug and Play 12V Conversion Kit

📝 Starlink Gen 3 Plug and Play 12V Kit

Power your Starlink Gen 3 directly from a 12V or 24V DC system and ditch the bulky inverter and factory router. This plug-and-play kit is designed for off-grid caravans, campervans, RVs, boats, work vehicles, and remote setups where efficiency, reliability, and simplicity really matter.

By converting DC battery power straight to the voltages Starlink and your router need, this kit reduces overall power consumption, simplifies wiring, and keeps your system compact and tidy – perfect for serious travellers and off-grid users.

---

⭐ Essential Benefits

• Lower power consumption – avoid inverter losses and AC brick waste by running Starlink directly from DC.
• True plug-and-play – no cutting Starlink cables, no custom wiring, no risk of voiding your Starlink warranty.
• All-in-one DC solution – integrated 12/24V–56V converter, PoE injector and regulated 12V router output in a single box.
• Perfect for mobile & off-grid – designed for vans, RVs, boats, 4WDs, off-grid shacks and remote worksites.
• Router included – comes with a TP-Link Archer AX10 WiFi 6 router for fast, modern wireless performance.
• Flexible power options – connect to batteries, DC systems or portable power stations via the included cabling.

---

⚙️ Functionality

The Starlink Gen 3 Plug and Play 12V Kit takes 10–30V DC input (12V or 24V battery systems) and:

• Steps it up to 56V PoE to power your Starlink Gen 3 dish, and

• Provides a regulated 12V DC output for the included TP-Link Archer AX10 router (or other compatible 12V routers).

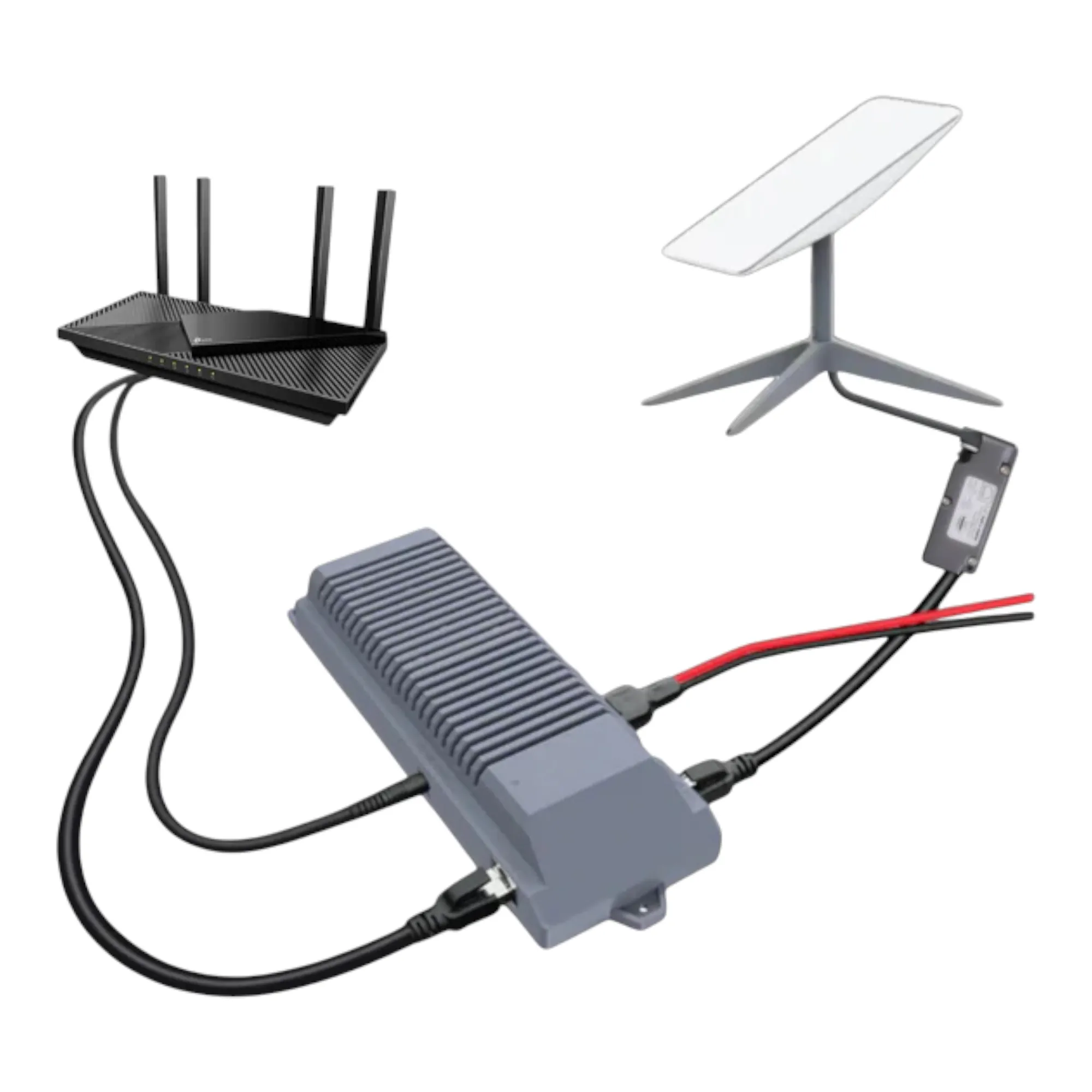

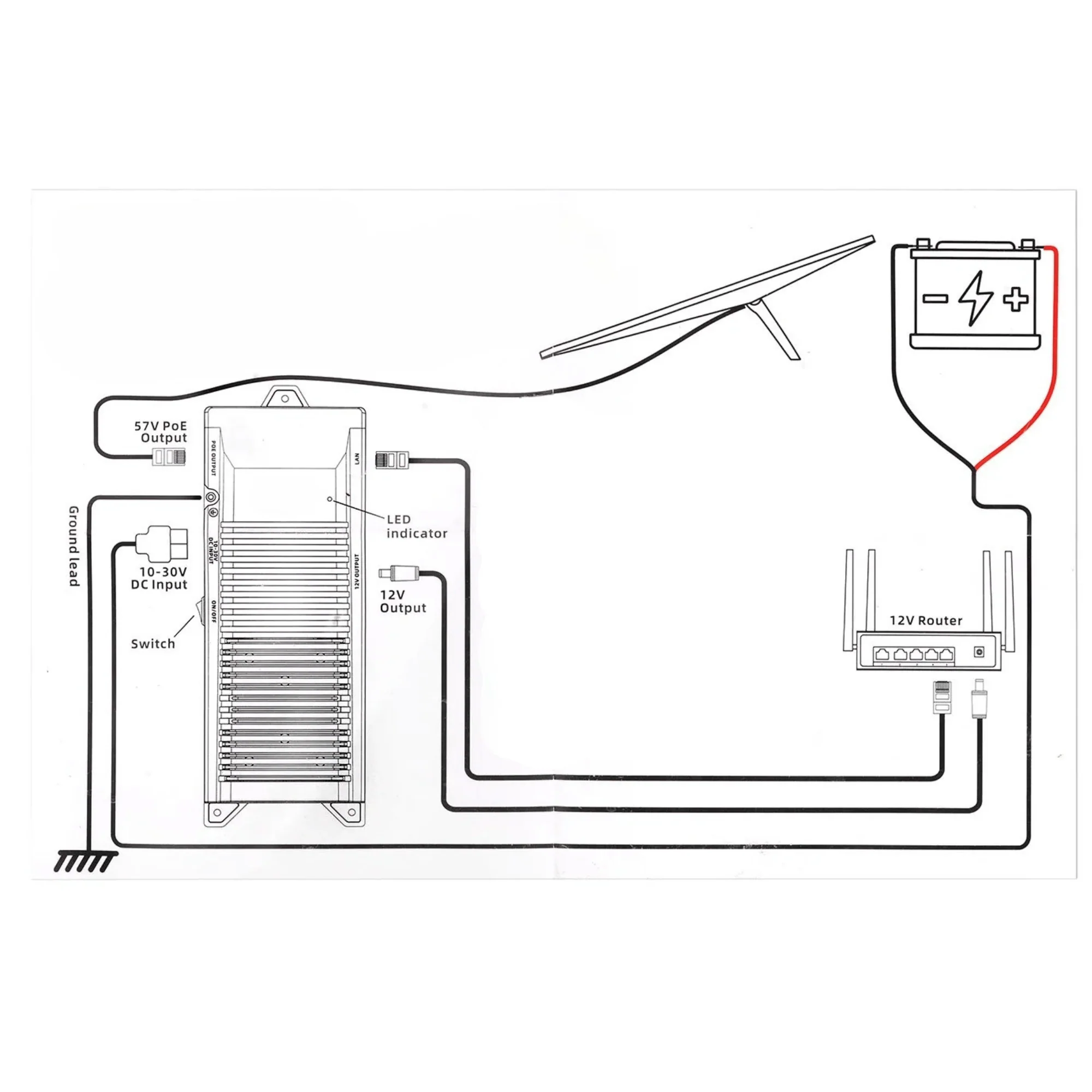

Simply:

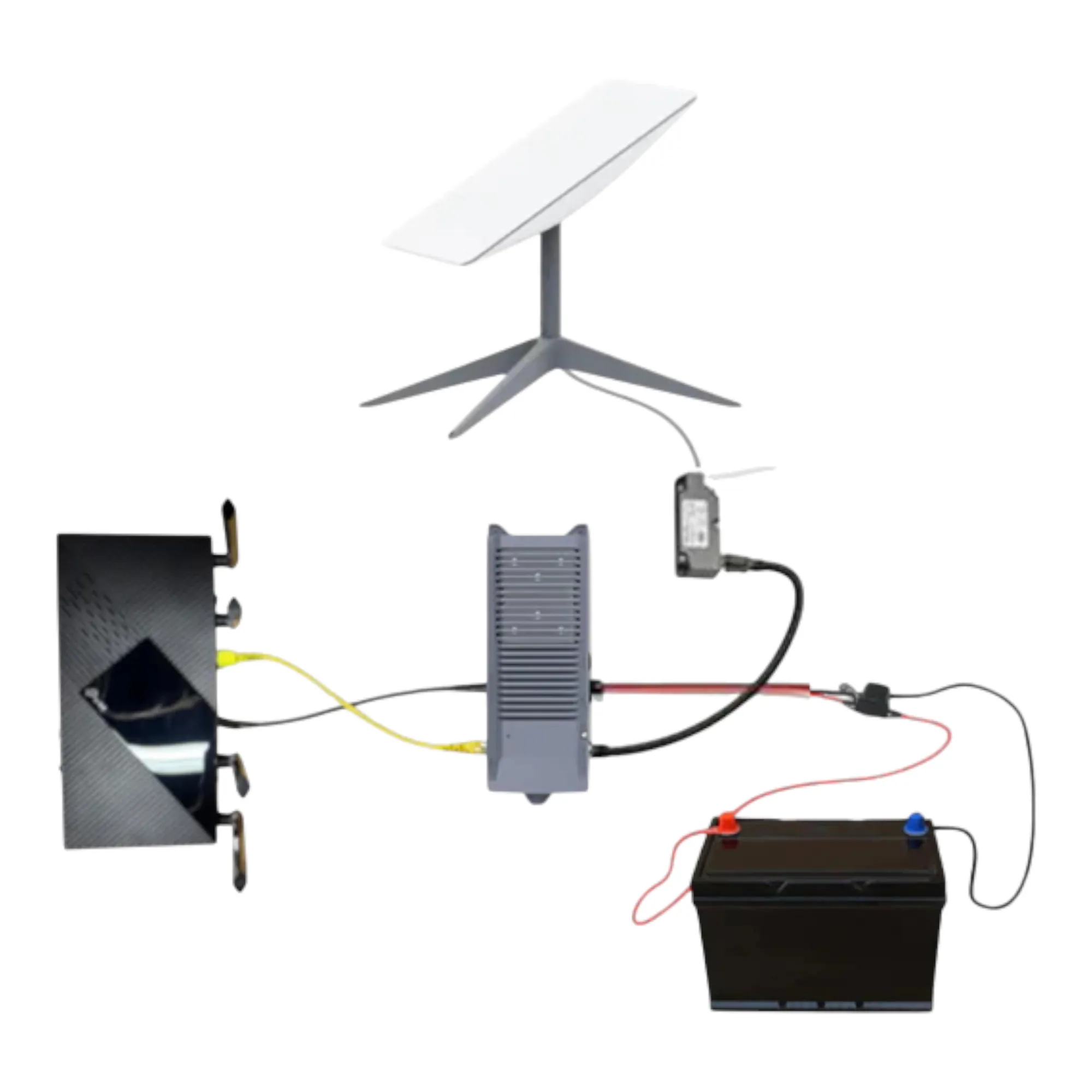

1. Connect the DC conversion unit to your 12V or 24V system using the supplied power cables (ring terminal to Anderson or hardwire).

2. Plug the Starlink Gen 3 dish cable into the PoE/Starlink output.

3. Connect the RJ45 cable between the PoE unit and the router WAN port.

4. Power up and enjoy Starlink over WiFi – no inverter, no Starlink router, no cable mods required.

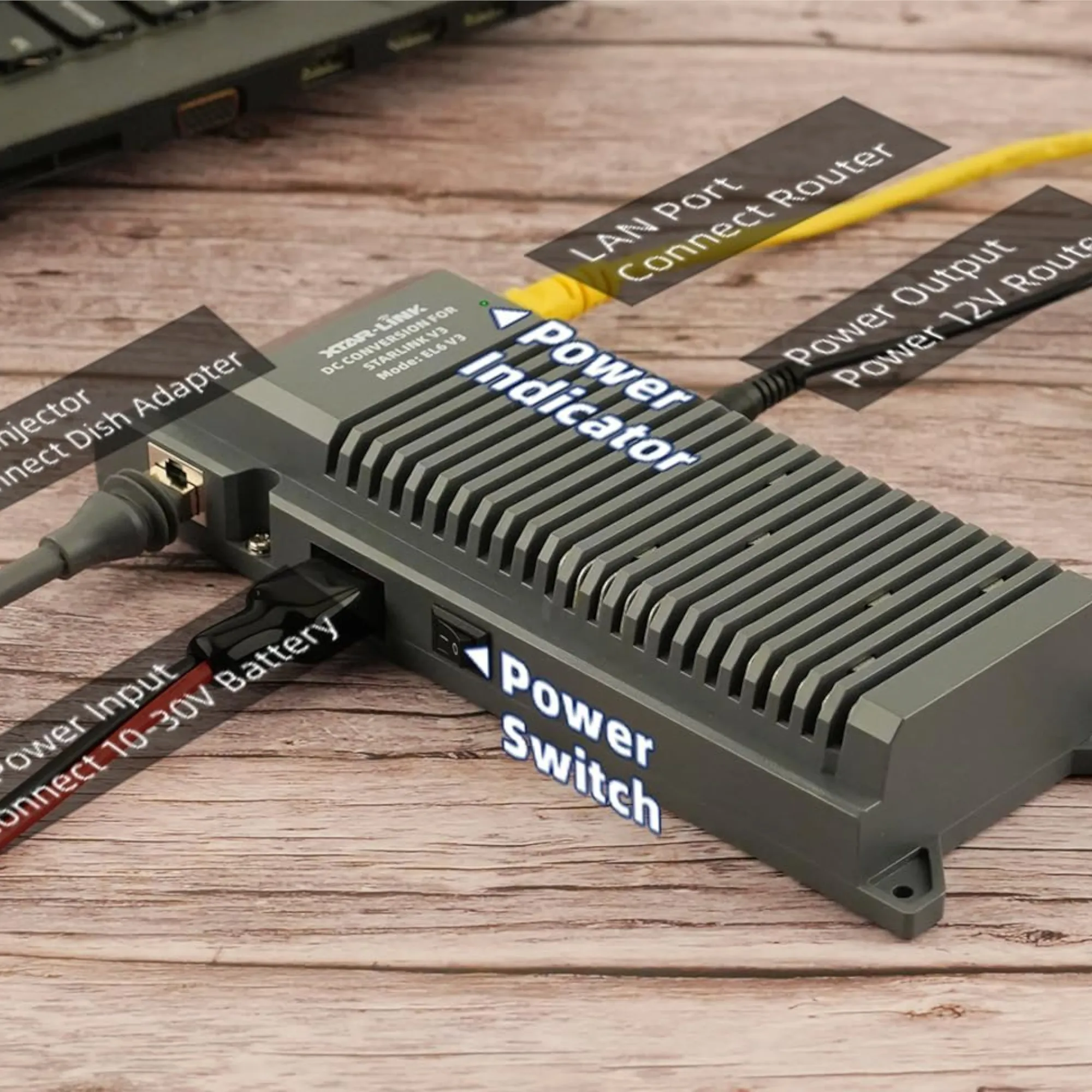

The built-in fuses, power switch and indicator light make it easy to operate and diagnose. The enclosure is designed for mobile environments, helping keep your connectivity stable on corrugated tracks, on the water, or at remote camps.

🔔 Note: Using the Snow Melt function adds ~120W to power draw.

---

🔌 Compatibility

• Compatible with: Starlink Gen 3 dish (using your own hardware)
• Input systems:

• 12V battery systems (min recommended: 12V / 15A capable)

• 24V battery systems (min recommended: 24V / 10A capable)

• Suitable for lithium, AGM, flooded, etc.

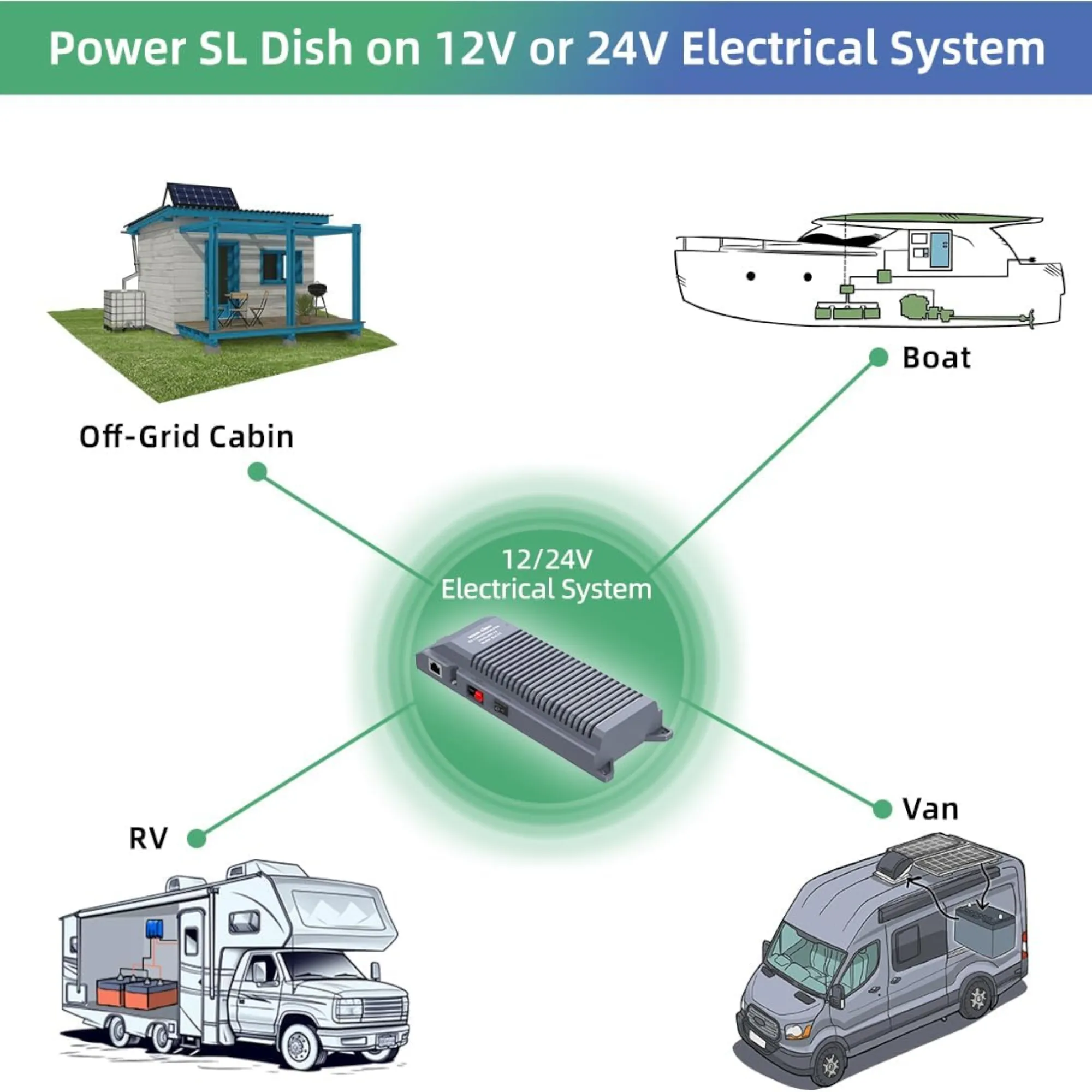

• Ideal for:

• Caravans, campervans, RVs, 4WDs

• Boats and marine setups

• Off-grid cabins, tiny homes, job sites

• Portable power stations (with suitable DC output)

❗ Starlink dish and battery not included.

---

🧰 Installation Difficulty

🟡 3/5 (Moderate) – basic DC wiring skills recommended.

---

🔍 Features

• Integrated 12/24V–56V PoE DC conversion
• 12V regulated router output
• Includes TP-Link Archer AX10 WiFi 6 router
• Built-in fuses and main power switch
• Power indicator LED
• Compact and robust housing
• Designed for mobile & off-grid applications
• Plug-and-play – no Starlink cable modification

---

📊 Specifications

Specification	Detail
Product Name	Starlink Gen 3 Plug and Play 12V Kit
Output Type	DC
Input Voltage	10–30V DC (12V/24V systems)
Starlink Output	56V PoE
Router Output	12V DC (for Archer AX10 or compatible routers)
Included Router	TP-Link Archer AX10 WiFi 6
Recommended Supply	Min 12V 15A or 24V 10A
Snow Melt Load	+120W when active
Housing	Plastic enclosure with switch & fusing
Assembly Weight	~1.171 kg
Package Dimensions	200 × 200 × 75 mm
Colour	Grey

---

📦 What’s Included

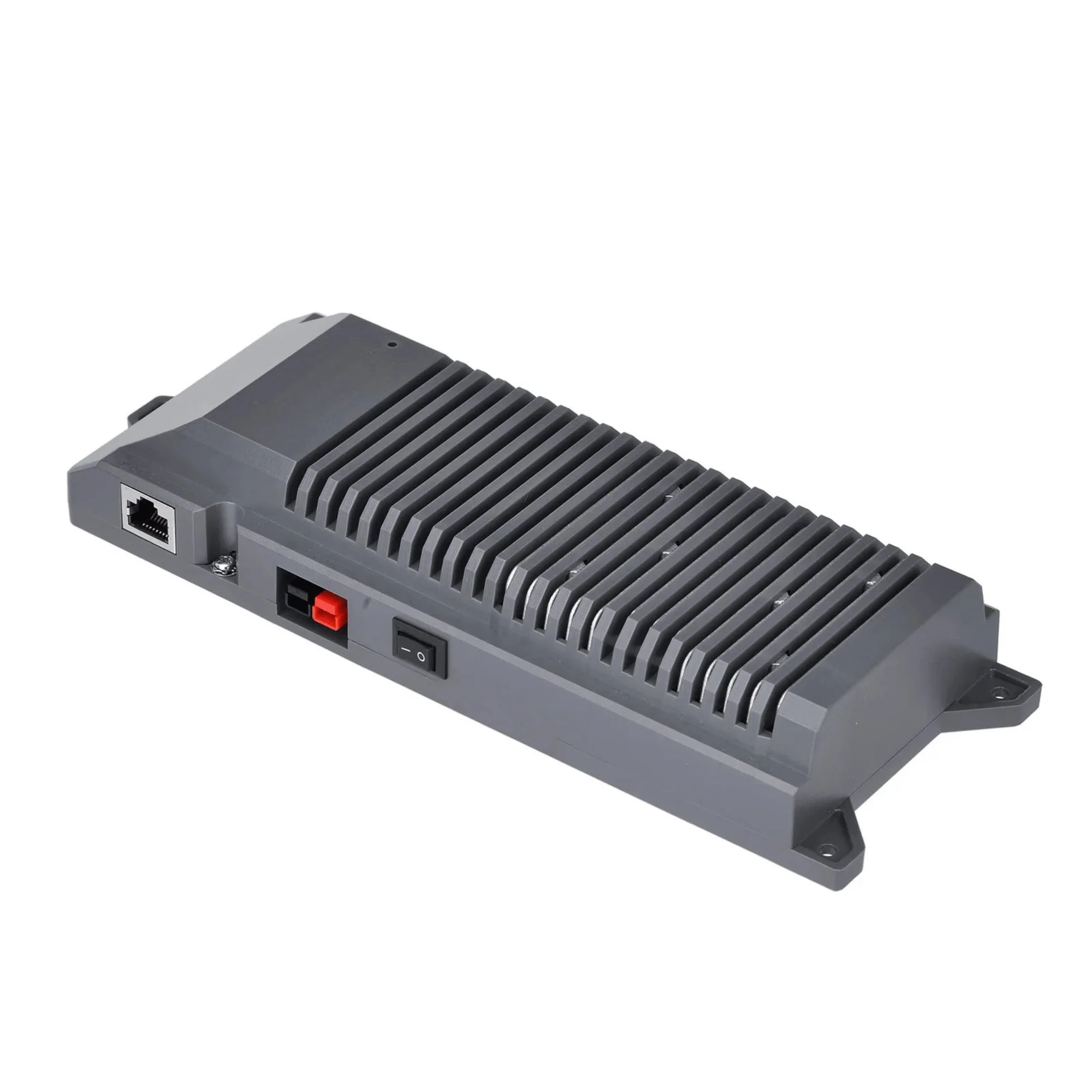

• 1 × DC Conversion Unit (12/24V → 56V PoE + 12V output)
• 1 × M8 O-ring to Anderson power cable
• 1 × DC5521 male to DC5521 male 12V router power cable
• 1 × RJ45 to RJ45 Ethernet cable

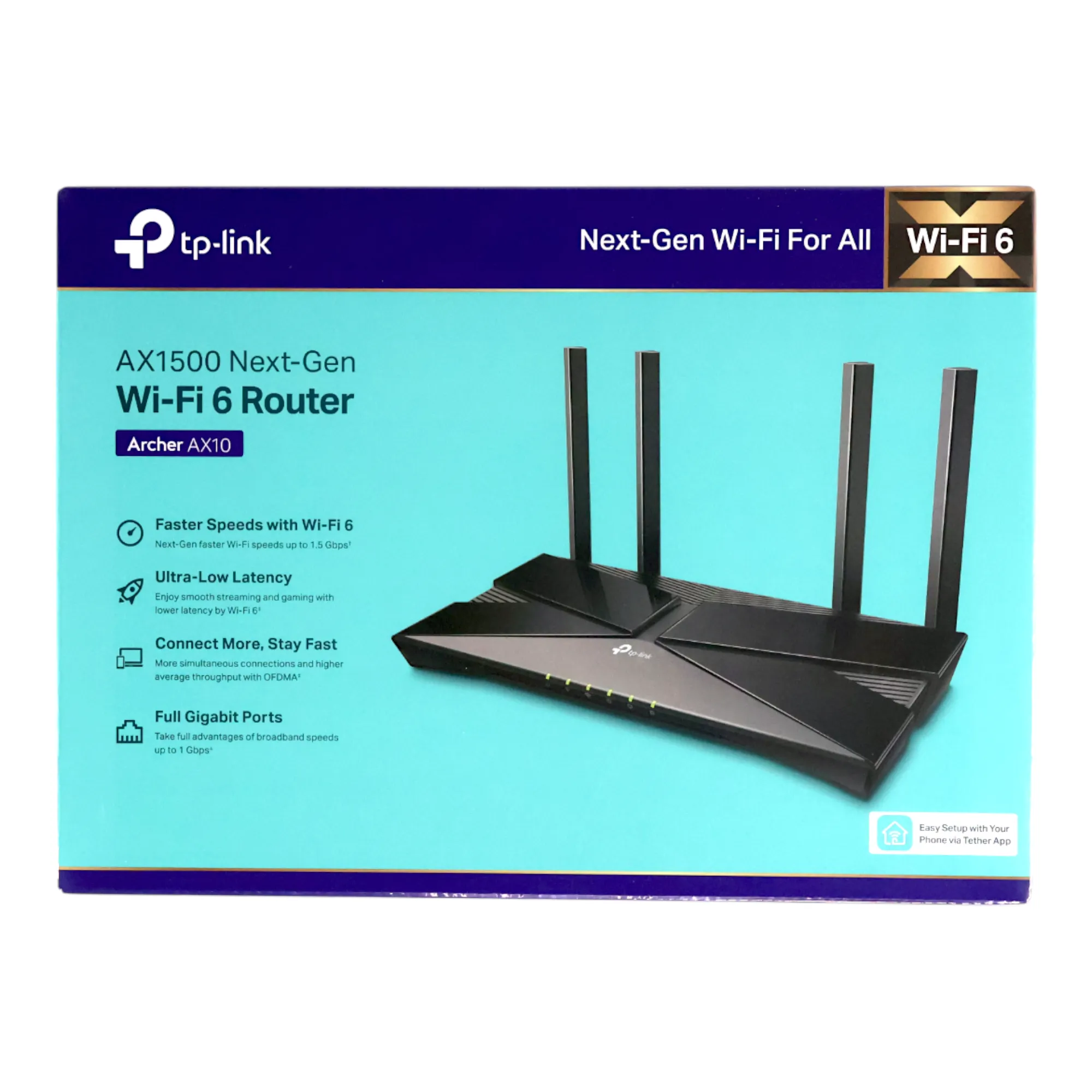

• 1 × TP-Link Archer AX10 WiFi 6 Router

💡 Consider Pairing with:

For a more secure and streamlined installation, consider adding the CAT6 Starlink Caravan/Campervan Waterproof Wall Socket. This accessory allows you to easily route your Starlink cables through your vehicle’s walls while keeping the connections protected from the elements.

NOTE: This is the 12v Kit only. Starlink and battery are not included.
