Renogy Rover Li 30 Amp MPPT Solar Charge Controller

📝 Renogy Rover Li 30A MPPT Solar Charge Controller

(BT-1 Module included)

Maximise your solar efficiency with the Renogy Rover Li 30A MPPT Solar Charge Controller, engineered to deliver exceptional charging precision and reliability for off-grid power systems. Designed for 12V and 24V battery setups, this advanced controller harnesses up to 99% tracking efficiency to extract maximum energy from your solar panels — even under cloudy or variable sunlight conditions.

Constructed from durable die-cast aluminium, the Rover Li 30A offers superior heat dissipation and long-term reliability. Supporting Gel, Flooded, Sealed, and Lithium batteries, it’s the perfect addition to solar systems in caravans, 4WDs, RVs, and marine environments.

⭐ Essential Benefits

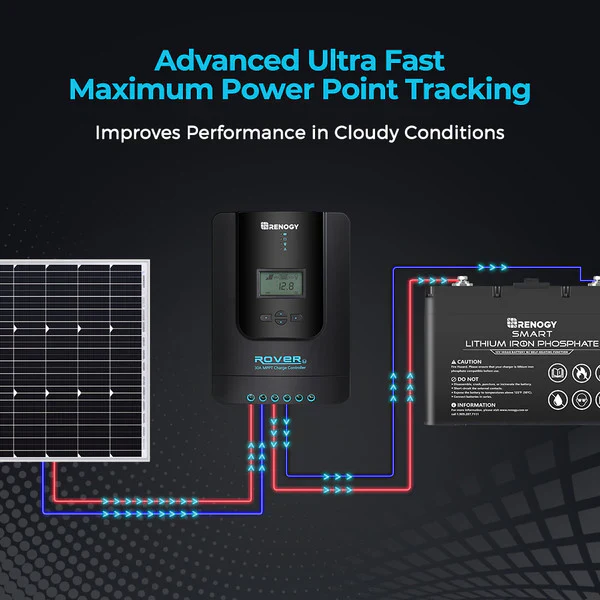

• MPPT Technology – advanced Maximum Power Point Tracking delivers up to 99% efficiency, optimising energy harvest from solar panels.
• Smart Voltage Detection – automatically recognises 12V or 24V systems for simple setup and reduced user error.
• Full System Protection – safeguards against reverse polarity, short circuit, overload, and over/under-voltage events.
• 4-Stage Charging – precise charging profiles (Bulk, Absorption, Float, Equalisation) extend battery life and improve performance.
• Lithium Reactivation Mode – safely revives Lithium batteries from low-voltage protection mode.
• Real-Time Data Display – LCD screen with LED indicators provides live feedback on solar input, battery status, and charge stage.
• Rugged Design – die-cast aluminium housing ensures optimal cooling and protection in demanding off-grid conditions.

⚙️ Functionality

The Renogy Rover Li 30A MPPT intelligently regulates power from your solar panels to your battery bank, maximising charging efficiency and preventing damage from overcharging or discharging. It adapts automatically to system voltage and battery chemistry, maintaining peak performance under all weather and load conditions.

🔌 Compatibility

• Compatible with 12V and 24V systems
• Works with AGM, Gel, Flooded, and Lithium battery types
• Suitable for solar systems in RVs, caravans, 4WDs, boats, and off-grid homes

🧰 Installation Difficulty

🟡 3/5 (Moderate) – requires basic 12v wiring and solar system setup knowledge; straightforward with clear terminal labelling.

🔍 Features

• 30A rated charging current
• 12/24V auto-detection system
• MPPT efficiency up to 99%, conversion efficiency up to 98%
• 4-stage charging for Lead-Acid batteries, 2-stage for Lithium
• LCD and LED system status indicators
• Full suite of electrical protections
• IP32 enclosure for indoor and protected installations
• Die-cast aluminium casing for enhanced cooling and durability

📊 Specifications

Specification	Detail
System Voltage	12V / 24V (Auto Recognition)
Rated Charge Current	30A
Max PV Input Power	12V: 400W / 24V: 800W
Max PV Input Voltage	100VDC
Self-Consumption	<100mA (12V), <58mA (24V)
Boost Voltage	Sealed: 14.4V / Flooded: 14.6V / Gel: 14.2V / Lithium: 14.4V
Float Voltage	Sealed/Flooded/Gel: 13.8V
Equalisation Voltage	Sealed: 14.6V / Flooded: 14.8V
Operating Temperature	-35°C to 45°C
Temperature Compensation	-3mV/°C/2V
Enclosure Rating	IP32
Terminals	Up to 8 AWG

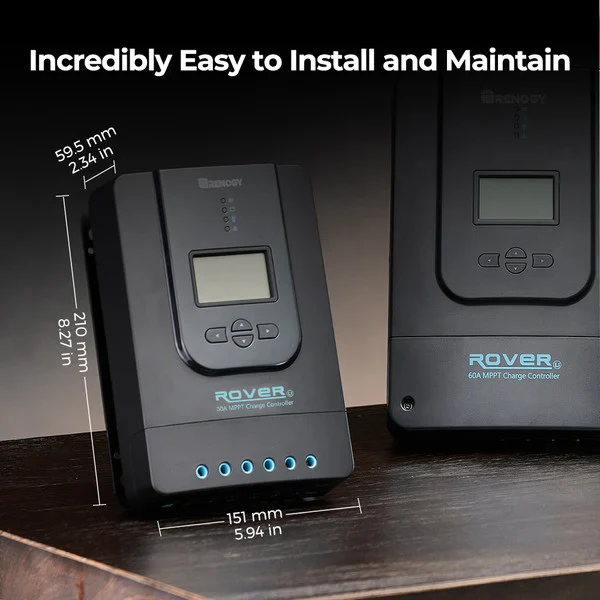

Dimensions (L×W×H)	210 × 151 × 59.5 mm
Weight	1.4kg

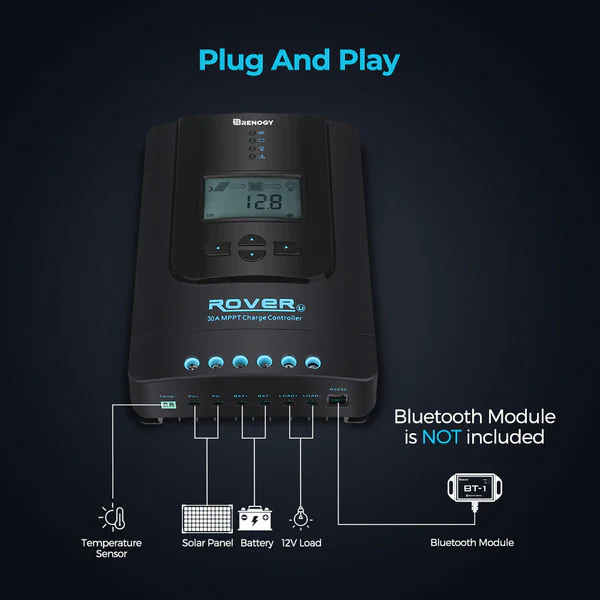

📦 What’s Included

• 1 × Renogy Rover Li 30A MPPT Solar Charge Controller
• 1 × Remote Temperature Sensor (3m Cable)
• 1 × Mounting Hardware Kit
