LP Multi Cable Seal Black

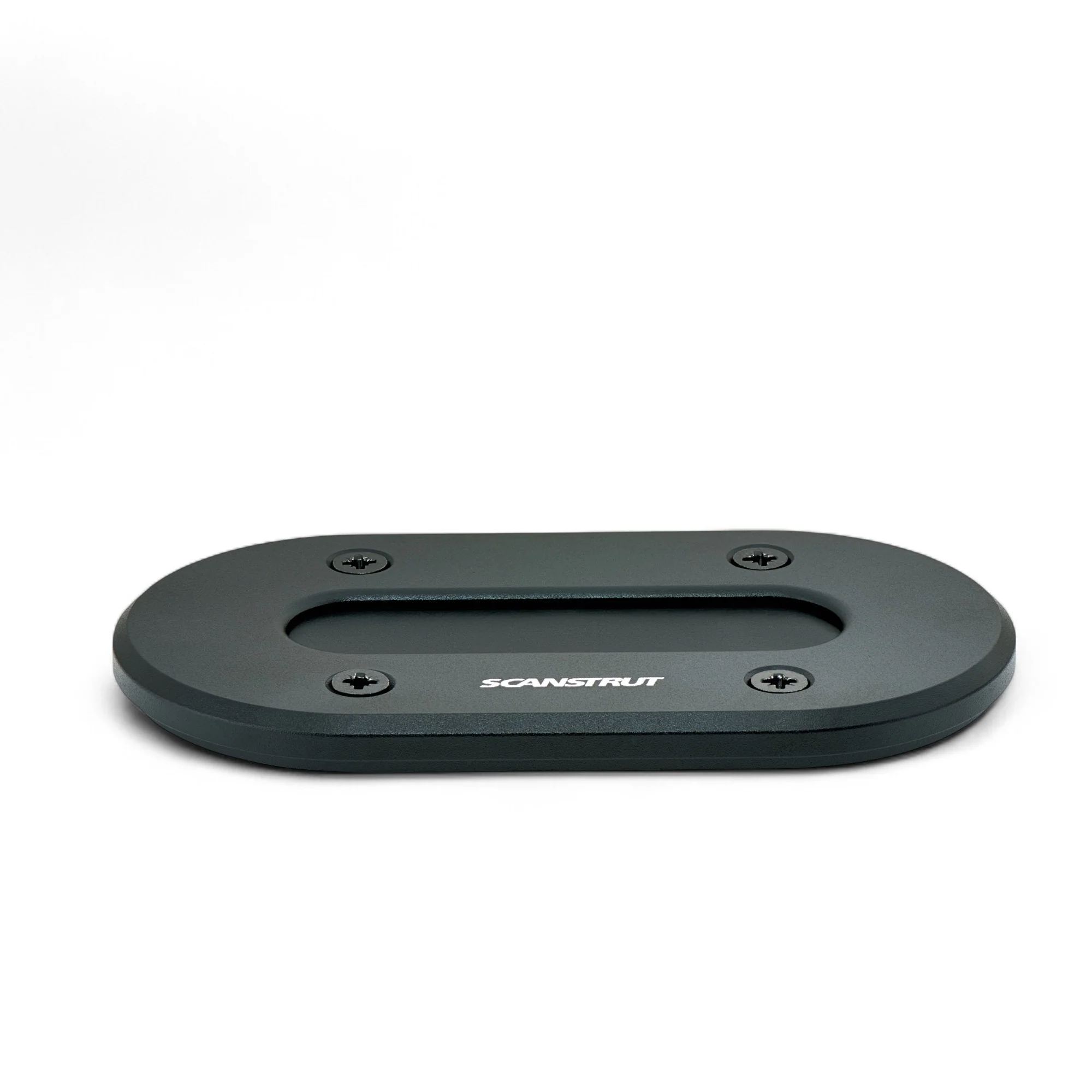

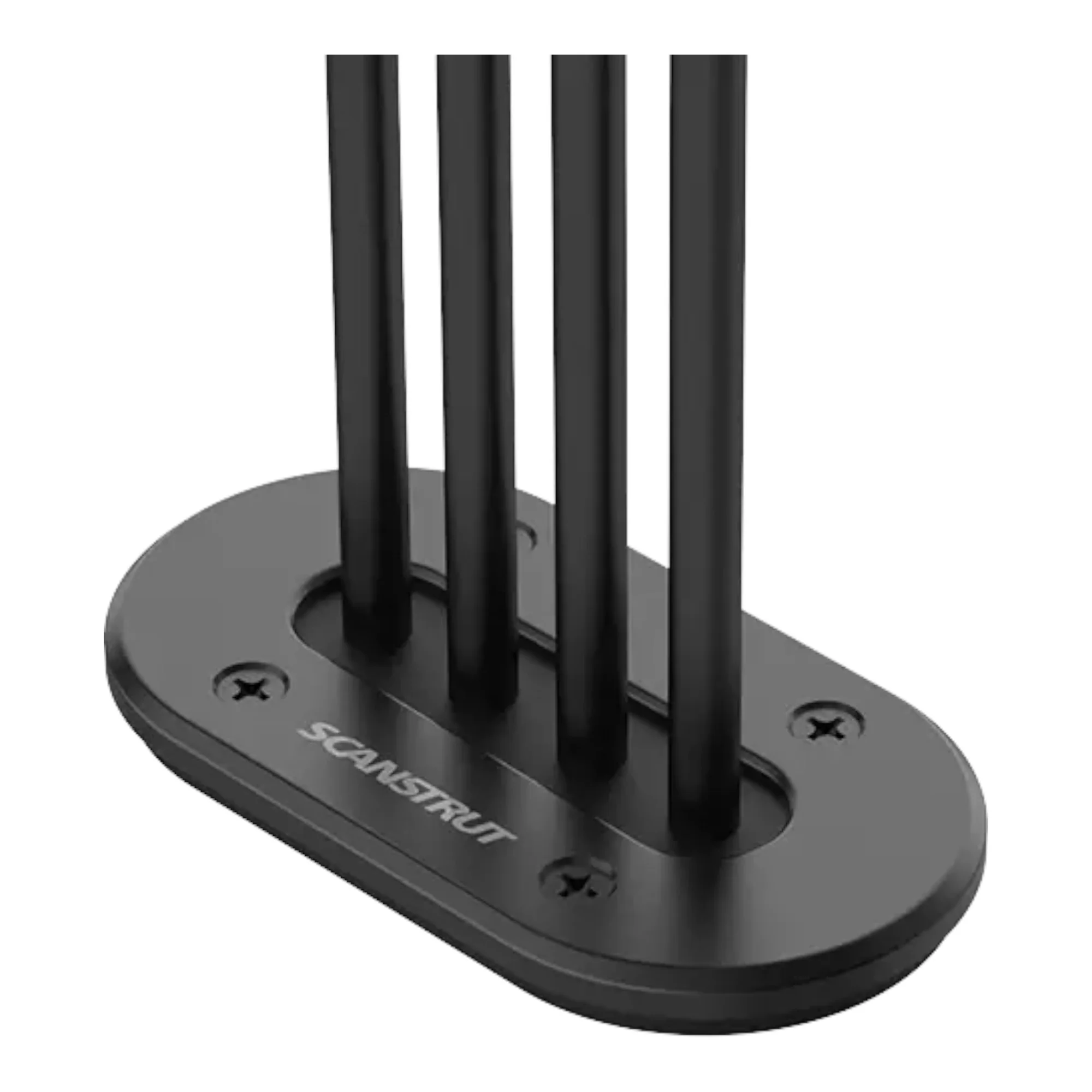

📝 Scanstrut DS-LP-MULTI-BLK Low Profile Multi Cable Seal
The Scanstrut DS-LP-MULTI-BLK Low Profile Multi Cable Seal provides a clean, professional solution for routing multiple cables through roofs, decks, and panels in campervans, caravans, RVs, and marine installations. Built from black anodised marine-grade aluminium, it offers excellent durability and corrosion resistance while maintaining a sleek low-profile appearance.
Designed to accommodate multiple cables up to 15mm, this cable seal provides IP68 waterproof protection, keeping your electrical installations safe from water and dust in demanding environments.
⭐ Essential Benefits
• Multi-cable entry design – route multiple cables through a single seal.
• Ultra low-profile construction – sits nearly flush for a clean installation finish.
• IP68 waterproof protection – protects wiring from water and dust ingress.
• Customisable sealing bung – drill holes to suit your exact cable configuration.
• Marine-grade aluminium housing – UV and corrosion resistant for outdoor installs.
⚙️ Functionality
The DS-LP-MULTI-BLK uses a drillable sealing bung and closed-cell foam base gasket to create a waterproof cable entry point. Multiple cables can be routed through the bung while maintaining a tight seal around each cable.
Its low-profile aluminium housing reduces roof height and improves aesthetics compared to traditional cable glands.
🔌 Compatibility
• Solar panel wiring
• Antennas and satellite cables
• Lighting and accessory wiring
• Campervans, caravans, RVs, and boats
• Off-grid power systems
🧰 Installation Difficulty
🟡 3/5 (Moderate) – requires drilling the bung to suit cable sizes and installing with a 35mm mounting hole.
🔍 Features
• Low-profile multi-cable seal
• Black anodised marine-grade aluminium construction
• Custom drillable sealing bung
• Closed-cell waterproof base gasket
• Captive nuts for repeat installations
• Stainless steel mounting hardware
• Designed for solar and electrical cable routing
📊 Specifications
| Specification | Detail |
|---|---|
| Model | DS-LP-MULTI-BLK |
| Material | Black anodised aluminium |
| Max Cable Diameter | 15mm |
| Max Connector Diameter | 18mm |
| Base Dimensions | approx 114mm × 70mm |
| Mounting Hole | 35mm |
| Height | approx 6.5–8.8mm |
| Waterproof Rating | IP68 |
📦 What’s Included
• 1 × Scanstrut DS-LP-MULTI-BLK Low Profile Cable Seal
• Closed-cell foam base gasket
• Blank drillable sealing bung
• Stainless steel mounting hardware
• Installation guide
🙌 Why Choose This Product?
The Scanstrut DS-LP-MULTI-BLK provides a sleek, low-profile solution for routing multiple cables through roofs and panels while maintaining reliable waterproof protection. Its marine-grade aluminium construction makes it ideal for campervan, caravan, and marine installations where durability and clean aesthetics matter.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid power and charging accessories.
