80 Amp Flush Mount DC Circuit Breaker

📝 80A Flush Mount DC Circuit Breaker

The 80A Flush Mount DC Circuit Breaker provides robust, waterproof protection for 12v–48v electrical systems. Perfect for campervans, RVs, and marine setups, it safeguards your system from overloads, short circuits, and other high-current events. Acting as both a circuit breaker and a battery disconnect switch, it allows you to safely maintain or charge your battery without removing cables.

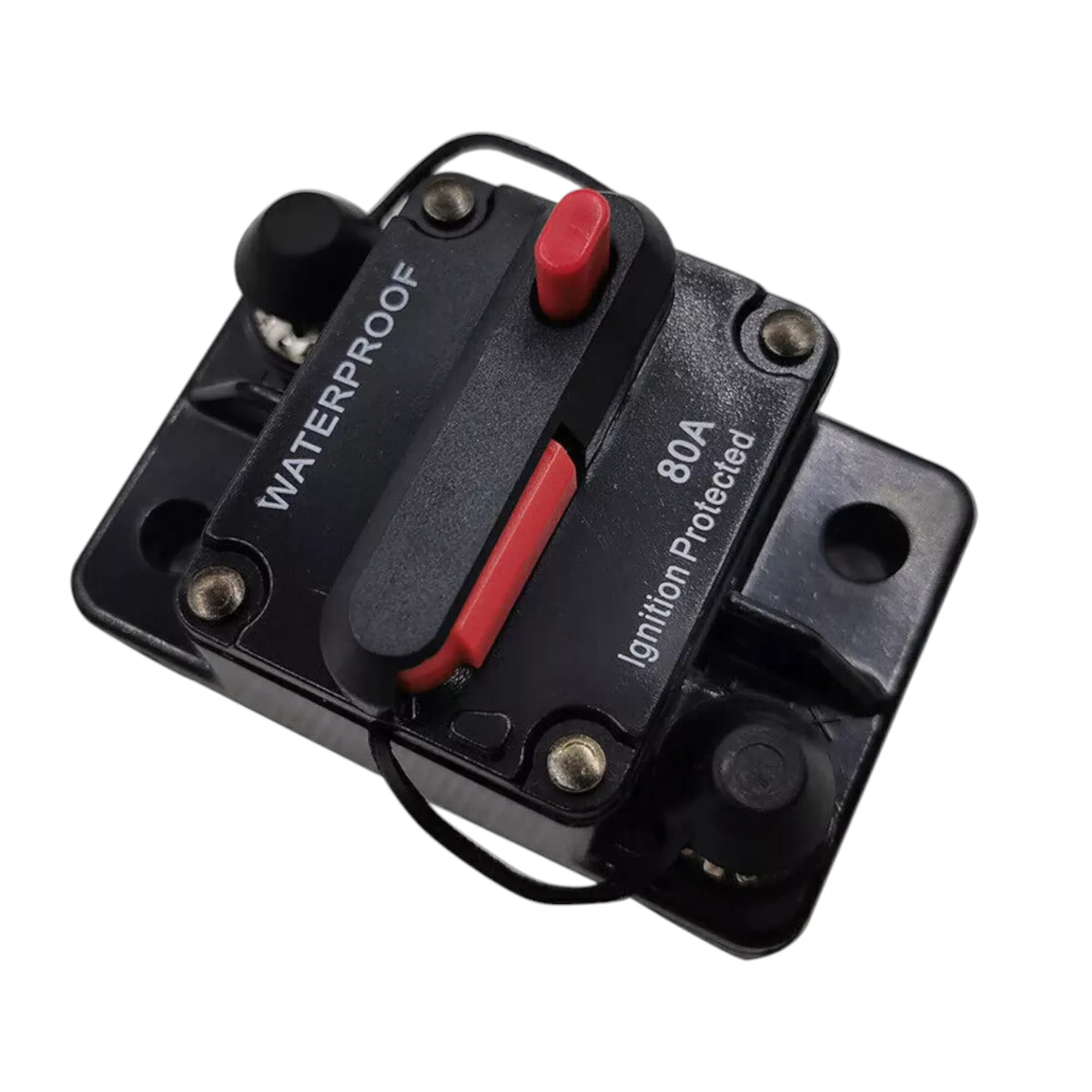

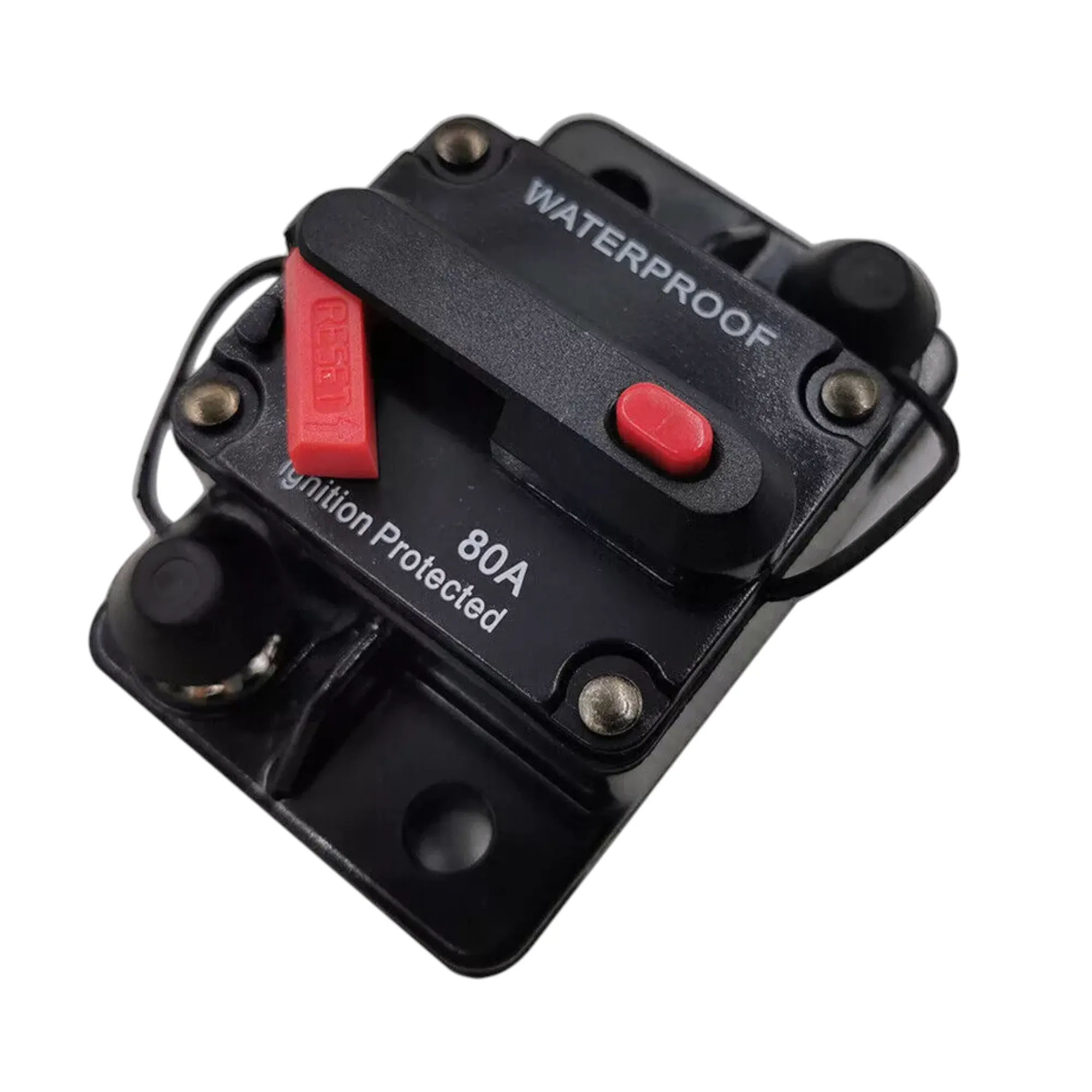

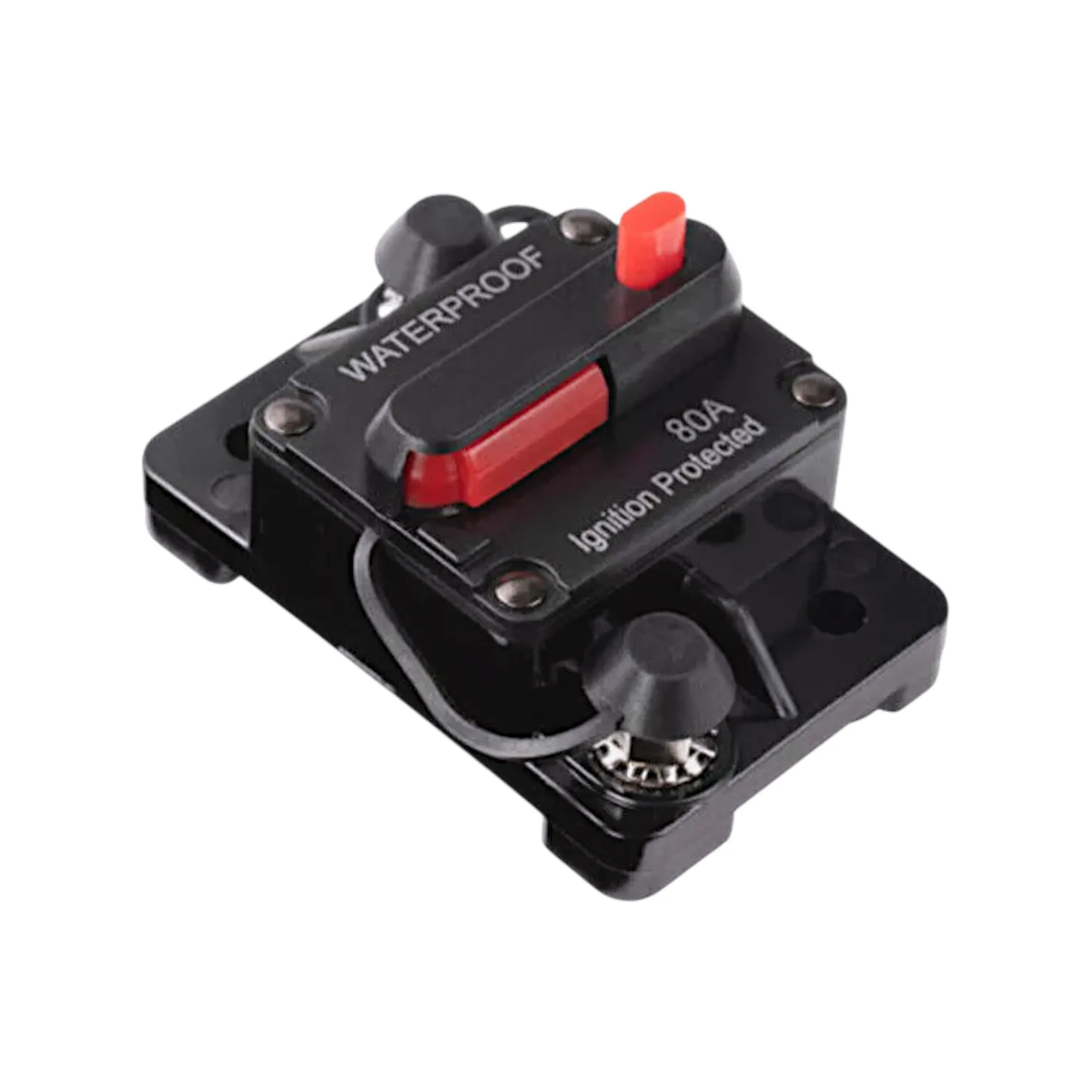

Featuring a solid waterproof housing, smooth on/off control, and high-performance copper terminals, this breaker delivers consistent, long-term reliability for off-grid and mobile power systems.

⭐ Essential Benefits

• Dual-purpose design – functions as both a circuit breaker and battery disconnect switch.
• Manual reset – visible reset lever and push-button for easy operation and quick diagnostics.
• 12v–48v compatibility – ideal for a wide range of DC system voltages.
• Durable construction – weather-resistant housing tested for electrical performance and longevity.
• Smooth operation – high-quality switch mechanism with stable on/off response.
• Copper internals – ensures efficient power transfer and corrosion resistance.
• Easy installation – includes 6 AWG, 1.4" wire lugs for convenient mounting.

⚙️ Functionality

This 80A flush-mount circuit breaker provides overload and short-circuit protection while serving as an easy-access battery isolator. With a manual push-button reset, it replaces inline fuse holders and offers instant power control during maintenance or storage. Ideal for auxiliary circuits, winches, amplifiers, and high-draw systems.

🔌 Compatibility

• Compatible with 12v–48v DC electrical systems
• Works in campervans, RVs, caravans, boats, and trucks
• Suitable for battery isolators, chargers, amplifiers, and auxiliary systems

🧰 Installation Difficulty

🟢 1/5 (Easy) – panel or firewall mount, installs in minutes.

🔍 Features

• Manual reset push-button operation
• Flush / panel mount design
• 80A current rating
• 12v–48v DC compatibility
• Copper internal terminals
• Weather-resistant IP67 housing
• Includes 6 AWG – 1.4" wire lugs

📊 Specifications

Specification	Detail
Current Rating	80A
Voltage Range	12v–48v DC
Type	Manual Reset Circuit Breaker
Mounting Type	Flush / Panel Mount
Ingress Protection	IP67
Material	Copper Terminals
Number of Poles	1
Applications	Campervan, RV, Boat, Trailer, Truck, Off-grid systems

📦 What’s Included

• 1 × 80A Flush Mount DC Circuit Breaker
• 1 × Set of 6 AWG Wire Lugs
