50A Red High Current DC Anderson Style Plug

📝 50A Red High Current DC Anderson Style Plug

The 50A Red High Current DC Anderson Style Plug provides a reliable, heavy-duty power connection for caravans, 4x4 vehicles, RVs, boats, solar setups, and off-grid systems. Built with a durable housing and silver-plated terminals, this plug ensures minimal voltage drop, secure engagement, and long-lasting performance in demanding environments.

⭐ Essential Benefits

• Strong, reliable connection – durable housing and silver-plated terminals ensure low resistance and high current transfer.
• Genderless design – each plug mates with another identical plug for simple, error-free connections.
• Fast connect/disconnect – smooth-action terminals and easy-grip housing support quick handling in mobile systems.
• Versatile application – ideal for caravans, 4x4s, marine, solar, and off-grid power distribution.
• Stainless locking springs – ensure firm mechanical engagement even under vibration or movement.
• Color-coded system – keyed housings prevent mismatching and ensure correct color-to-color pairing.

⚙️ Functionality

This Anderson style plug uses flat wiping contacts for consistent, low-resistance engagement under high load. Its genderless housing allows identical connectors to mate together, simplifying wiring layouts and reducing installation complexity. Silver-plated copper contacts maximise conductivity, while the stainless steel spring mechanism maintains secure retention under vibration, movement, and outdoor conditions.

🔌 Compatibility

• Works with matching color-keyed 50A Anderson style connectors
• Suitable for 12v and 24v DC systems
• Accepts cable sizes up to approx 6AWG
• Ideal for battery links, solar feeds, fridges, compressors, chargers, inverters, and portable power systems

🧰 Installation Difficulty

🟢 1/5 (Easy)
Crimp the cable to the supplied contacts, insert the terminals until locked, and connect to a matching keyed plug.

🔍 Features

• 50A high-current rating
• Silver-plated copper contacts
• Polycarbonate housing
• Genderless keyed connector design
• Stainless steel locking springs
• Color-coded (Red)

📊 Specifications

Specification	Detail
Current Rating	50A DC
Housing Color	Red
Contact Material	Silver-Plated Copper
Connector Type	Anderson Style SB50-Type
Cable Size	Up to Approx 6AWG
Locking Method	Stainless Spring Retention

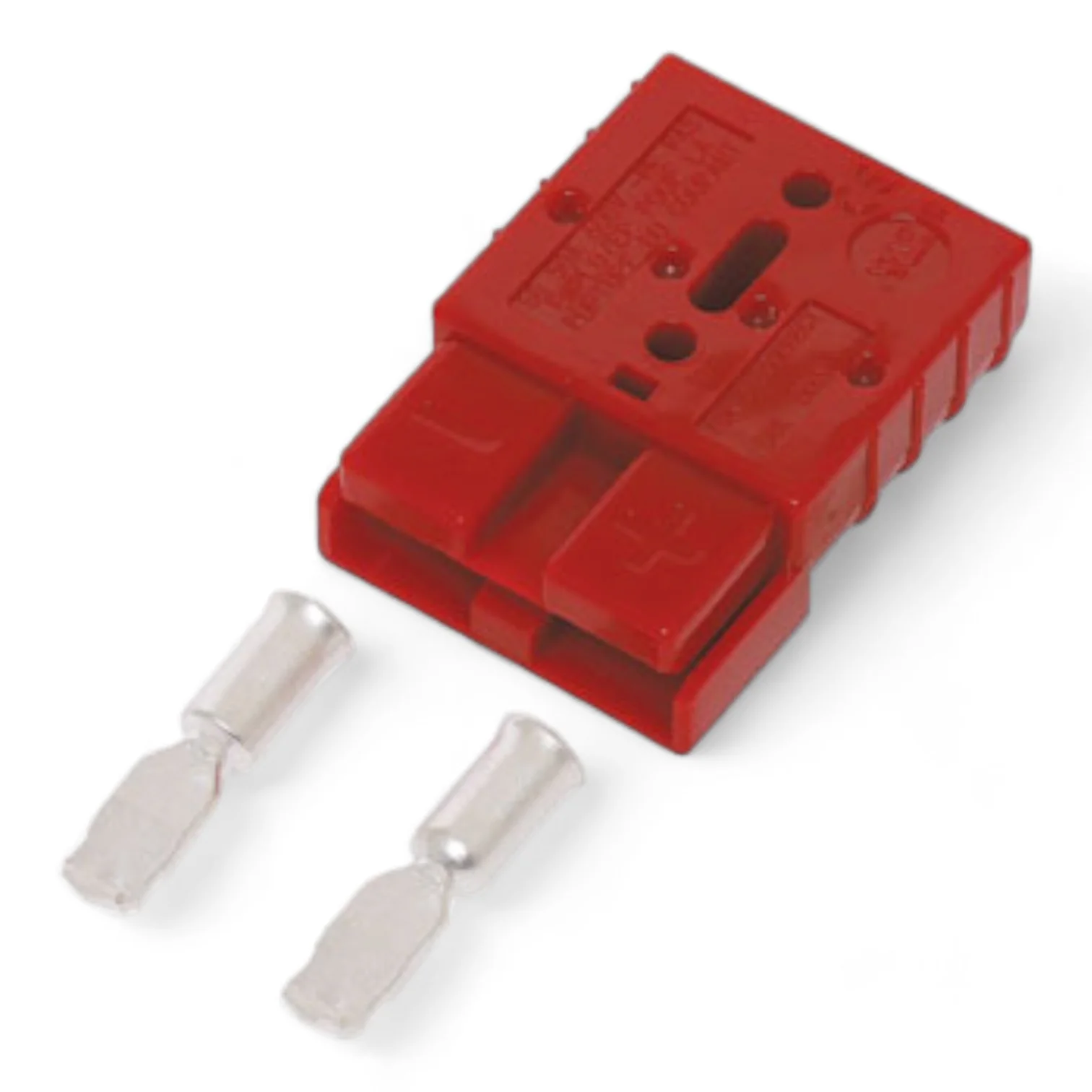

📦 What’s Included

• 1 × Red Anderson Style Housing
• 2 × Silver-Plated Contacts

🙌 Why Choose This Product?

This 50A Anderson Style Plug delivers dependable, low-loss DC connectivity for automotive, off-grid, marine, and solar applications. With rugged keyed housing, silver-plated terminals, and vibration-resistant locking, it provides a reliable, professional-grade solution for high-current 12v and 24v systems.
