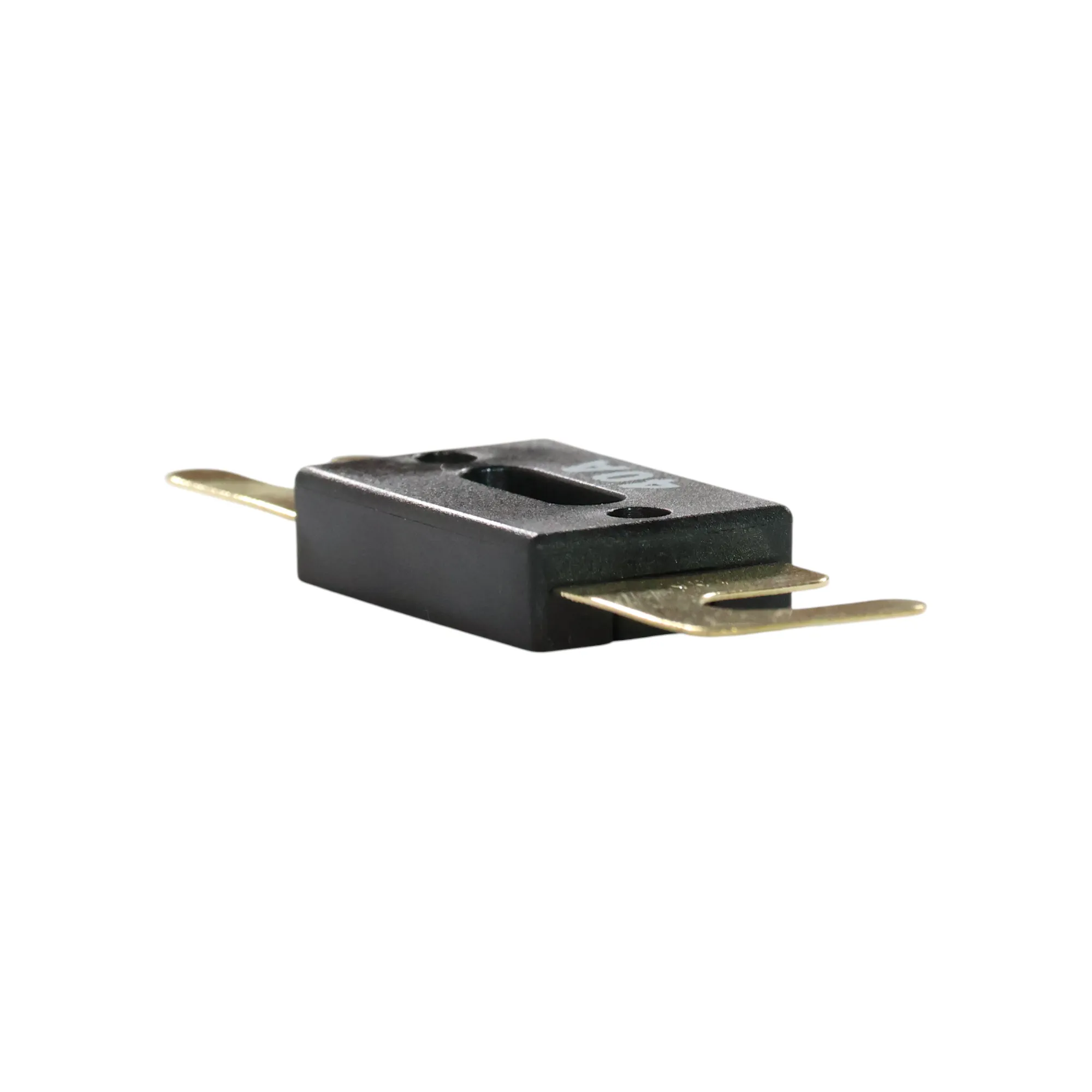

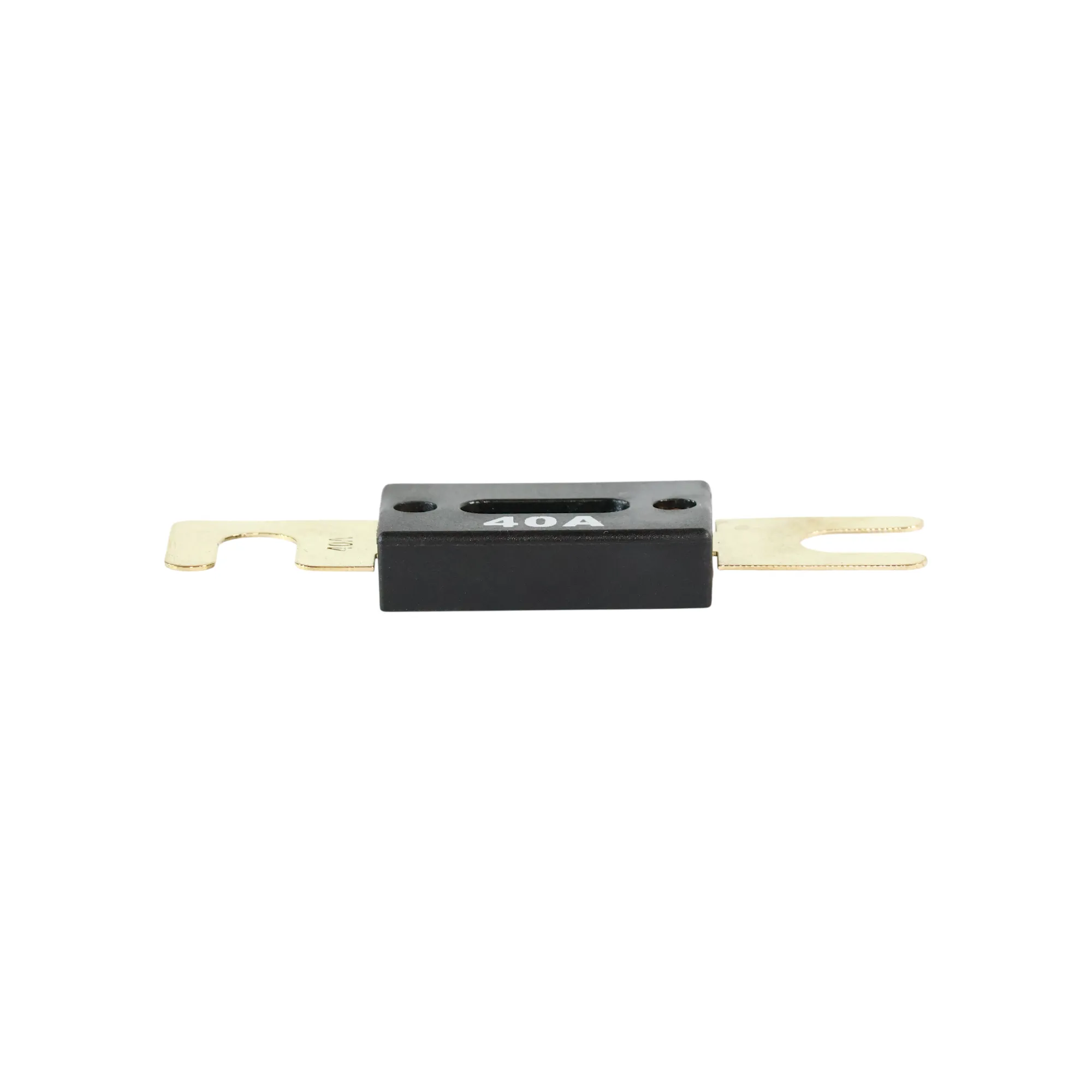

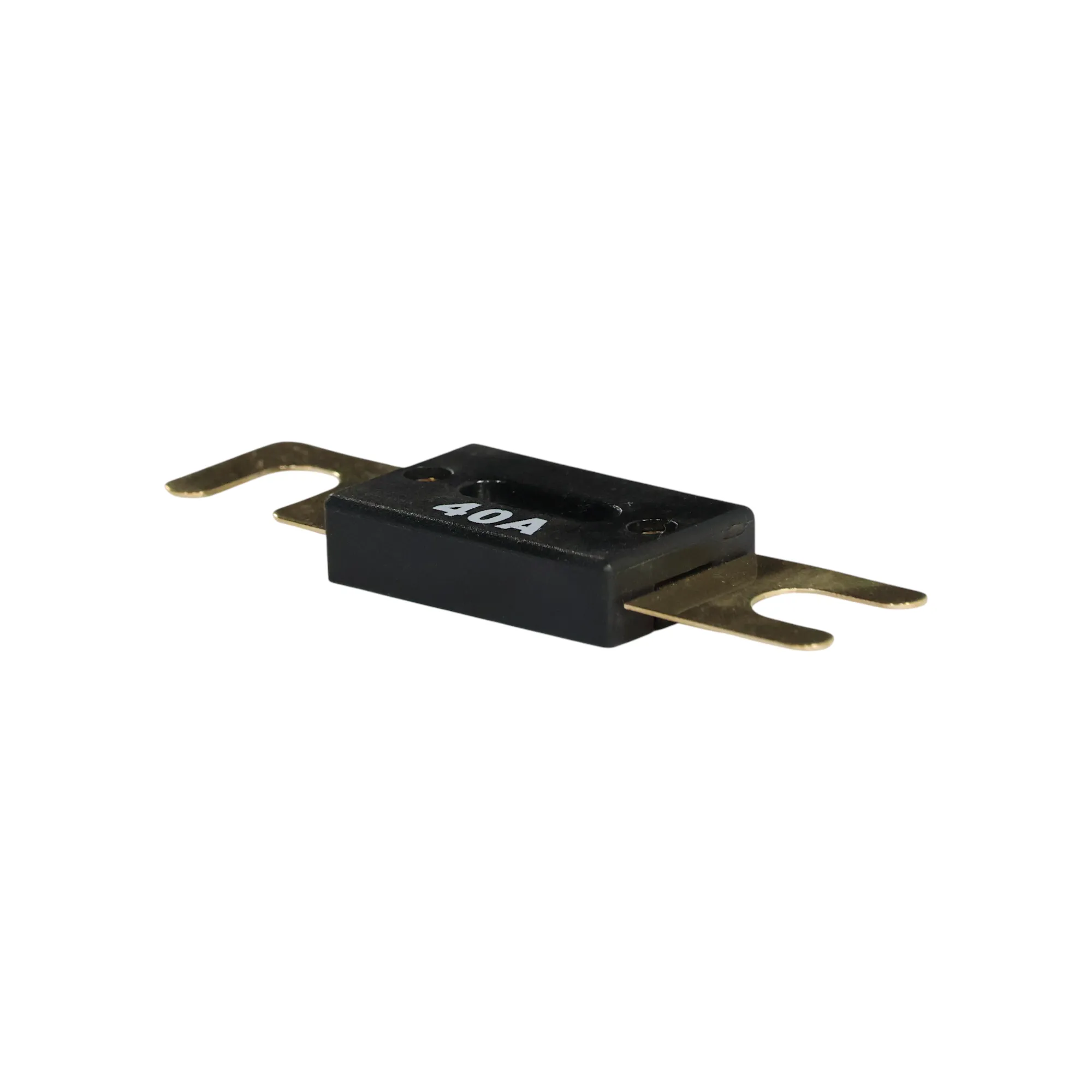

40A - ANL Fuse
📝 40A – ANL Fuse (12–24v)
The 40A ANL Fuse delivers reliable high-current circuit protection for 12v and 24v electrical systems, with a maximum voltage rating of 32v. Designed for secure bolt-on installation, ANL fuses are widely used in automotive, marine, caravan, and off-grid applications where stable current limitation and dependable protection are essential.
Built for performance and durability, this fuse provides effective overcurrent protection while maintaining low resistance and consistent electrical conductivity.
⭐ Essential Benefits
• 40 amp rating – ideal for medium-current supply and accessory circuits
• Suitable for 12v–24v systems – rated for maximum 32v operation
• High breaking capability – provides dependable protection during overcurrent events
• Bolt-on design – secure, vibration-resistant installation
• Low resistance construction – minimises voltage drop and heat build-up
• Wide amperage range available – part of a full ANL range from 40A to 500A
⚙️ Functionality
The ANL fuse protects circuits by interrupting power when current exceeds 40 amps, helping safeguard wiring, battery banks, and connected equipment from overload or short circuit conditions. Its bolt-on, slide-on/off design allows for straightforward installation and efficient maintenance.
🔌 Applications
• Automotive and 4WD electrical systems
• Caravan and RV power distribution
• Marine battery banks
• Off-grid solar and lithium battery installations
• High-current 12v and 24v circuits
📊 Specifications
| Specification | Details |
|---|---|
| Fuse Type | ANL |
| Rated Current | 40A |
| Maximum Voltage | 32v |
| System Compatibility | 12v / 24v |
| Approx Dimensions | 80mm L × 20mm W × 9mm H |
| Mounting | Bolt-on |
📦 What’s Included
• 1 × 40A ANL fuse
🙌 Why Choose This Product
The 40A ANL fuse provides dependable protection for medium-current circuits while maintaining a simple, secure installation format. A trusted solution for clean, professional electrical builds across touring, marine, and off-grid systems.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
