2 Zone PF1-2 Wireless Remote Switch and Dimmer

📝 2 Zone PF1-2 Wireless Remote Switch & Dimmer

The PF1-2 Wireless Remote Switch gives you smooth, reliable control of two independent lighting zones, making it a perfect upgrade for vans, RVs, cabins, home interiors, and custom builds. With easy installation, long-range RF control, and precise dimming, it delivers clean, modern lighting control without any wiring.

---

⭐ Essential Benefits

• Two-zone control – independently adjust brightness or switch lights on/off in two separate areas.
• Easy installation – mount using screws or the included adhesive pad—no wiring needed.
• Reliable 2.4GHz RF signal – control lights from up to 30m away in open spaces.
• Battery powered – long-life CR2032 cell with ultra-low standby draw.
• Smooth dimming – 10-step short-press dimming or 256-level long-press fine adjustment.
• Scene memory – saves your previous brightness settings for instant recall.
• Built for indoor use – operates from –30°C to +55°C with IP20 dry-area rating.
• Sleek, compact design – blends seamlessly into any interior environment.

---

⚙️ Functionality

The PF1-2 uses a stable 2.4GHz RF signal to communicate with compatible LED dimming controllers, giving you precise wireless control across two separate lighting zones. Each zone can be adjusted independently, ideal for setups such as:

• Ceiling + cabinet lighting
• Bed lights + main lights
• Front + rear zones in a campervan
• Cabin + bathroom lighting

Short presses adjust brightness in clean 10% steps, while long presses provide ultra-smooth 256-step dimming for perfect lighting levels. The built-in memory saves your last-used scene for instant access.

---

🔌 Compatibility

• 2.4GHz RF LED dimming receivers
• 12v/24v single-colour LED lighting
• Campervans, RVs, caravans, boats, tiny homes, cabins
• Any indoor lighting requiring wireless 2-zone dimming

---

🧰 Installation Difficulty

🟢 1/5 (Easy) – Stick or screw into place, pair with receiver, and you're ready to go.

---

🔍 Features

• Dual-zone wireless lighting control
• 2.4GHz RF signal, 30m range
• Short-press 10-step dimming
• Long-press 256-level dimming
• Scene memory and quick recall
• CR2032 battery powered
• Low standby current (<2μA)
• ABS housing with clean, modern appearance
• Wall-mount or adhesive install

---

📊 Specifications

Specification	Detail
Working Voltage	3V DC (CR2032 Battery)
Standby Current	<2μA
Remote Distance	Up to 30m (open area)
Signal Type	2.4GHz RF
Dimming Range	0–100%
Dimming Steps	10-step or 256-step
Zones	2 independent zones
Operating Temp	–30°C to +55°C
IP Rating	IP20
Installation	Screw or adhesive mount

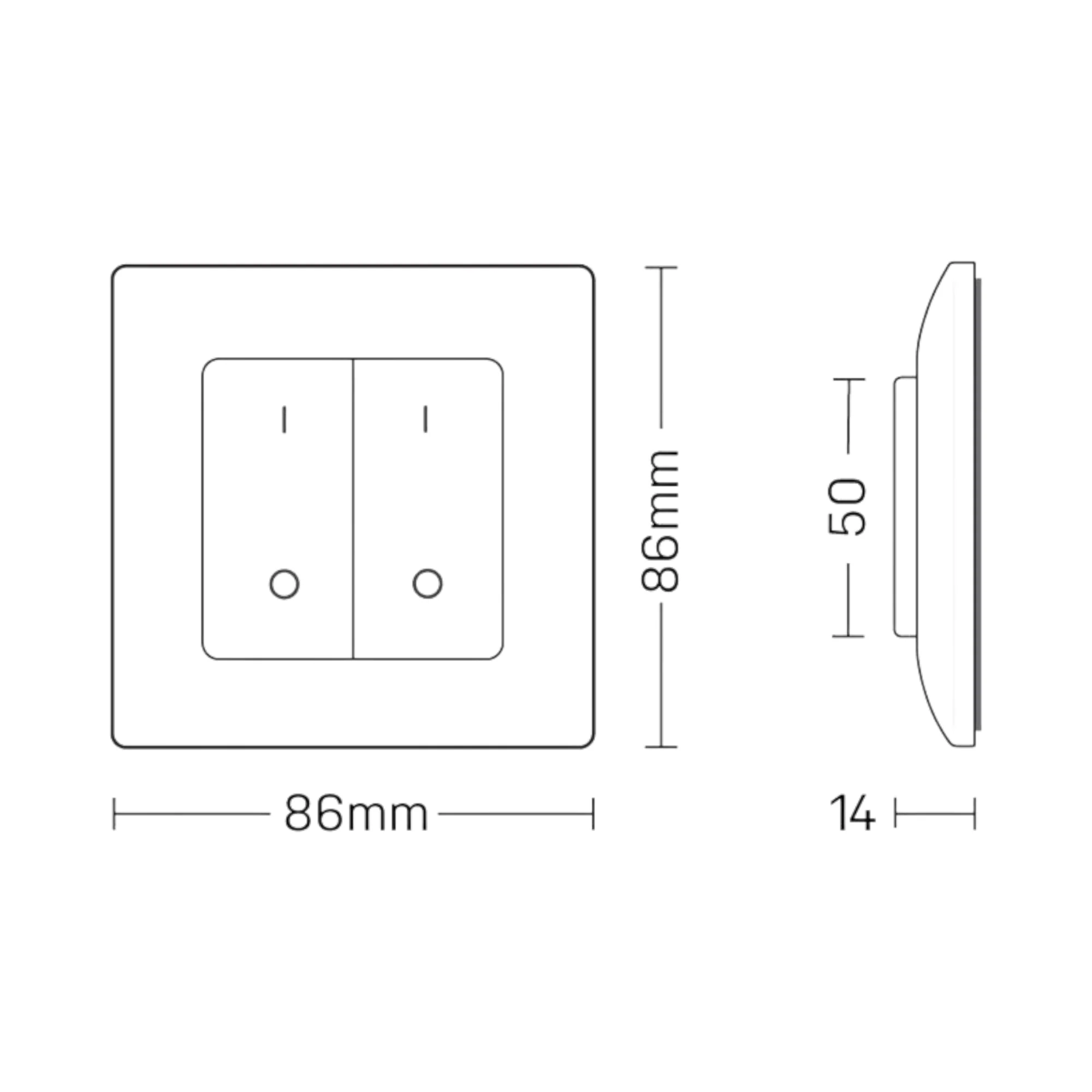

Dimensions	86 × 86 mm
Net Weight	57g

---

📦 What’s Included

• 1 × PF1-2 Wireless Remote Switch
• Mounting screws
• Adhesive mounting pad

---

🙌 Why Choose This Product?

The PF1-2 gives you true two-zone dimming with clean installation and reliable wireless performance. Whether you're building a campervan, upgrading RV lighting, or adding flexible lighting control to a room or workspace, this remote delivers smooth dimming, long-range control, and easy setup with no wiring required.

---

🚀 OUR PROMISE

Order today for same-day dispatch and explore our full range of off-grid lighting and electrical accessories.
