2 - 1 Y Branch Solar MC4 Connectors (Pair)
📝 2-to-1 Y-Branch Solar MC4 Connectors (Pair)
Maximise your solar array capacity with these 2-to-1 MC4 Y-Branch Connectors, designed for safely paralleling two solar panels into one circuit. Perfect for campervans, RVs, 4WD canopies, tiny homes and off-grid power systems, these connectors offer reliable outdoor performance with a true 30A maximum rating and long-life weatherproof construction.
⭐ Essential Benefits
• True 30A rating – Maximum current capacity supported by MC4 standards.
• Parallel two panels easily – 2-in-1 Y-branch configuration for simple expansion.
• Sold as a matched pair – Includes 1 × male-to-2-female & 1 × female-to-2-male connector.
• IP67 waterproof & dustproof – Double-seal design for harsh outdoor environments.
• UV and heat resistant – Built from tough XLPE/PPO materials for long service life.
• Plug-and-play installation – Secure snap-lock fitting ensures a stable, reliable connection.
⚙️ Functionality
These connectors allow two solar panels to be wired in parallel, increasing system amperage while maintaining the same voltage. Their rugged, weather-resistant bodies and positive locking mechanism deliver a safe, long-lasting connection designed for demanding off-grid installations.
🔌 Compatibility
• All MC4-style solar panels
• 4–6mm² double-insulated PV cable
• 12v / 24v / 48v solar systems
• Campervans, RVs, caravans
• Marine, 4WD canopy & portable solar setups
• Off-grid homes, sheds & cabins
🧰 Installation Difficulty
🟢 1/5 (Easy) – Plug-and-play with secure locking tabs.
🔍 Features
• Supports two-panel parallel wiring
• 30A current capability
• IP67 waterproof sealing
• UV-stable, flame-retardant body
• XLPE/PPO high-durability construction
• Wide –40°C to +90°C temp tolerance
• Anti-release locking system
📊 Specifications
| Specification | Detail |
|---|---|
| Maximum Current | 30A |
| Wire Gauge | 10 AWG (6mm²) |
| Rated Voltage | DC 1.8kV / AC 0.6–1kV |
| Waterproof Rating | IP67 |
| Operating Temperature | –40°C to +90°C |
| Fire Rating | UL2556 VW-1 |
| Material | UV-resistant XLPE/PPO |
📦 What’s Included

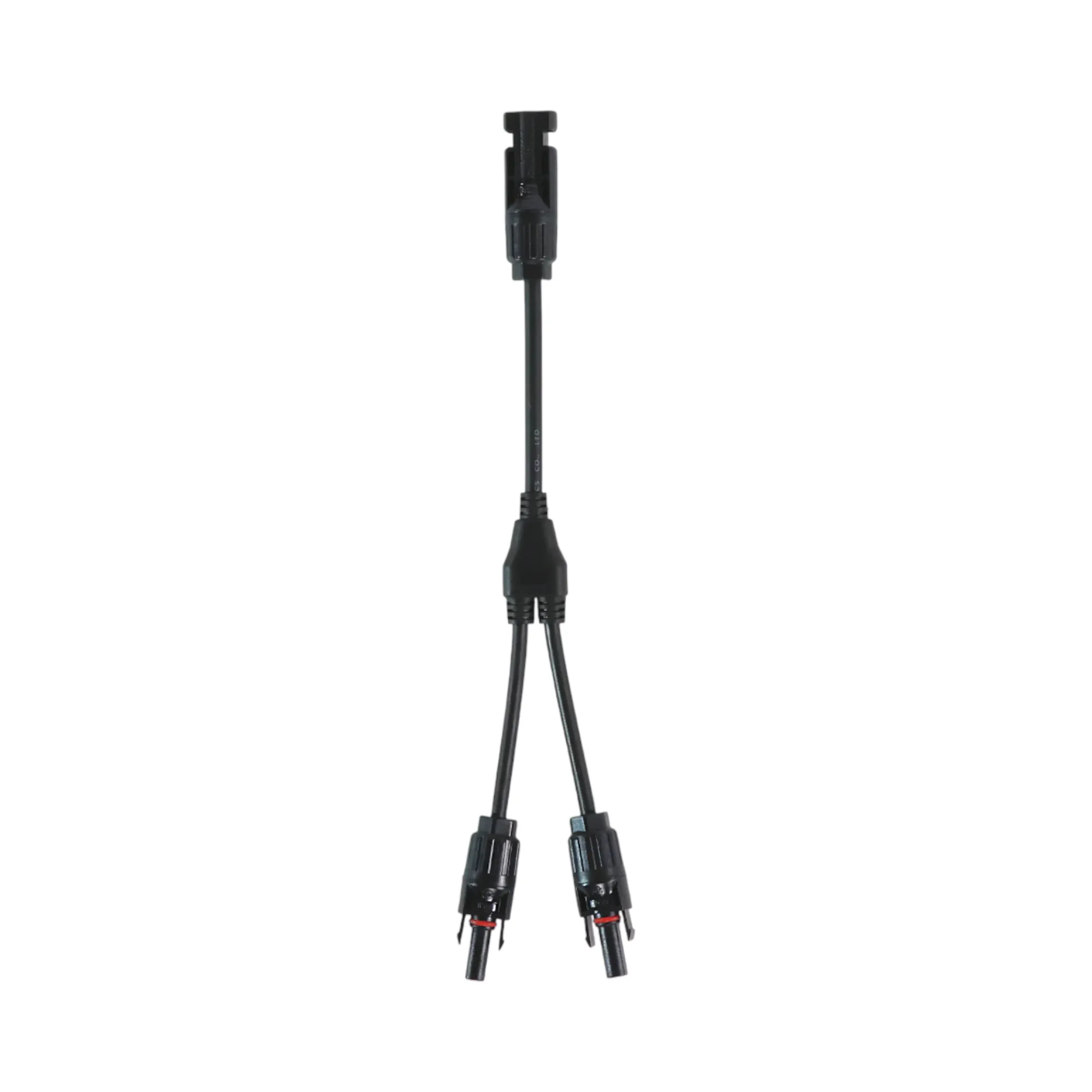

• 1 × Male-to-2-Female MC4 Y-Branch

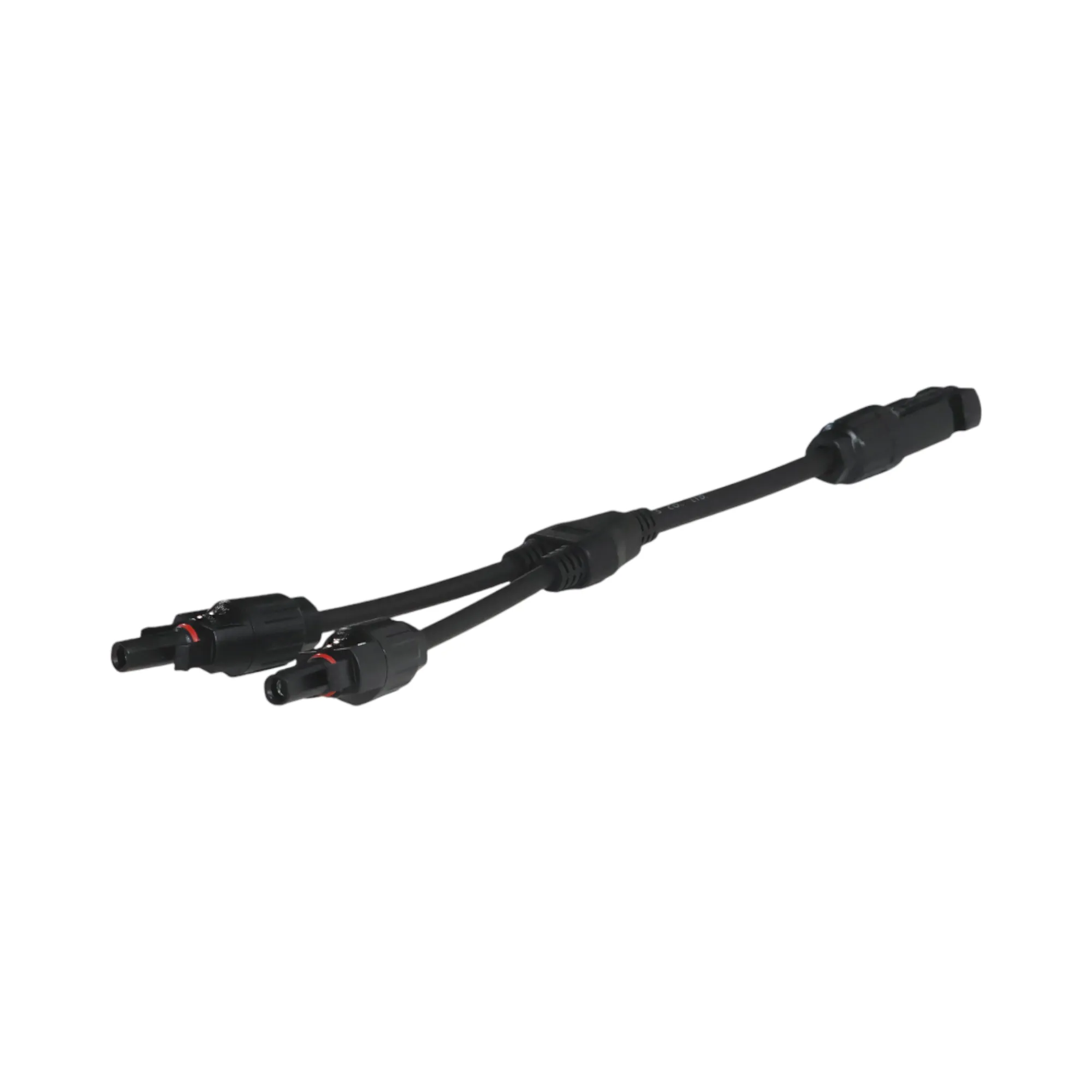

• 1 × Female-to-2-Male MC4 Y-Branch
🙌 Why Choose This Product?
These 2-to-1 MC4 branch connectors offer a rugged, high-capacity solution for expanding your solar array. With a genuine 30A rating, weatherproof construction and simple installation, they’re ideal for vans, RVs, boats and outdoor off-grid solar systems requiring safe, long-term reliability.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid solar and electrical accessories.
