📝 Modular AMI/MIDI Stackable Fuse Holder (1–6)

This modular AMI/MIDI fuse holder system provides scalable, high-current primary fusing for demanding 12–24V DC installations. Each module locks together to create a clean, professional, buss-linked distribution block — from 1 to 6 fused circuits — all fed from a single M8 input stud. Designed for harsh environments and under-bonnet installs, it delivers reliable protection for marine, 4WD, RV, caravan, heavy-vehicle and industrial systems.

⭐ Essential Benefits

• Stackable modular design – Configure 1 to 6 fused circuits from a single input.
• High-current capability – Each module rated to 200A, with up to 400A continuous combined when bussed.
• Single-input busbar – Efficient power distribution using one M8 primary feed.
• Rugged construction – Built from high-temperature, wear-resistant thermoplastic.
• Splash-resistant protection – Removable cover shields fuses and studs from moisture and debris.
• Universal MIDI/AMI compatibility – Supports all industry-standard MIDI/AMI fuses.

⚙️ Functionality

Each module includes a stainless-steel M5 fuse stud pair and interlocking housing design, allowing modules to be stacked side-by-side. When joined, the internal busbar links the modules, distributing power from a single M8 input terminal to multiple fused outputs. This allows clean, scalable fusing for DC-DC chargers, inverters, compressors, auxiliary batteries, distribution panels and high-current accessories.

🔌 Compatibility

• Works with 12v & 24v DC systems
• Accepts MIDI / AMI high-current fuses
• Ideal for boats, marine engine bays, 4WDs, campervans, RVs, industrial and agricultural systems
• Suitable for under-hood and harsh-environment installations

🧰 Installation Difficulty

🟢 2/5 (Easy)
Surface-mount installation with standard M8 feed and M5 fuse stud wiring.

🔍 Features

• Stackable 1–6 modular design
• M8 stainless input stud
• M5 stainless fuse studs
• High-temperature UL-94V0 housing
• Red EPDM/Santoprene splash-resistant cover
• Interlocking housing system
• Up to 400A total continuous when stacked
• Wear-resistant, sturdy, high-durability construction

📊 Specifications

Specification	Value
Max Voltage	32V DC
Fuse Type	AMI / MIDI
Module Rating	200A each
Combined Rating	Up to 400A continuous
Temperature Range	-40°C to 85°C
Input Stud	M8 stainless steel
Fuse Studs	M5 stainless steel
Housing Material	HTN UL-94V0 thermoplastic
Cover Material	Red EPDM/Santoprene
Dimensions (single module)	80 × 35 × 28mm (approx)
Mounting Hole Spacing	70mm (approx)

📦 What’s Included

• 1 × Selected Variant of Modular AMI/MIDI fuse holder
(Stack additional units as required — fuses not included)

🙌 Why Choose This Product?

This modular MIDI/AMI fuse holder provides the ultimate scalable fusing solution. Whether you need a single primary fuse or an expanding 6-way distribution system, it delivers rugged reliability, high-current capacity and a compact footprint ideal for modern 12–24V builds.

🚀 Our Promise

Order today for same-day dispatch and enjoy clean, reliable high-current protection for your next electrical installation.

Electrical Distribution

Modular Fuse Holder for AMI/MIDI fuses - Stackable 1/2/3/4/5/6

Twin Terminal MRBF Fuse Block + Dust Cover

8-Slot LED Indicator Blade Fuse Block

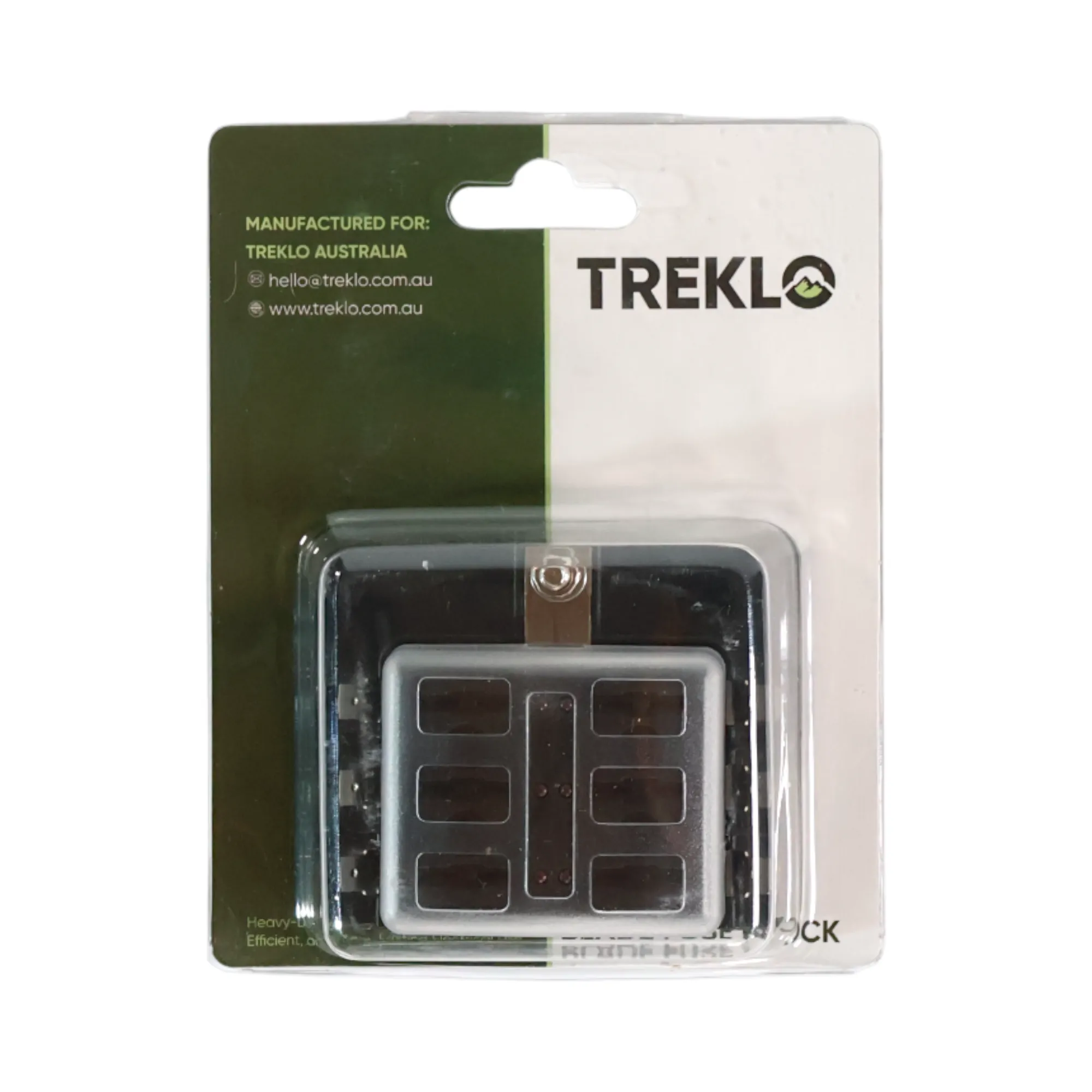

6-Slot LED Indicator Blade Fuse Block

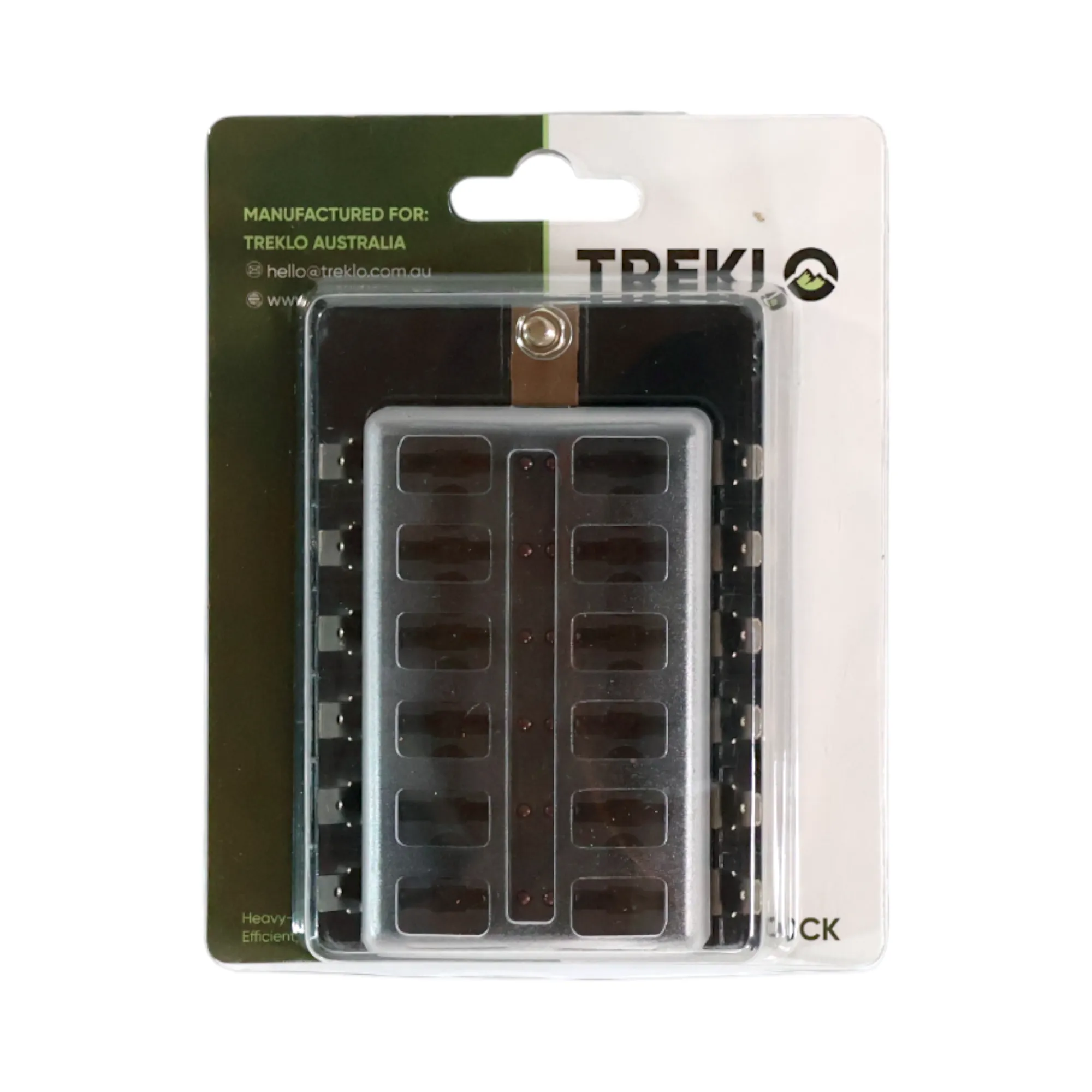

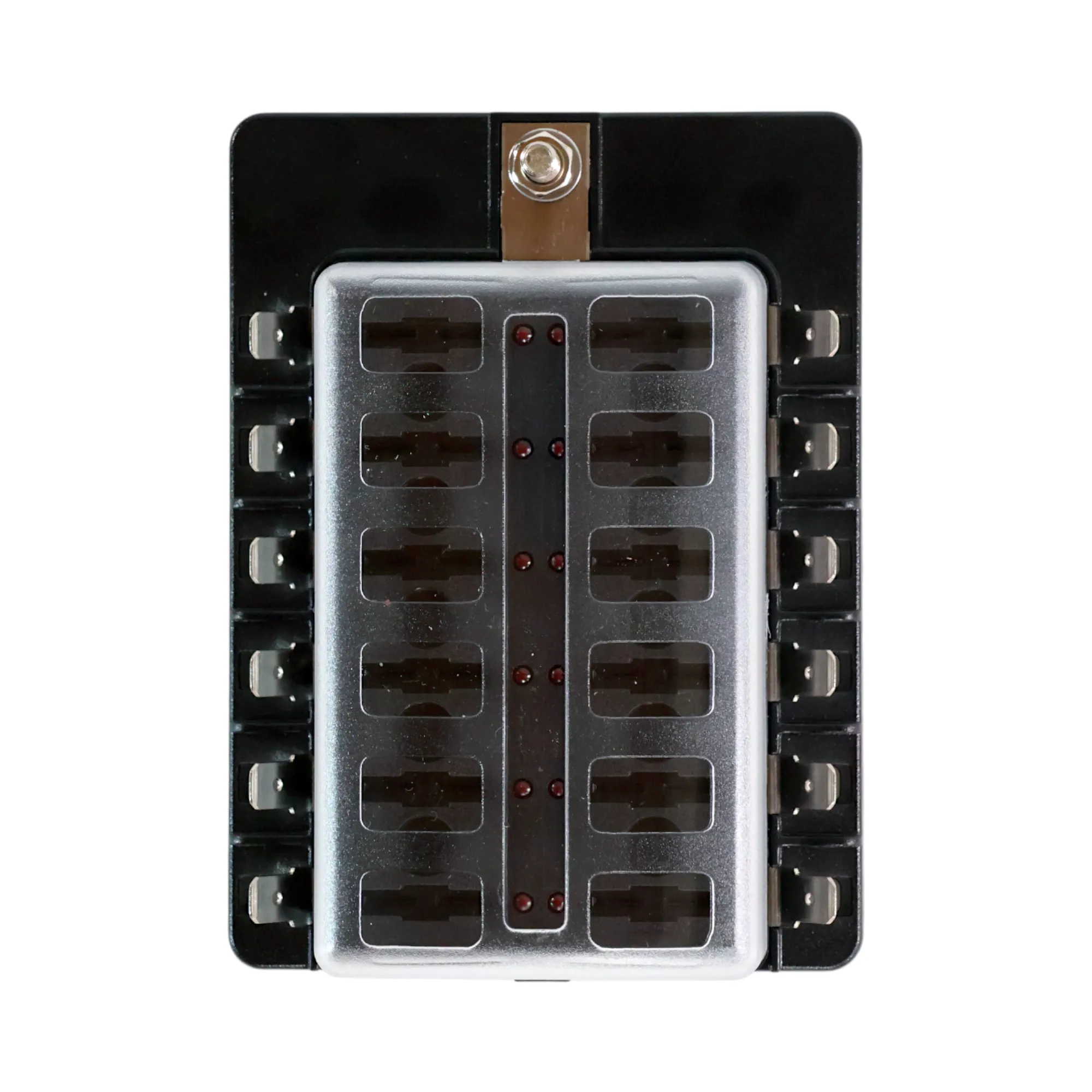

12-Slot LED Indicator Blade Fuse Block

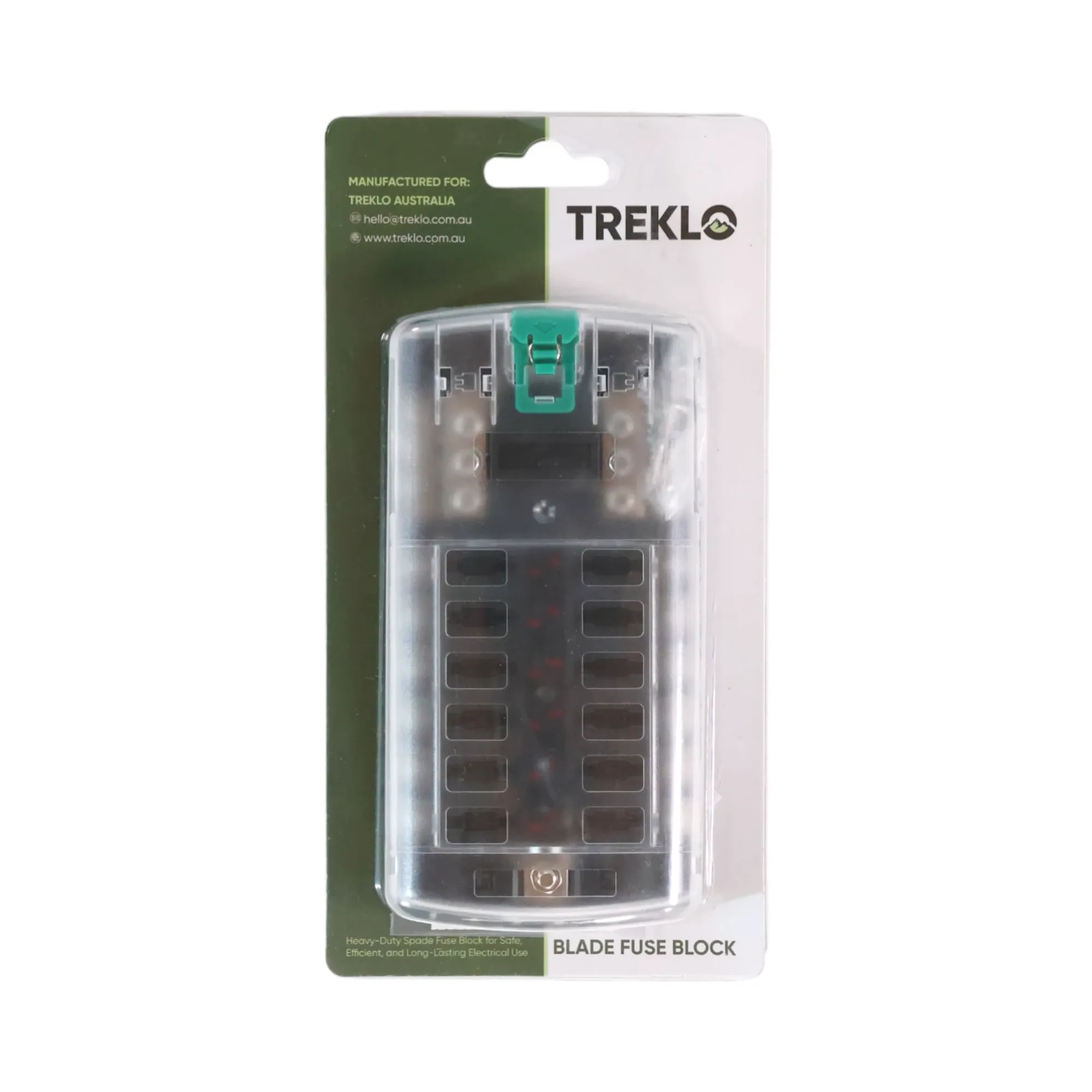

12 Point Blade Fuse Positive and Negative Block

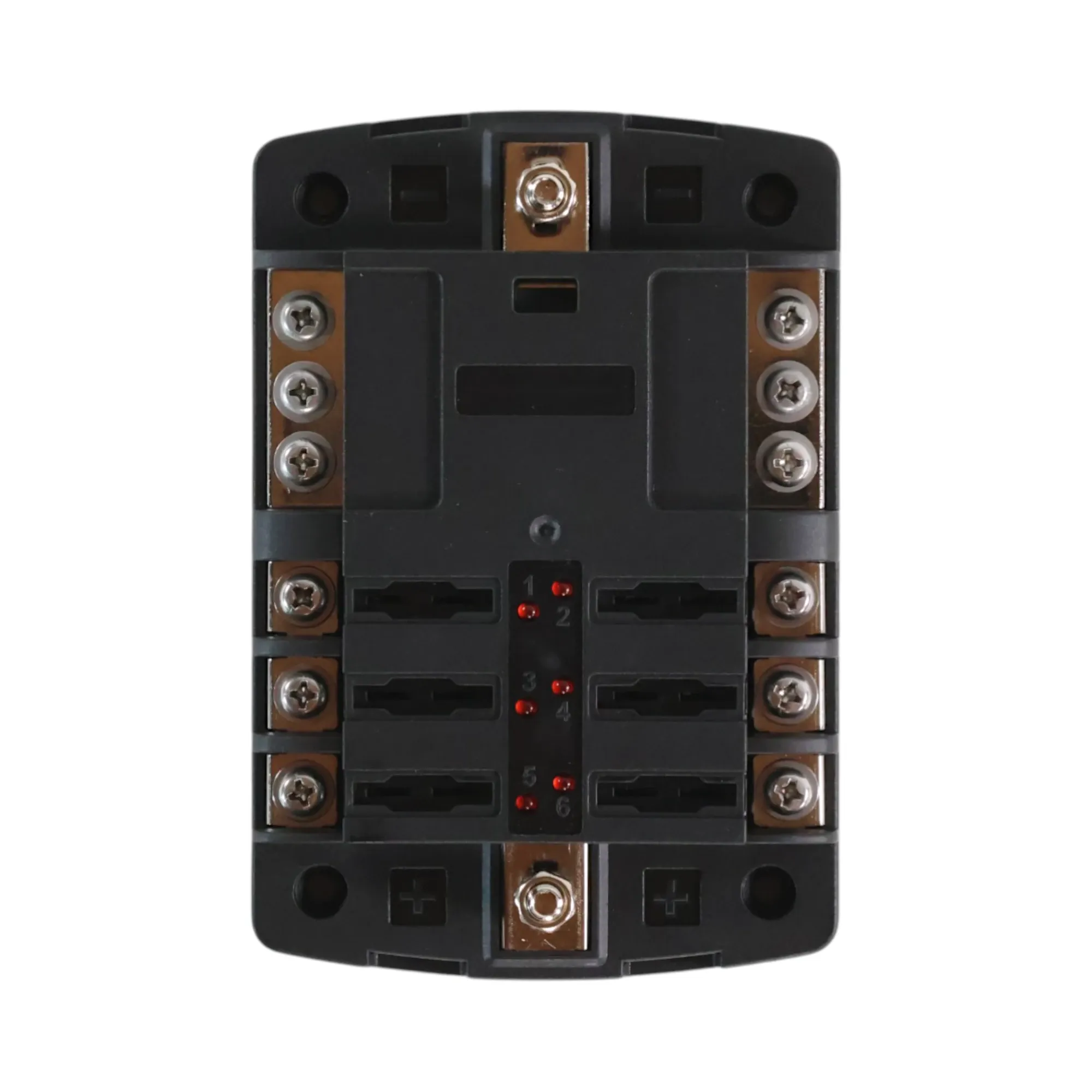

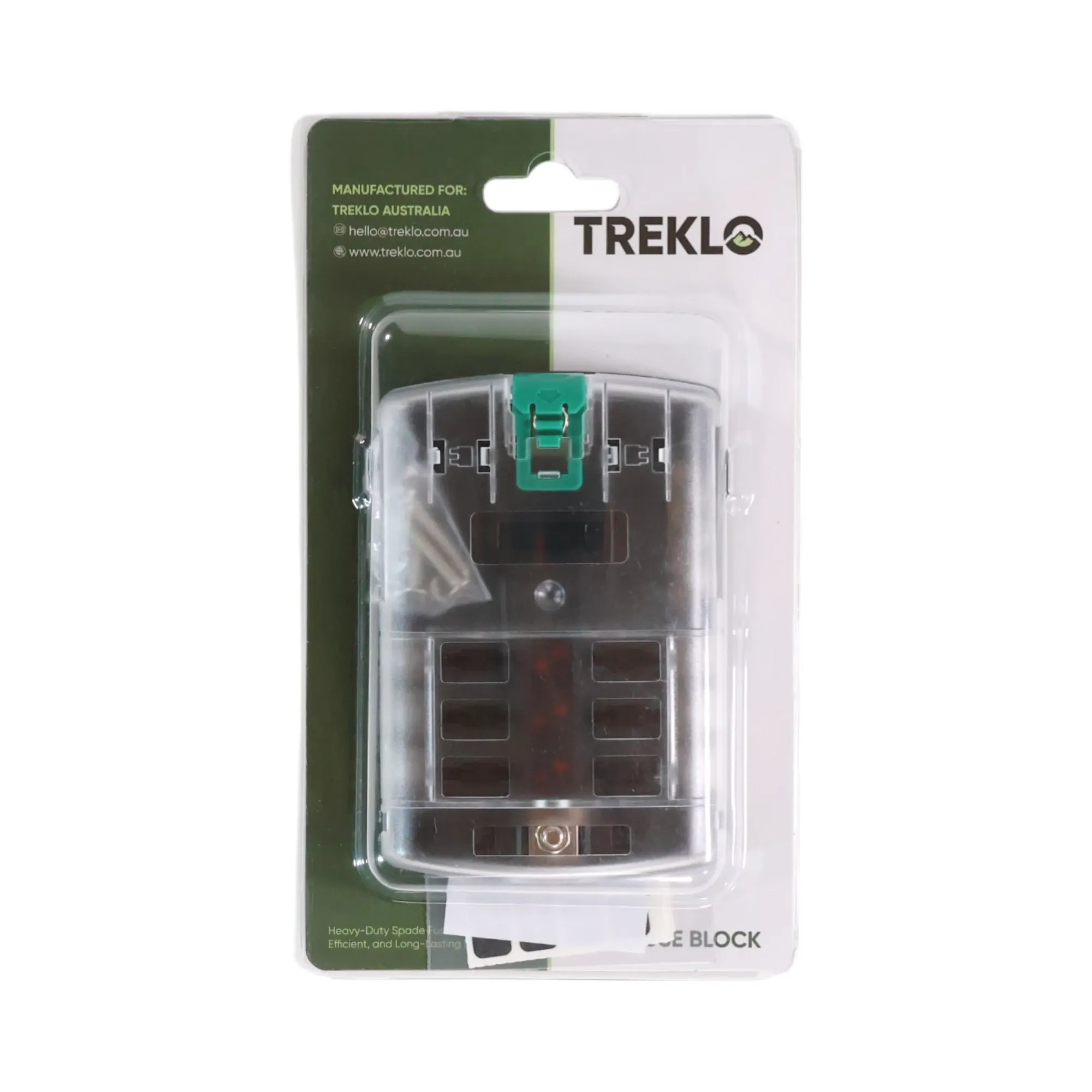

6 Point Blade Fuse Positive and Negative Block
